VERITAS NetBackup 5340 User Manual

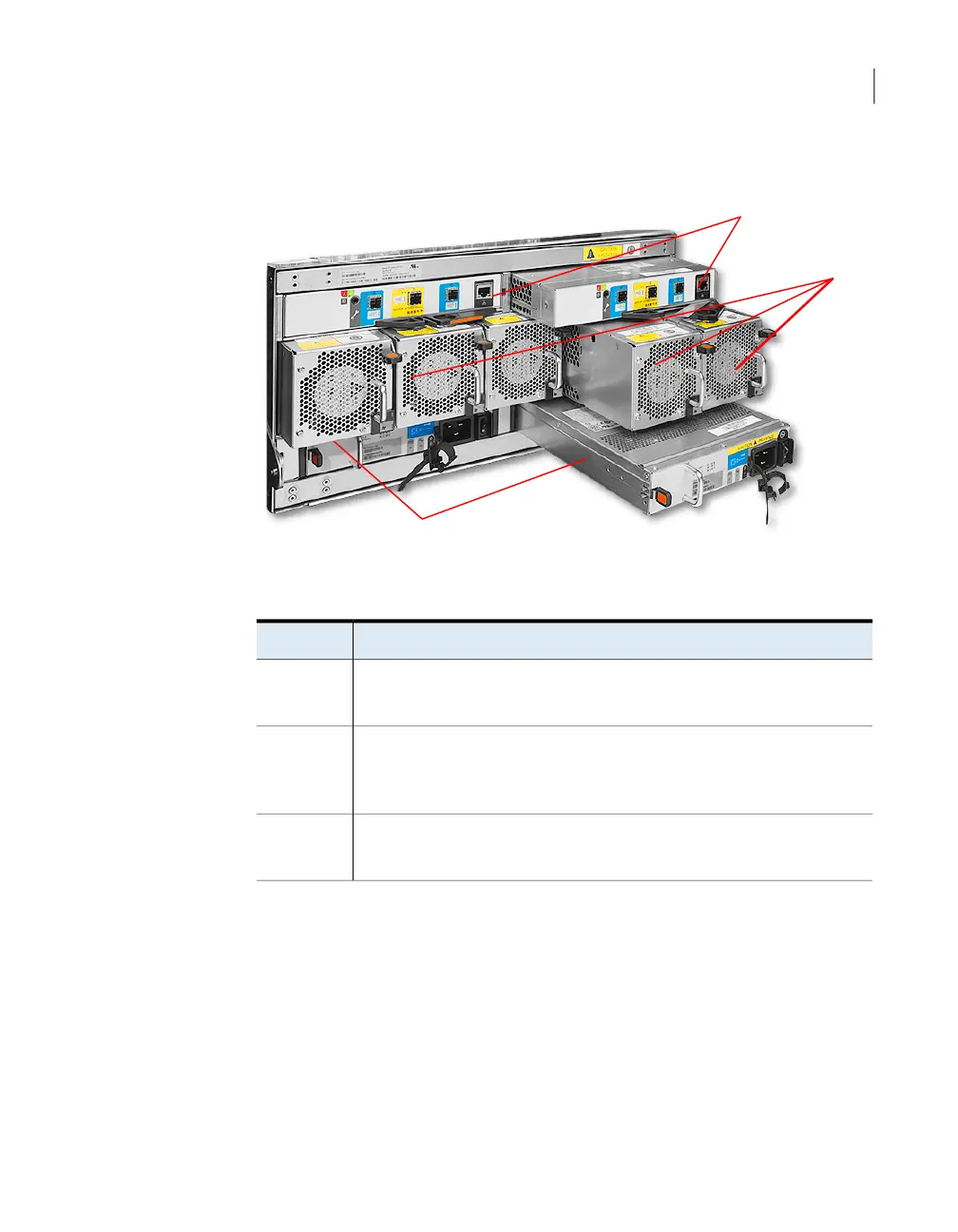

Figure 2-16
5U84 Expansion Storage Shelf rear components
A
B
C
Table 2-10
5U84 Expansion Storage Shelf rear component locations
ItemLetter
Expansion I/O modules
(from left to right) Expansion I/O Module A, Expansion I/O Module B
A
Fan modules
(from left to right) Fan Module 0, Fan Module 1, Fan Module 2, Fan Module
3, and Fan Module 4
B
Power Supply Units
(from left to right) PSU 0, PSU 1
C
5U84 Primary Storage Shelf
The 5U84 Primary Storage Shelf uses two Fibre Channel RAID controllers, which
are located in the top two slots of the back panel. The RAID controllers provide
RAID data protection technology for the data that is stored on the 5U84 Primary
Storage Shelf disk drives. The RAID controllers also provide RAID data protection
technology for the optional 5U84 Expansion Storage Shelves that you connect to
the 5U84 Primary Storage Shelf.
Fiber optic cables connect the 5340 Appliance compute nodes to the 5U84 Primary
Storage Shelf through the storage shelf's RAID controllers.
57About the Veritas 5U84 Storage Shelves
About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components
