VERITAS NetBackup 5340 User Manual

Figure 2-25
5U84 Storage Shelf Power Supply Unit

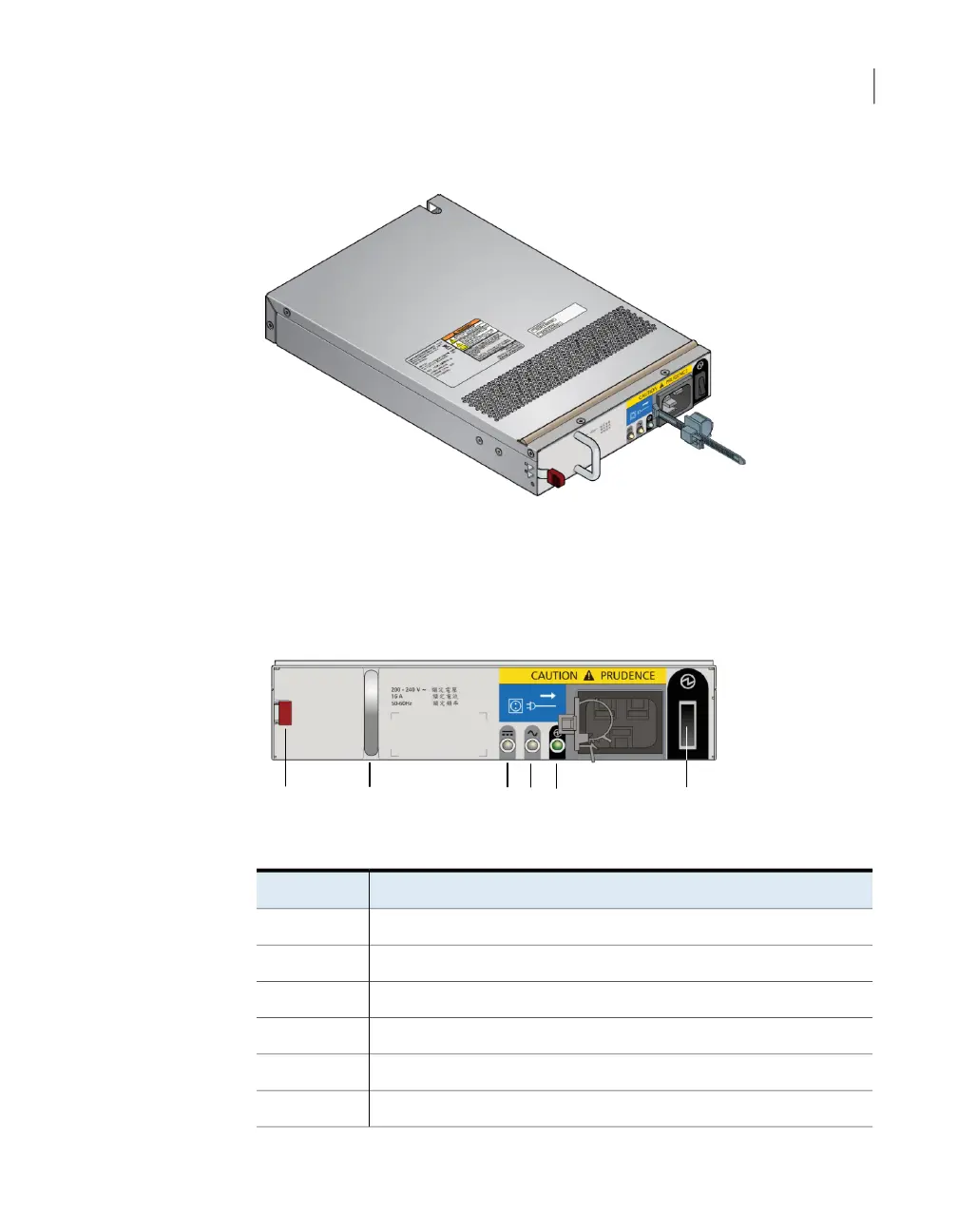

The rear panel of the PSU includes a power switch, three status LEDs, and an AC
socket for the power cord. The rear panel also includes a handle that you use during
the PSU insertion and removal process.
Figure 2-26
5U84 Storage Shelf Power Supply Unit
1
3
4 5
6
2
Table 2-17
5U84 Storage Shelf Power Supply Unit component locations
ComponentNumber
Release latch1
Handle2
PSU Fail LED3
AC Fail LED4
Power OK LED5
Power switch6
67About the Veritas 5U84 Storage Shelves
About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components
