Vertex 2158 Analog User Manual

Chapter 1: Introduction
Support Frames
(2/01) 1-5
Quick-Pit In-Floor Frame
The Quick-Pit frame option provides a unitized scale assembly, eliminating the need for
additional pit coping with in-floor installations. The upper flange of the rugged C-channel
frame acts as the pit coping around the perimeter of the scale platform. The Quick-Pit
frame provides the following benefits:
• Pits are correct depth
• Pits are always square
• No field assembly or welding of coping
• Easy to install, no pit forming required
• Ability to move the scale in the future

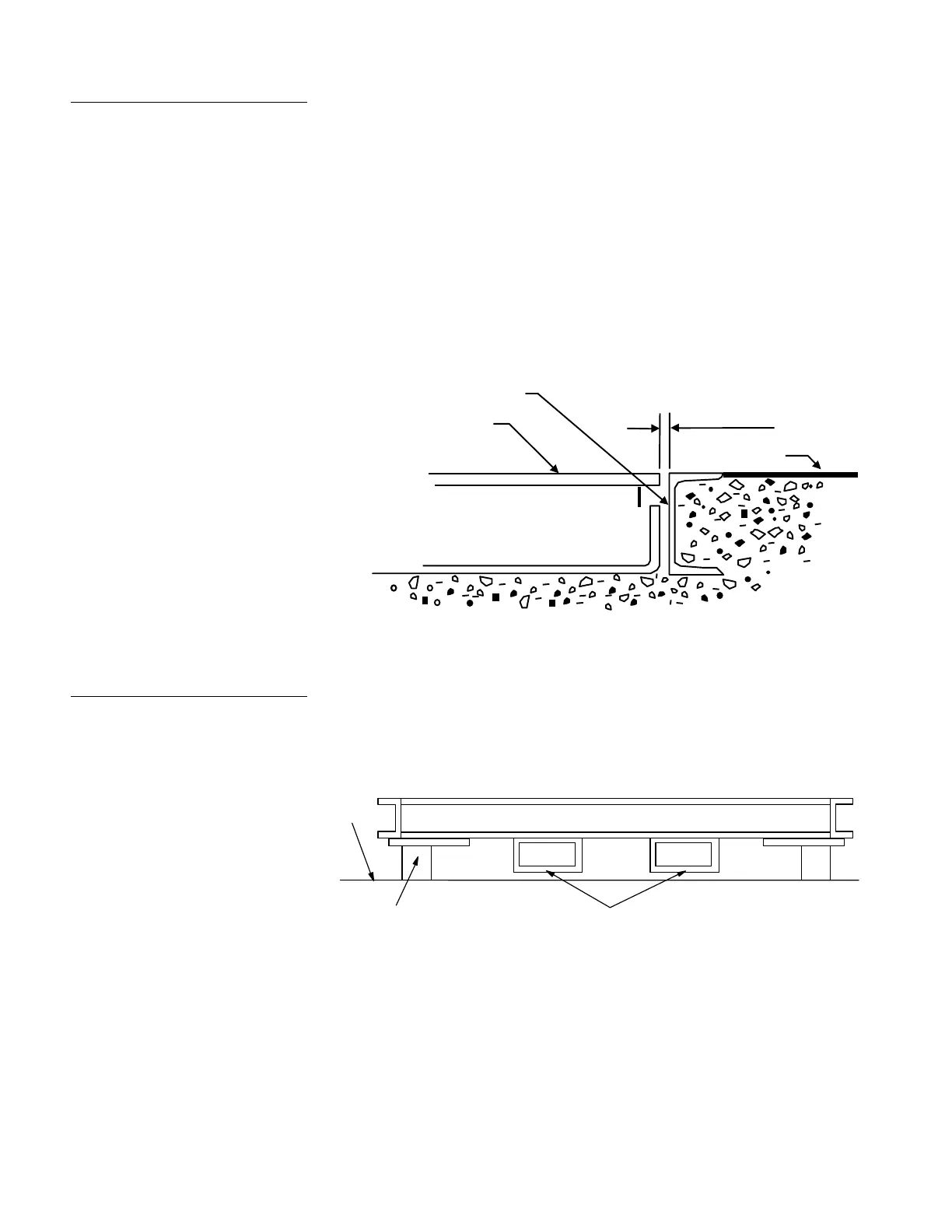

Figure 1-5: Quick-Pit Frame
Forklift Channel Frame
The Forklift Channel frame is used when scale portability is required. The rugged C-
channel construction and fork blade guides ensure safe lifting and transport.
Figure 1-6: Forklift Channel Frame
V
ERTEX Scale
VERTEX Quick-Pit Frame
3/8" Typical
Floor
Floor
Frame Support Leg
Fork Blade Guides
