METTLER TOLEDO 2158/2160/2162 VERTEX Floor Scale Installation and Service Manual
(2/01)3-6
DigiTOL DLC Mode
A Model 2160 floor scale is used with a DigiTOL junction box for summing load cell
outputs. Only DigiTOL indicators work with a DigiTOL junction box. In the DLC mode, the
indicator serves as the host for the DigiTOL junction box, allowing you to use the
indicator’s keypad to adjust scale parameters. See Figure 3-7 and Table 3-2 for cable
connections.
WARNING
DO NOT USE THE DigiTOL JUNCTION BOX IN LOCATIONS
CLASSIFIED AS HAZARDOUS BY THE NATIONAL
ELECTRICAL CODE (NEC) ARTICLE 500.

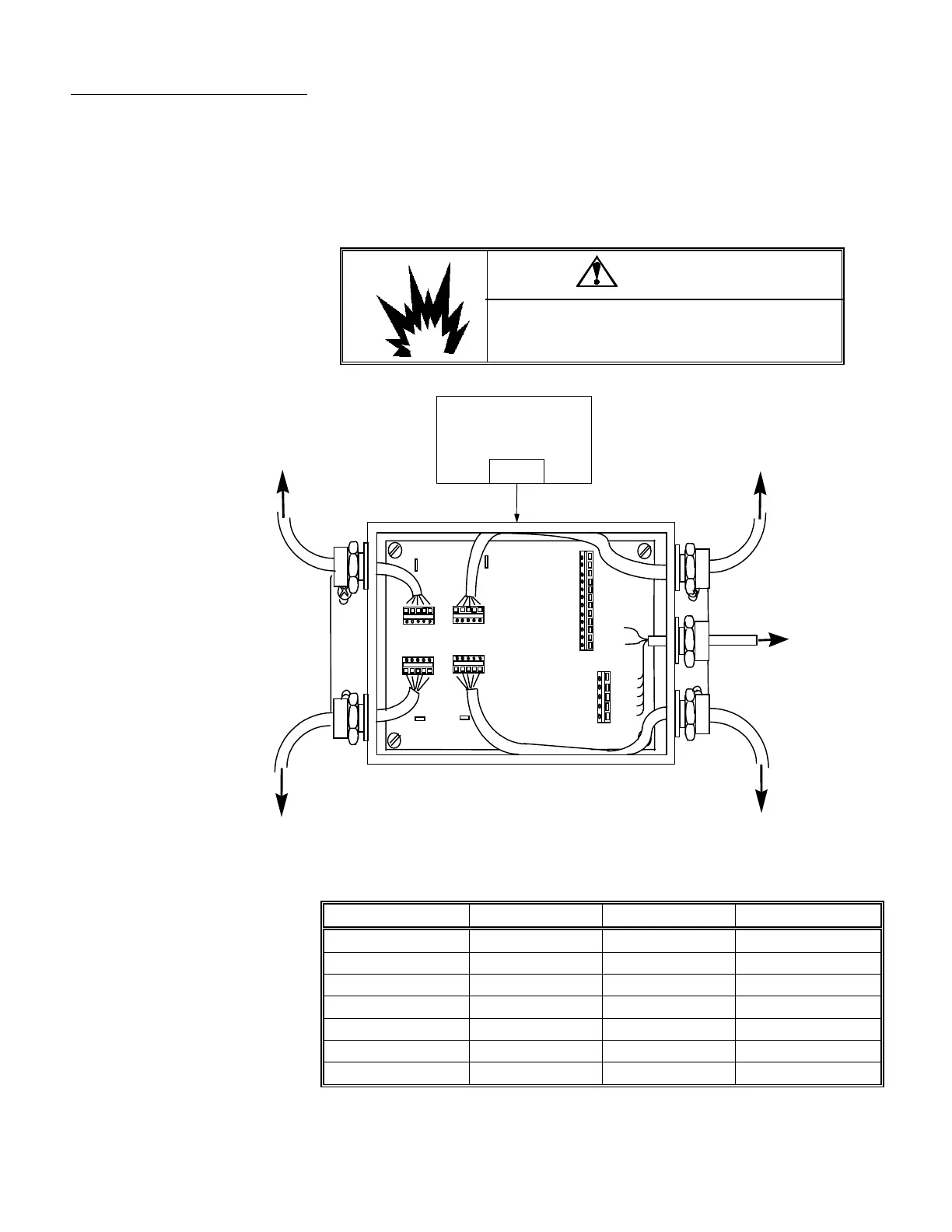

Figure 3-7: DigiTOL Junction Box Detail
Terminal Number Position Function Wire Color
TB2 10 +20 VDC Green
TB2 12 Ground Blue
TB1 1 Shield Orange
TB1 2 RXD A Red
TB1 3 RXD B White
TB1 4 TXD B Yellow
TB1 5 TXD A Black
Table 3-2: DigiTOL Junction Box Wiring
Note: For 2 mV/V load cells, jumpers
W1, W2, W3, and W4 must be ON
(shorting the pins).
*Not compatible with Model 8510 Panel
Mount DigiTOL Indicator or Models
8572 and 8582 counting scales.
**Not compatible with Model 8530VS.
-
EXC
-
SIG
SHIELD
+SIG
+EXC
LC1
LC3
TO CELL 2
TO CELL 1
TO DigiTOL
INDICATOR
8510*
8520
8522
8530**
JAGUAR
LYNX
-
EXC
-
SIG
SHIELD
+SIG
+EXC
W
3
W 4
W 1
W 2
LC2
LC4
TB 1
TB 2
1
1
0
12
1
5
+2
0
VD
C
GROUND
S
HIELD
RXD A
RXD B
TXD B
TXD A
TO CELL 4
TO CELL 3
Note: Install jumper from -SIG to +SIG
on any load cell terminal not used.
Load Cell Orientation
(
To
p
View of Platform
)
LC4
LC3LC1
LC2
