Chapter 4: Optional Ramp Installation
(2/01) 4-1
4
Optional Ramp Installation
You can install a ramp on any side of a VERTEX floor scale. Each ramp is shipped
complete with a kit of parts, which includes two ramp attachment lugs and two 3/8-16
UNC x 1" hex head cap screws with lock washers for securing the lugs to the frame.
1.
After the frame is anchored to the floor (but with the platform not installed), locate
the two holes on the side of the scale frame where the ramp is to be attached (see
Figure 4-1).

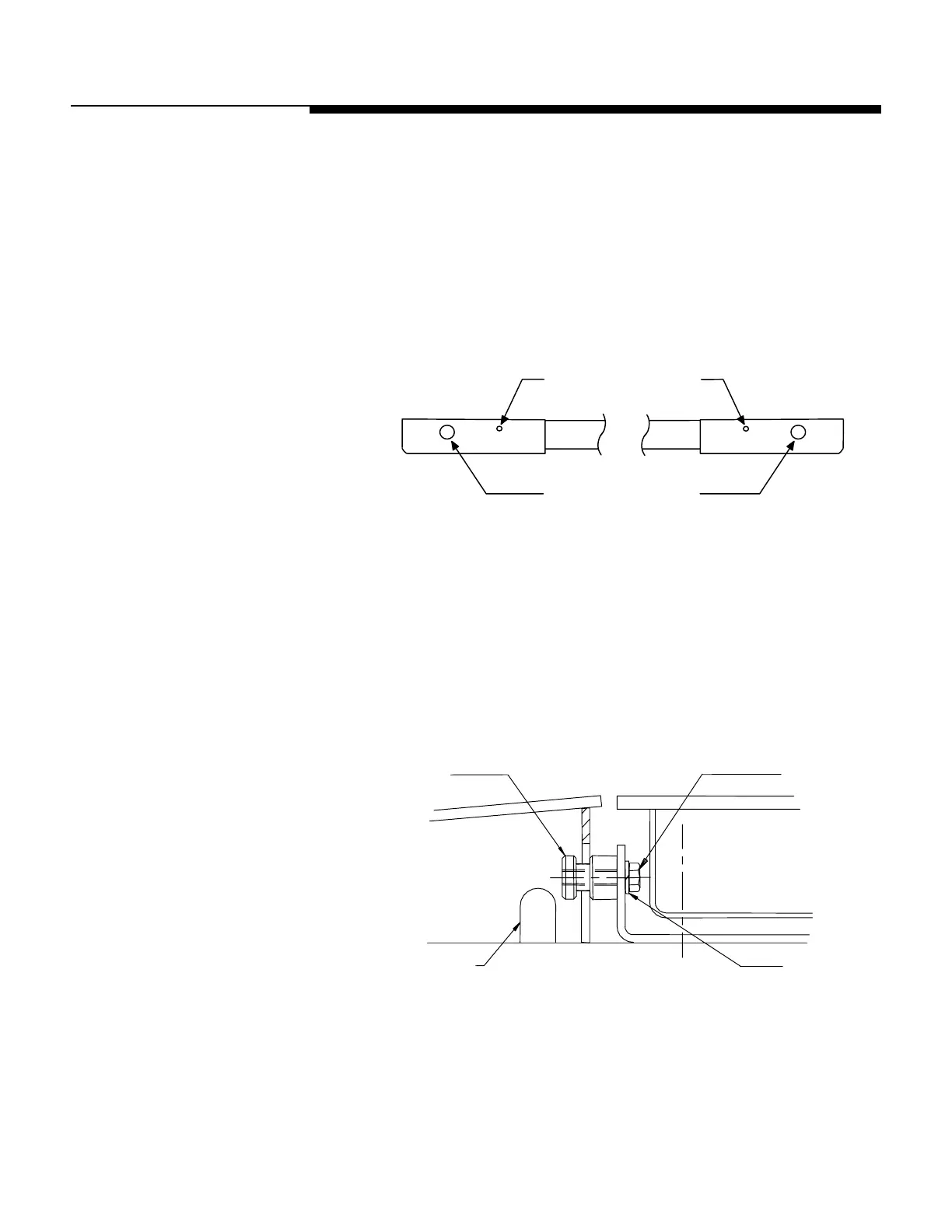

Figure 4-1: Side View of Scale Frame
2.
From the inside of the scale frame, insert the 3/8-16 UNC screws with lock washers
through the ramp attachment holes.
3.
Thread the ramp attachment lugs onto the screws until the lugs touch the outside
surface of the frame. Torque the lug attachment screws to 30 ft-lb.
4.
The front plate of the ramp has two slots that provide a friction type fit when slid
over the attachment lugs. Lift the ramp and align the front plate slots with the lugs.
Lower the ramp until the slots are fully engaged in the grooves on the lugs (see
Figure 4-2).
Figure 4-2: Ramp Attachment Detail
5.
Make sure that the ramp is stable. Shim under the corners of the ramp if required.
Proceed with installation of the platform. The instrument cable can be routed
through the ramp via the slot below the attachment lug and the cable access hole.
Attachment Lug
Cable Access Hole
Lock Washer
Screw
Scale (shown with
platform in place)
Ramp
Ramp Attachment Holes
Instrument Cable Holes
