Chapter 11: Service Parts
(2/01) 11-1
11
Service Parts

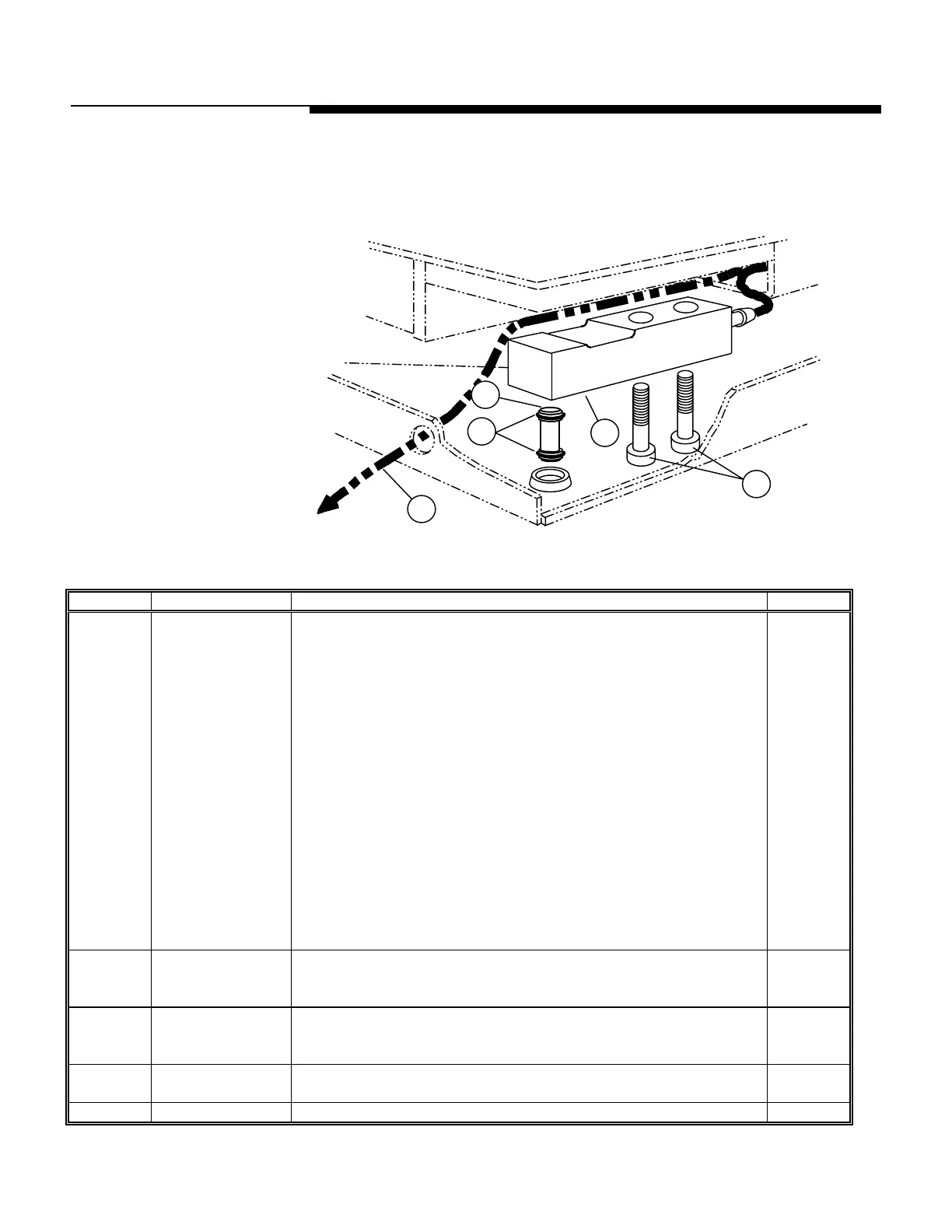

Load Cell and Rocker Pin Assembly
Ref. No. Part Number Description Qty.
1 TB600488
TB600488-1
TB600529-2
TB600529-3
TB600363-1
TB600363
TB600342-1
TB600342
TB600343-1
TB600343
TB600364-1
TB600454-2
TB600454
TB600455-2
TB600455
TB600456-2
TB600456
TB600457
250-lb load cell (5000d) with 7.5-foot cable
250-lb load cell (5000d) with 15-foot cable (5 x 7 platform only)
500-lb load cell (5000d) with 7.5-foot cable
500-lb load cell (5000d) with 15-foot cable (5 x 7 platform only)
1250-lb load cell (5000d) with 7.5-foot cable
1250-lb load cell (5000d) with 15-foot cable (5 x 7 platform only)
2500-lb load cell (5000d) with 7.5-foot cable
2500-lb load cell (5000d) with 15-foot cable (5 x 7 platform only)
5000-lb load cell (5000d) with 7.5-foot cable
5000-lb load cell (5000d) with 15-foot cable (5 x 7 platform only)
10000-lb load cell (5000d) with 15-foot cable
550-kg C3 R60 OIML with 7.5-foot cable
550-kg C3 R60 OIML with 15-foot cable (5 x 7 platform only)
1100-kg C3 R60 OIML with 7.5-foot cable
1100-kg C3 R60 OIML with 15-foot cable (5 x 7 platform only)
2200-kg C3 R60 OIML with 7.5-foot cable
2200-kg C3 R60 OIML with 15-foot cable (5 x 7 platform only)
4400-kg C3 R60 OIML with 15-foot cable (5 x 7 platform only)
4
2 TN800647
TN800650
TN800654
1/2-13 bolt x 1.75" long (250-lb - 2.5K load cell)
1/2-13 bolt x 2" long (5K load cell)
3/4-10 bolt x 2.5" long (10K load cell)
8
3 TN200050
MN21018
TN201975
Rocker pin (250-lb - 2.5K load cell)
Rocker pin (5K load cell)
Rocker pin (10K load cell)
4
4 MZ0909000005
MZ0909000012
O-ring (250-lb - 5K load cell)
O-ring (10K load cell)
8
5 510624370 24-gauge, 6-conductor, shielded home run cable Varies
Note: Proper overload gap:
250 lb cell - 0.009" to 0.012"
500 lb cell - 0.009" to 0.015"
1250 lb cell - 0.012" to 0.018"
2500 lb cell - 0.017" to 0.023"
Note: Torque load cell bolts to
100 ft-lb (250-lb-5000-lb cells)
or 250 ft-lb (10,000-lb cells).
1
2
3
4
To Indicator
5
