Chapter 3: Installation (Top of Floor)
Modes of Operation
(2/01) 3-7
IDNet Mode
A Model 2162 floor scale is used with an IDNet junction box to output an IDNet data
format compatible with the METTLER TOLEDO ID1 and ID5 weight display, or the Jaguar
industrial terminal. See Figure 3-8 and Table 3-3 for cable connections. For information
about the indicator and how to operate it, refer to the appropriate indicator manual.
WARNING
DO NOT USE THE IDNet JUNCTION BOX IN LOCATIONS
CLASSIFIED AS HAZARDOUS BY THE NATIONAL
ELECTRICAL CODE (NEC) ARTICLE 500.

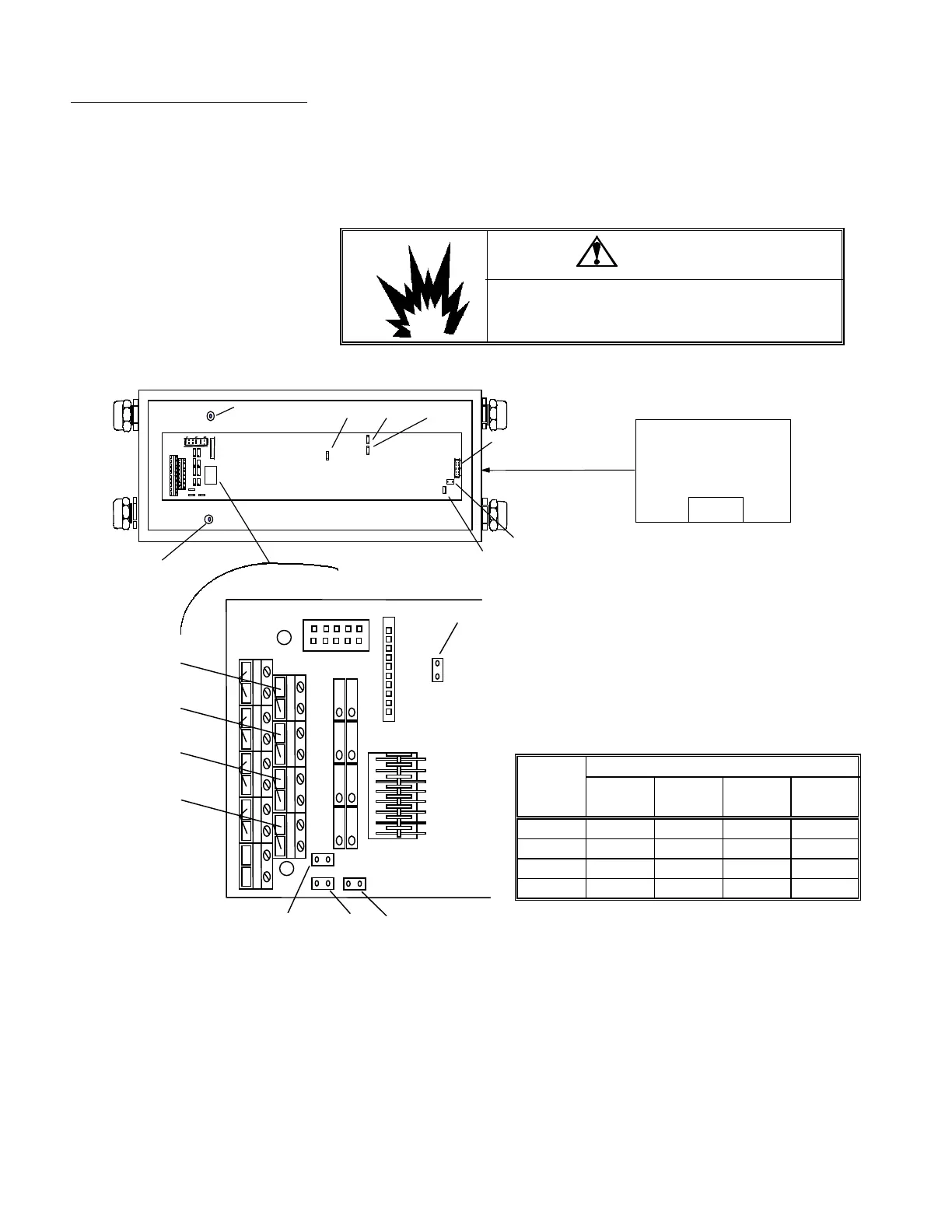

Figure 3-8: IDNet Junction Box Detail and Wiring
ST2
ST3
P7 P8
P1 P2
SA1
8
7
6
5
4
3
2
1
1
2
3
4
5
7
8
9
6
LC3
LC4
LC2
LC1
W2
W3
W5
W1
-SEN +SEN
-SIG +SIG
-EXC +EXC
W 6
W 8 W 7
W4
W 9
Indicator Plug
LC 3 & 4 Ground
Standoff
LC 1 & 2 Ground
Standoff
Terminal
Cell + Exc.
Green
- Exc.
Black
+ Sig.
White
- Sig.
Red
#14499
#23388
#32277
#41166
Load Cell Orientation
(Top View of Platform)
LC4
LC3LC1
LC2
To Next Page
