METTLER TOLEDO 2158/2160/2162 VERTEX Floor Scale Installation and Service Manual
(2/01)3-4
4. Remove the junction box lid.
5. Loosen the instrument cable connector, and thread the cable through the connector
(pull enough cable to reach the INPUT terminal on the junction box PCB).
6. Route the cable as shown in Figure 3-4.
7. Connect the instrument cable to the INPUT terminal on the PCB as shown in Figure
3-6 For Analog, Figure 3-7 For DigiTOL, or Figure 3-8 For IDNet.
8. Place the desiccant bag inside the junction box.
9. Reinstall the junction box lid. Make sure that the rubber gasket is clean and
correctly positioned. Tighten all screws and make sure all cord grip caps are secure
(see Figure 3-5).

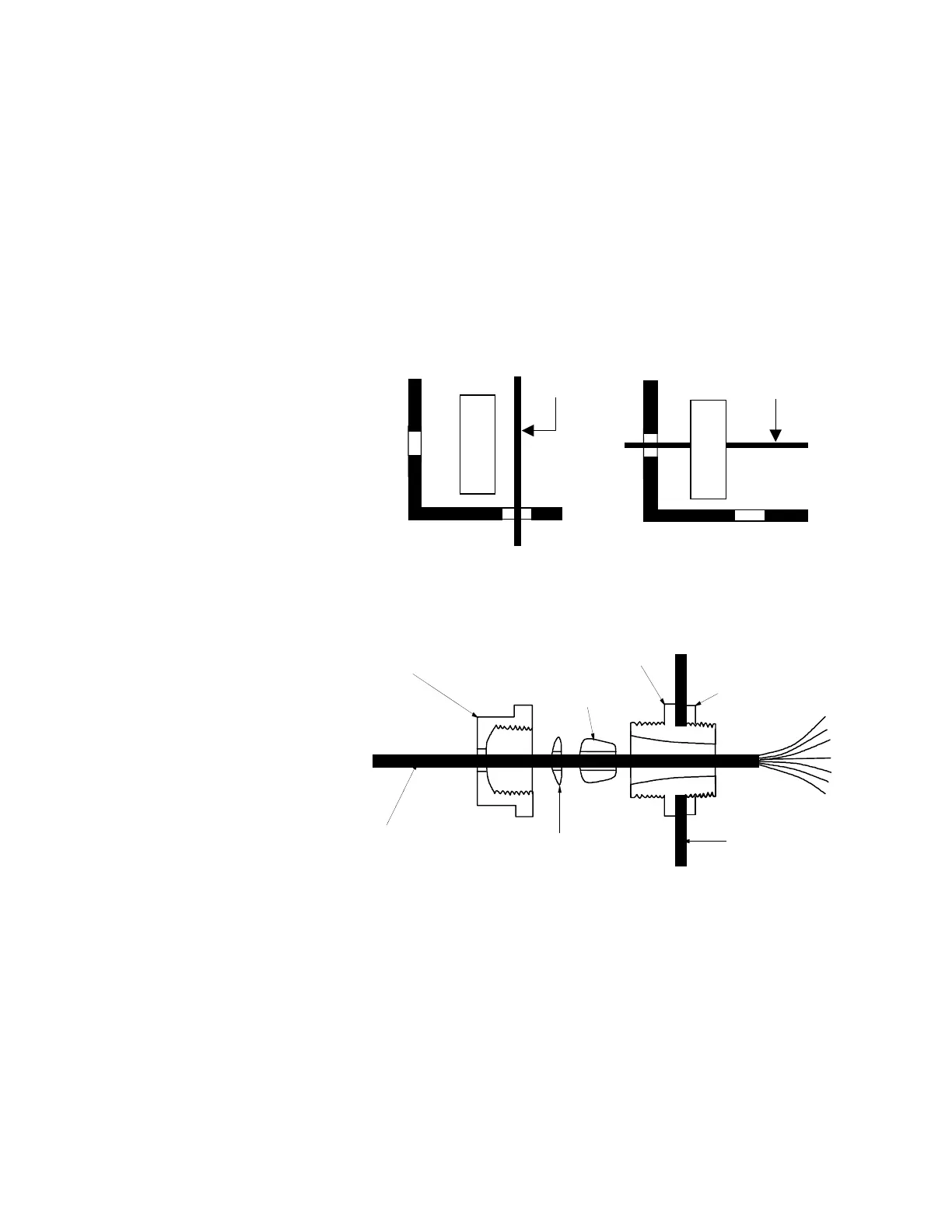

Figure 3-4: Instrument Cable Routing
Cord Grip Cap
Nut
Spherical Washer
Junction Box
Enclosure
Home Run Cable
Rubber Grommet
Body Insert
Figure 3-5: Cord Connector Details
Incorrect Routing
Load
Cell
Correct Routing
Load
Cell
CableCable
