Preparation For Use Liebert EXL S1
16 User Manual 10H52226UM60 - Rev. 1 - 01/2017

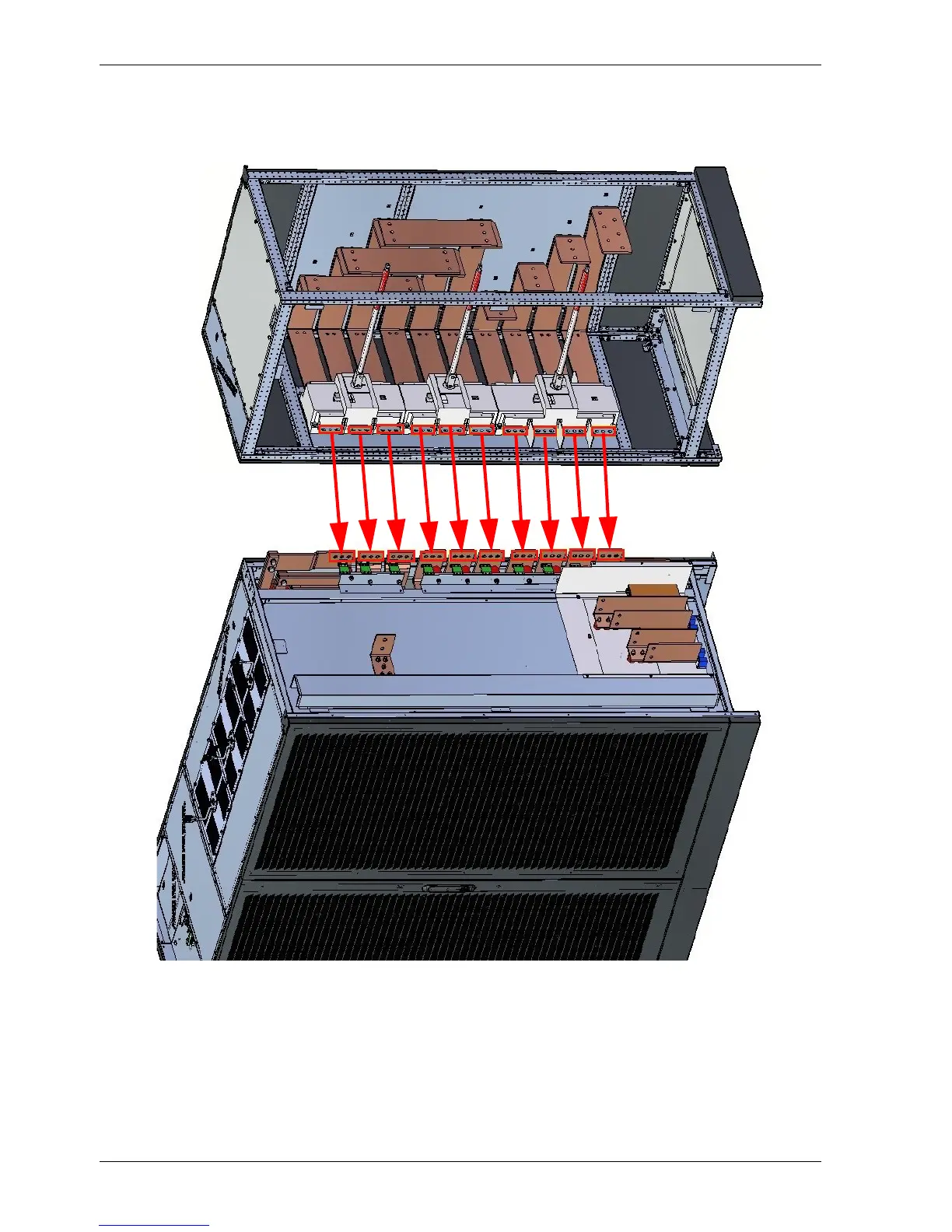

4 Connect the busbars of modules cabinet to the switches terminals in red as indicated by the
arrows using supplied hexagonal head screws M12x35 + grower + washer.
For a correct connection and installation of the busbars use contact grease.
For tightening torque, please refer to Table 2.
