Liebert EXL S1 Preparation For Use
User Manual 10H52226UM60 - Rev. 1 - 01/2017 17

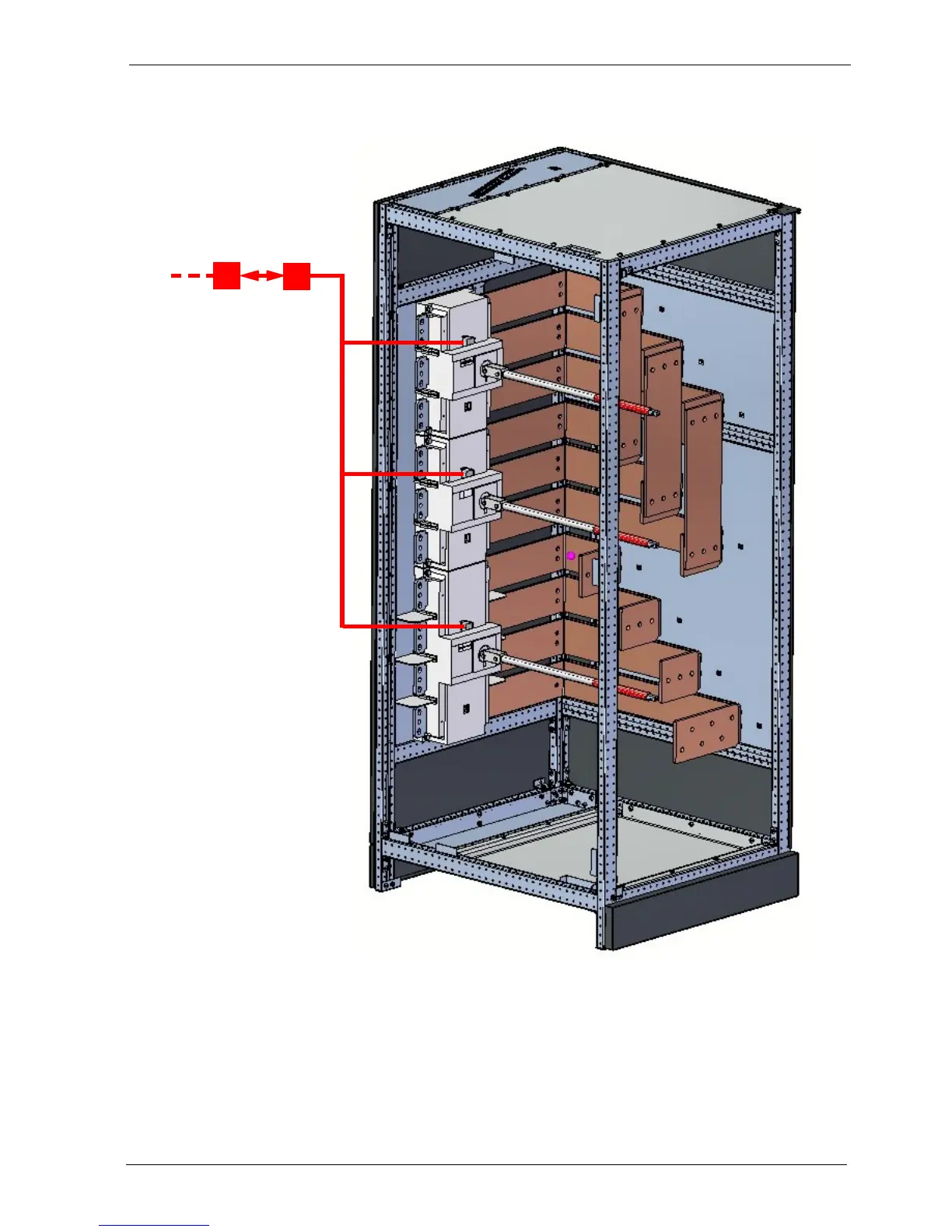

5 Connect the signal wiring to the switches auxiliary contacts QS1,QS2 and QS4 (pin COM and pin
N.O.), as indicated in the functional schematic.
6 Reassemble the two lexan particulars and the iron one previously removed in the modules
cabinet; reassemble the secondary access panels and the external door previously removed in
the switches cabinet.
