Options Liebert EXL S1
95
User Manual 10H52226UM60 - Rev. 1 - 01/2017
Installation

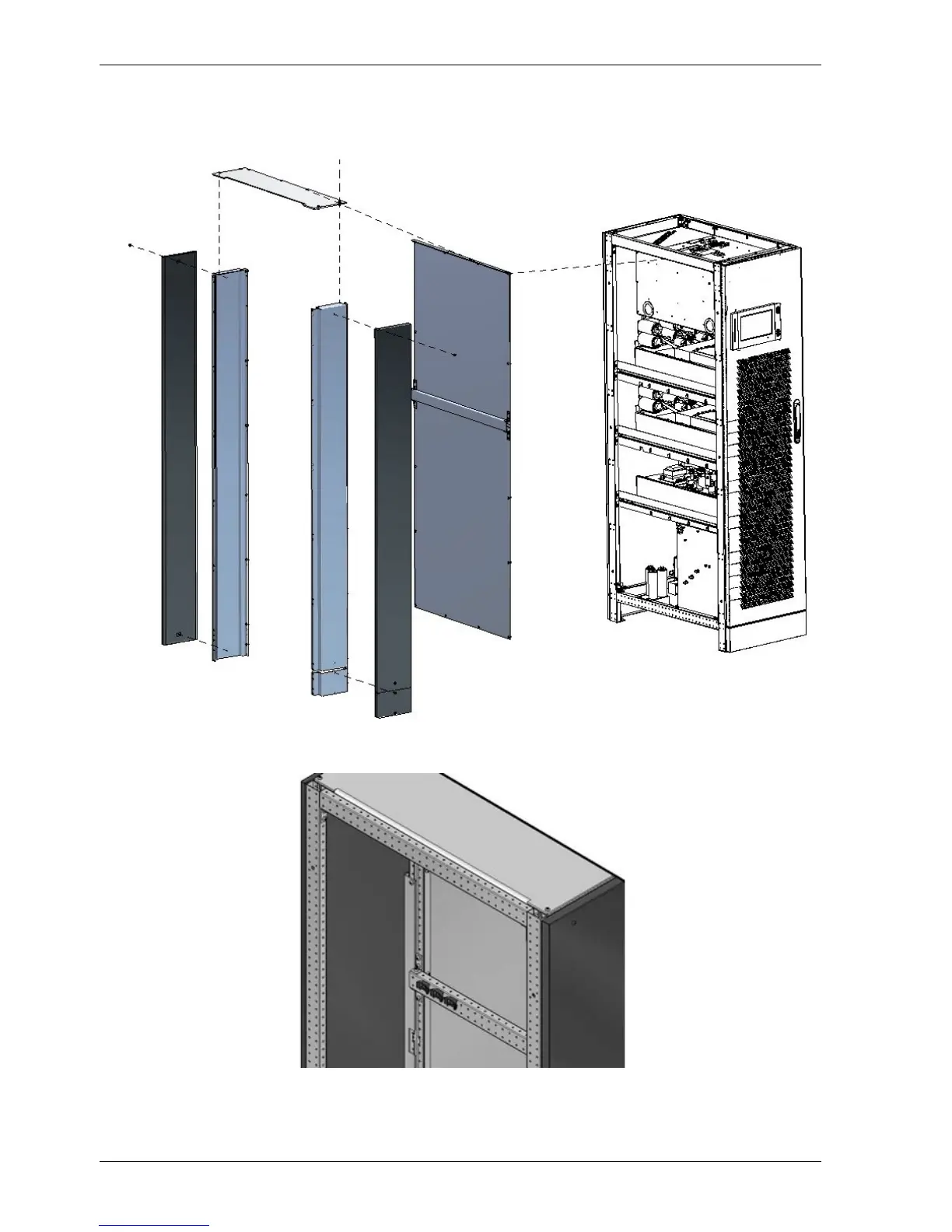

Remove the lateral painted panel of UPS. Assemble TCE and UPS together using the loose supplied
material with TCE, see below figures.
If necessary, fix the cables to the mounting using the base cable fixing. These materials are loose
supplied.
Mount the lateral painted panel previously removed on the side of TCE.
To Next Page
