Liebert EXL S1 Options
User Manual 10H52226UM60 - Rev. 1 - 01/2017
96
TCE 400mm
This option permits power cables to be routed through the top of the UPS. It can be installed both on
the right and the left of the UPS, but the despatched configuration includes the TCE on the left. The
TCE weighs 75kg.

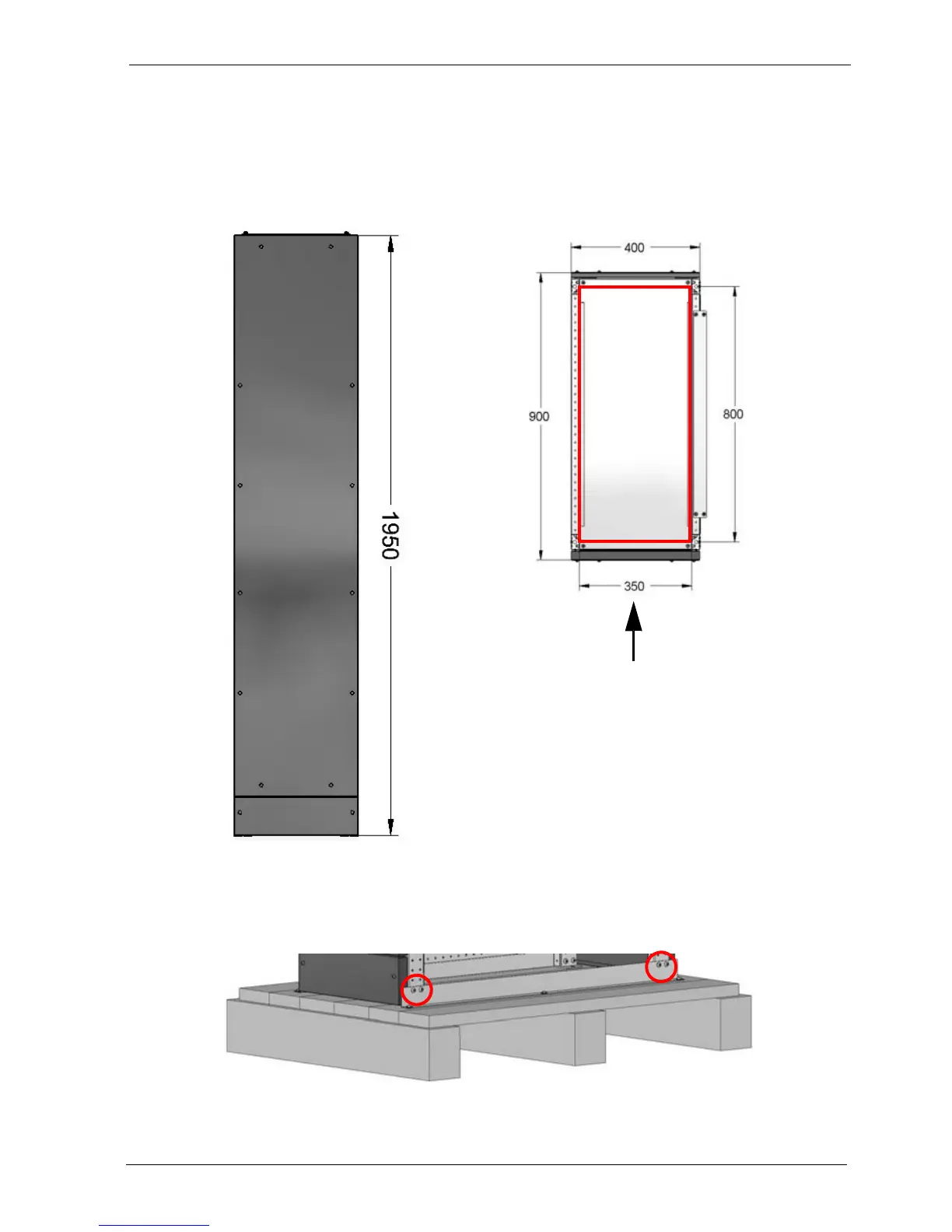

Footprint
Unpacking
Remove the TCE from the pallet by removing the four fixing screws in both the sides.
GLAND PLATE
FOR
CABLE ENTRY
Upper view
FRONT
Front view
The figures refer to the TCE on the left
