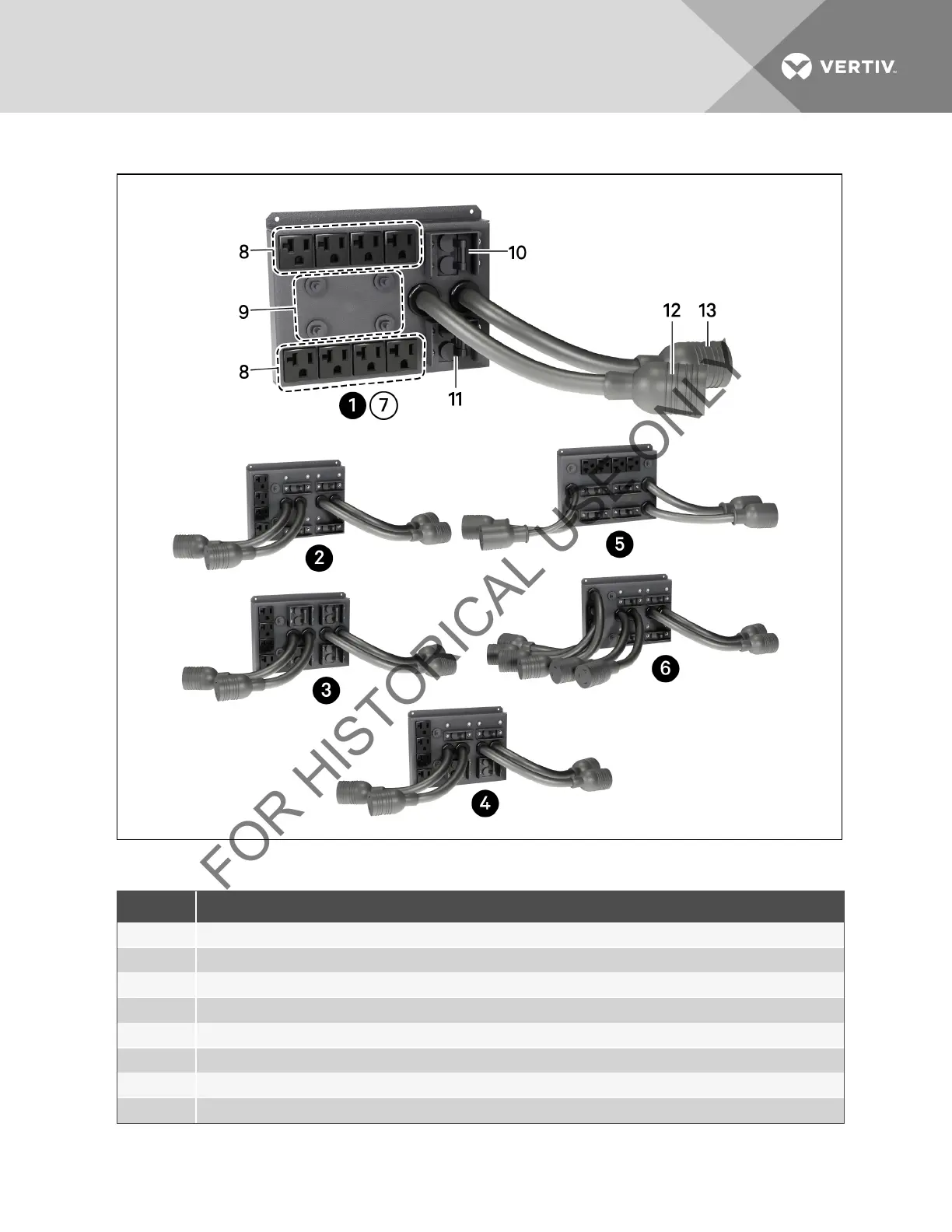

Figure 3.7 Power distribution models for 8000VA and 10,000VA models of Liebert GXT3
ITEM DESCRIPTION
1 PD2-101 Receptacles: two L6-30; eight 5-20R
2 PD2-102 Receptacles: four L6-20R four 5-20R
3 PD2-103 Receptacles: four L6-30R four 5-20R
4 PD2-104 Receptacles: four 5-20R two L6-30R two L6-20R
5 PD2-105 Receptacles: four 5-20R two L5-30R two L5-20R
6 PD2-106 Receptacles: four L6-20R four L5-20R
7 Similar features on other distribution boxes arranged differently
8 5-20R Output Receptacles
Table 3.7 Power Distribution Models for 5000VA and 6000VA Models of Liebert GXT3
Vertiv | Liebert® GXT3 ™ Installer/User Guide | 18
