3 MAJOR COMPONENTS
The Liebert GXT3 is composed of three major assemblies to provide easier handling, installation and versatility.
3.1 Main Frame and Electronics
All models of the Liebert GXT3 are shipped without the internal batteries installed. Power distribution varies by model and
rating.
• Liebert GXT3 5000 and 6000VA models ship with a basic hardwire distribution box attached and ready to be
connected to the load (see Figure 3.2 on the next page).
• Liebert GXT3RTL630 ships with a power distribution box attached (see (Figure 3.4 on page15).
• Liebert GXT3 8000 and 10,000VA models with a cover plate installed over connections for any of several
optional power distribution boxes (see Figure 3.5 on page16).

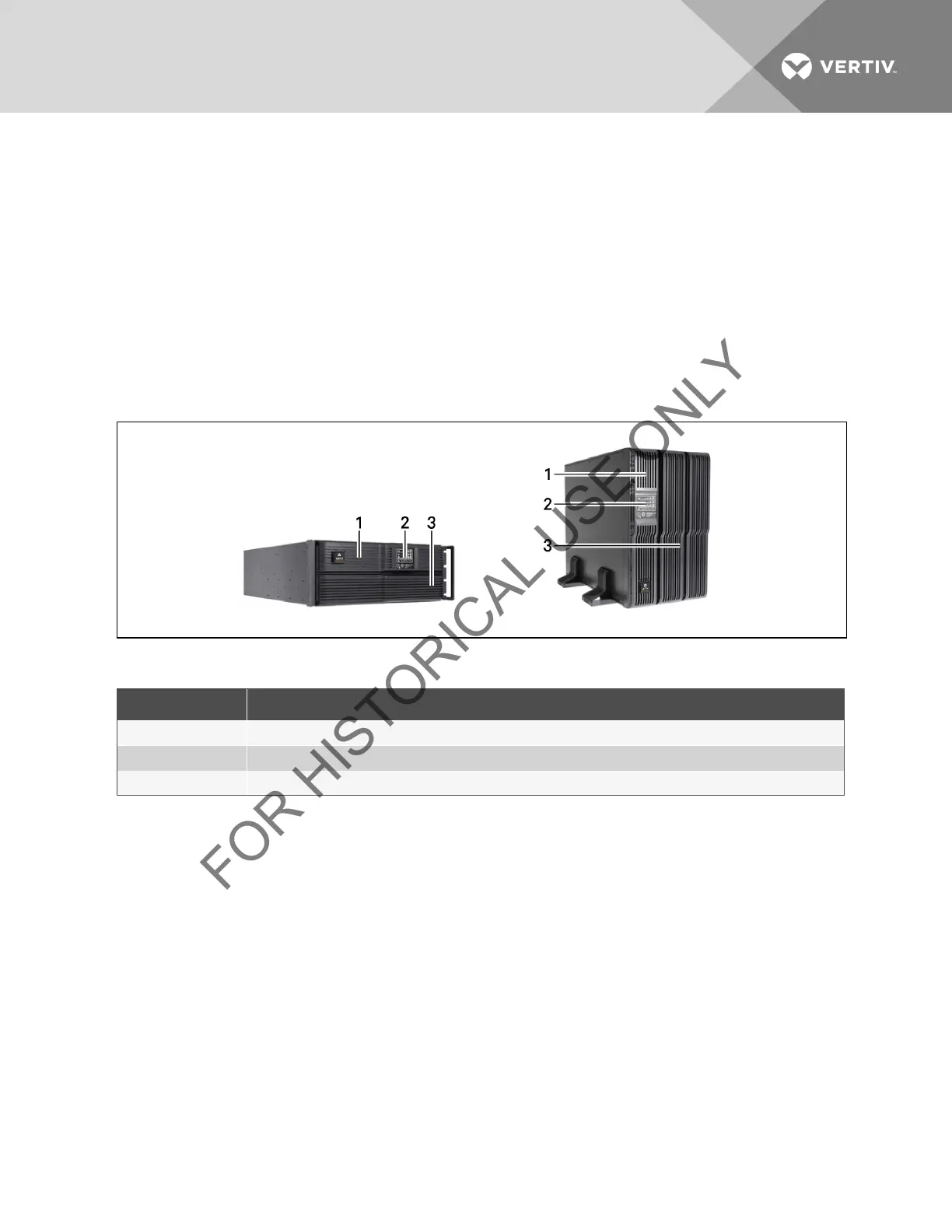

Figure 3.1 Liebert GXT3 front view—rack-mount and tower configurations
ITEM DESCRIPTION
1 Upper Bezel
2 Status Indicators and Controls
3 Lower Bezel and Battery Access Door
Table 3.1 GXT3 Front View Description
Vertiv | Liebert® GXT3 ™ Installer/User Guide | 13
