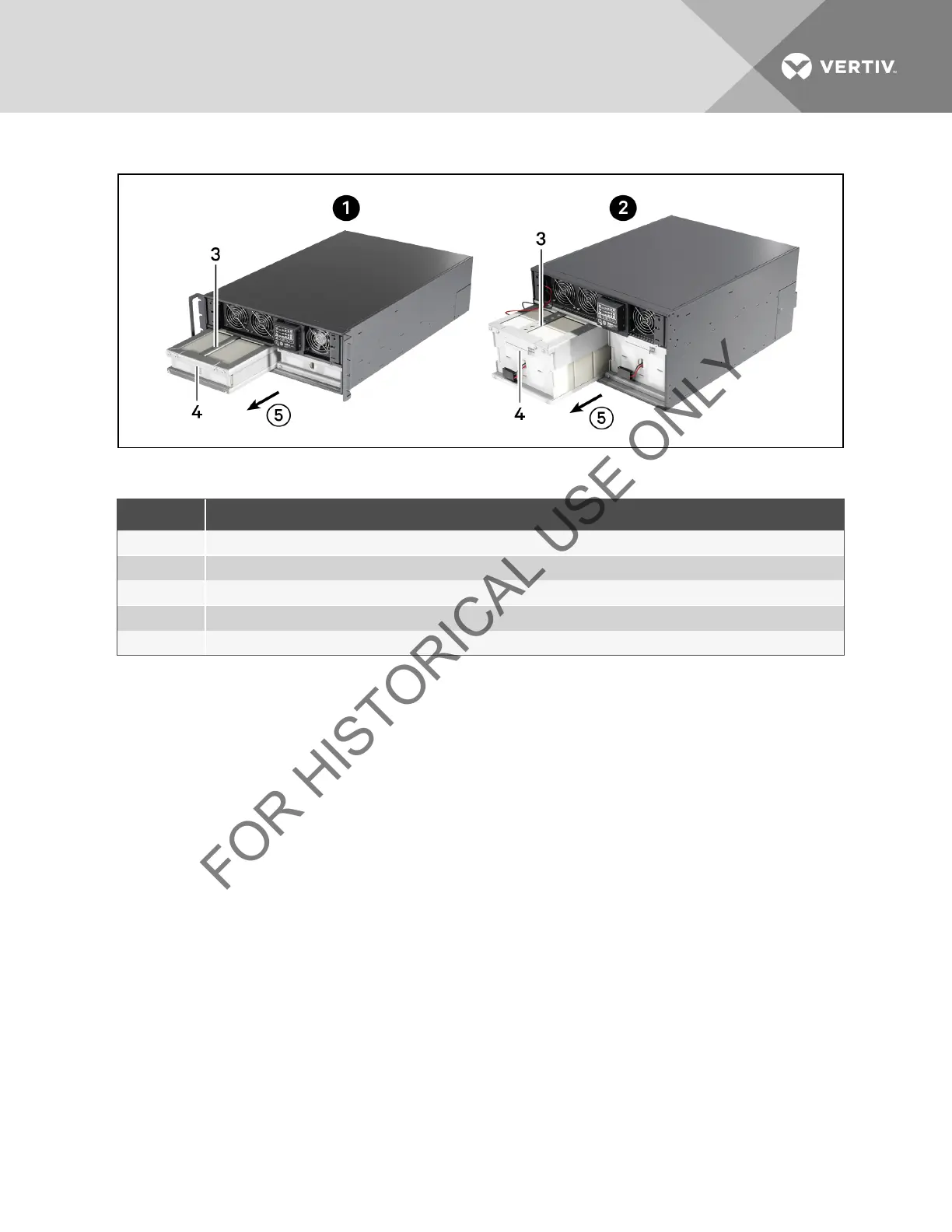

Figure 10.3 Pulling out the battery packs
ITEM DESCRIPTION
1 5000/6000 VA models
2 8000VA /10,000VA model
3 Internal Battery Pack (1 of 2)
4 Battery Handle
5 Pull Out with Battery Handle
Table 10.3 Pulling out battery pack descriptions
NOTE: Each model has two battery packs.
6. Unpack a new internal battery pack. Take care not to destroy the packing.
Compare the new and old internal battery packs to make sure they are the same type and model. If they are
the same, proceed with 7; if they are different, stop and contact your local Emerson representative or Emerson
Channel Support.
7. Line up and slide in the new internal battery pack.
8. Repeat 67. above if replacing both battery packs. Each model has two battery packs
9. Reconnect the battery plugs and battery receptacles.
10. Gently push the battery wire into the UPS battery compartment.
11. Reattach the front battery door with the six screws.
12. Reattach the front plastic bezel cover to the UPS.
NOTE: The internal battery pack is hot-swappable. However, caution should be exercised because the load is
unprotected from disturbances and power failures during this procedure. Do not replace the battery while the UPS is
operating in Battery Mode. This will result in a loss of output power and will drop the connected load.
10.2 Battery Charging
The batteries are valve-regulated, nonspillable, lead acid and should be kept charged to attain their design life. The Liebert
GXT3 charges the batteries continuously when it is connected to the utility input power.
If the Liebert GXT3 will be stored for a long time, Emerson recommends connecting the UPS to input power for at least 24
hours every four to six months to ensure full recharge of the batteries.
