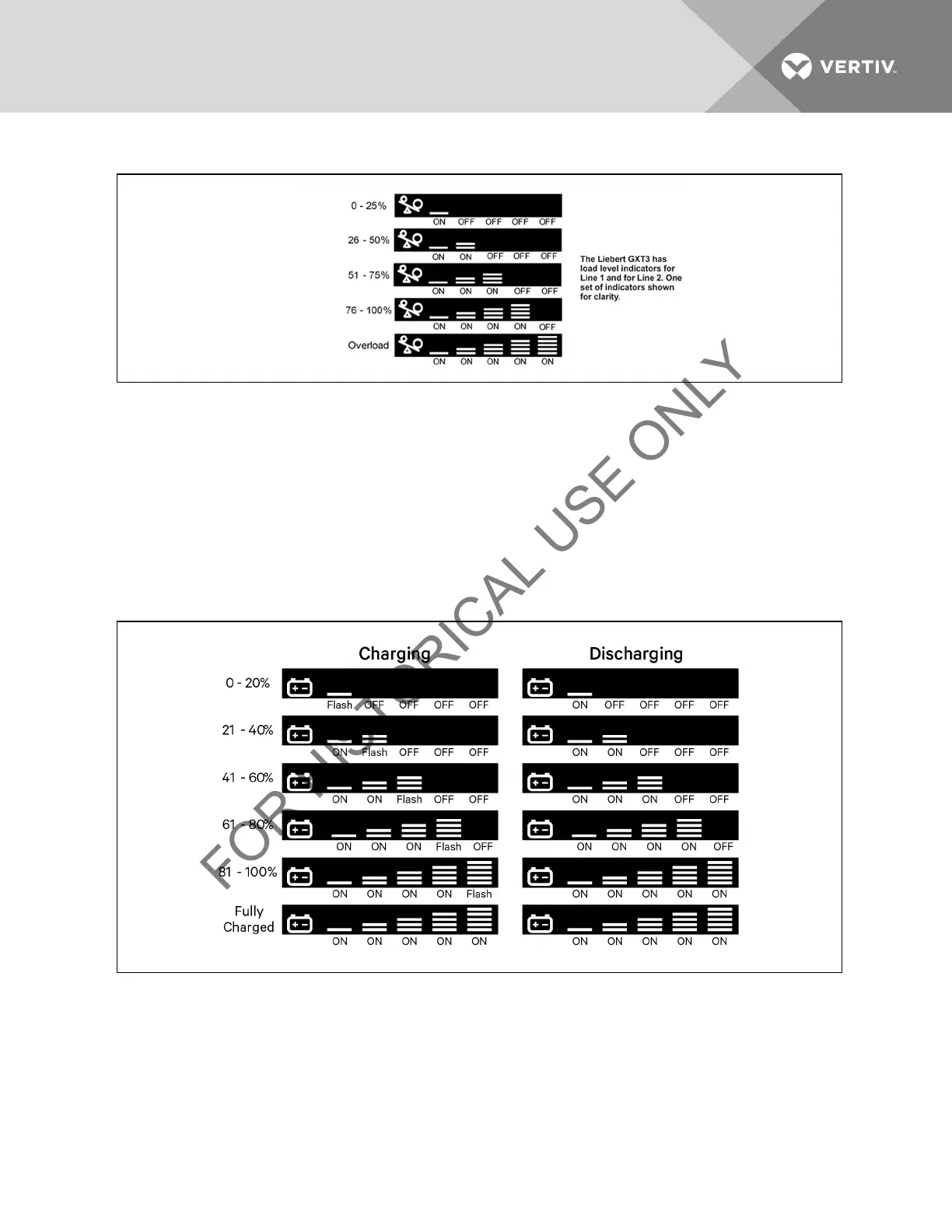

Figure 7.2 Load level indicators
7.4 Battery Level Indicators (5 Green)
The battery level indicator is composed of five sets of LED bars that illuminate and flash to indicate the battery capacity
level. The Liebert GXT3 battery capacity level is shown in 20% increments (±5%). The battery level indicators will illuminate
as shown in Figure 7.3 below
The battery level indicators display approximate battery capacity at all times.
The Liebert GXT3 is equipped with automatic and remote battery test features. The default setting is for the automatic test
to occur every 14 days (this option is user-configurable) if utility power has not been interrupted. Should the battery fail this
test, the red Fault indicator LED along with the A and C diagnostic LEDs will illuminate and an alarm will sound (refer to
Troubleshooting on page 53). The remote test feature functions with Liebert MultiLink
®
and can remotely initiate the battery
test.
Figure 7.3 Battery level indicators
7.5 UPS Status Indicators
UPS status is indicated by five symbols: fault indicator, AC input indicator, battery indicator, inverter indicator and bypass
indicator. Table 7.1 on the facing page shows the symbols and their meanings.
Vertiv | Liebert® GXT3 ™ Installer/User Guide | 38
