5 INSTALLATION AND CONFIGURATION
Do NOT attempt to start the UPS, turn on any circuit breaker or energize the input power until instructed to do so in Initial
Startup and Electrical Checks on page 41.
Visually inspect the UPS for shipping damage. Report any damage to the carrier and your local dealer or Emerson
representative.
CAUTION: The UPS is heavy (see Specification). Take proper precautions when lifting or moving it.
Install the Liebert GXT3 indoors in a controlled environment, where it cannot be accidentally turned off. Place it where air
flows unrestricted around the unit. The installation location must be free of water, flammable liquids, gases, corrosives and
conductive contaminants. Maintain a minimum clearance of 100mm (4inches) in the front and rear of the UPS. Maintain an
ambient temperature range of 0 to 40°C (32 -104°F).
NOTE: UPS operation in sustained temperatures outside the range of 15-25°C (59°-77°F) reduces battery life.
5.1 Install the Main Cabinet
The Liebert GXT3 may be installed in either a tower configuration or in a rack, depending on available space and use
considerations. Determine the type of installation and follow the appropriate instructions in either Tower UPS Installation on
page 23 or Rack-Mount UPS Installation on page 25.
5.1.1 Tower UPS Installation
To install the Liebert GXT3 as a tower:
1. Take the support bases out of the accessories bag (see Figure 5.1 below).

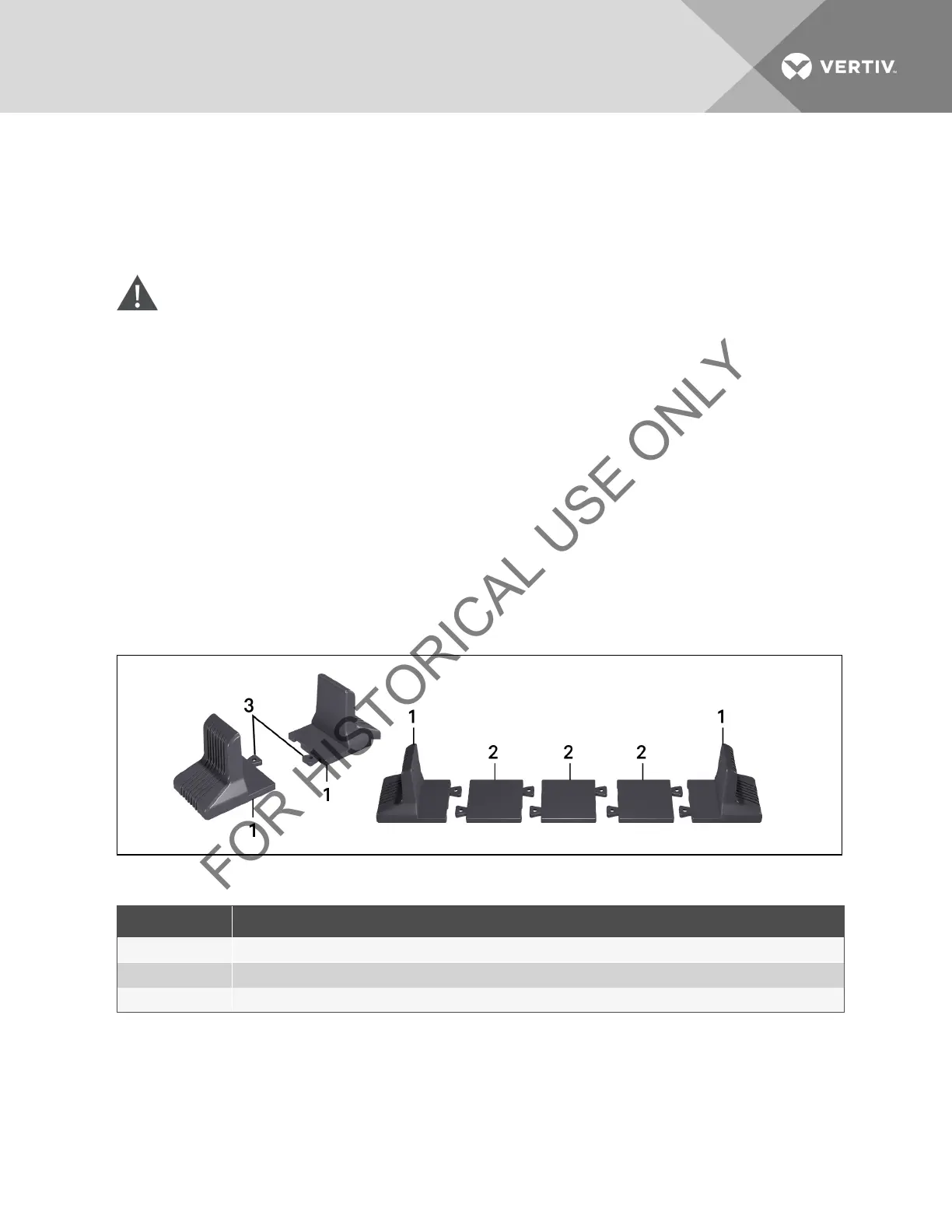

Figure 5.1 Support bases
ITEM DESCRIPTION
1 Support Bases
2 Spacers
3 Connectors
Table 5.1 Support Bases Descriptions
2. If optional Liebert external battery cabinets will be connected to the Liebert GXT3, take out the spacers
shipped with the battery cabinet.
3. Connect the spacers and the support bases as shown in Figure 5.1 above. Each Liebert GXT3 needs two
assembled support bases, one in the front and one in the rear.
4. Adjust the direction of the operation and display panel and logo on the Liebert GXT3.
a. Remove the front plastic bezel cover as shown in Figure 5.2 on the next page.
Vertiv | Liebert® GXT3 ™ Installer/User Guide | 23
