Refrigeration circuits
E---5Liebert HPM --- A/W/F/D/H
English

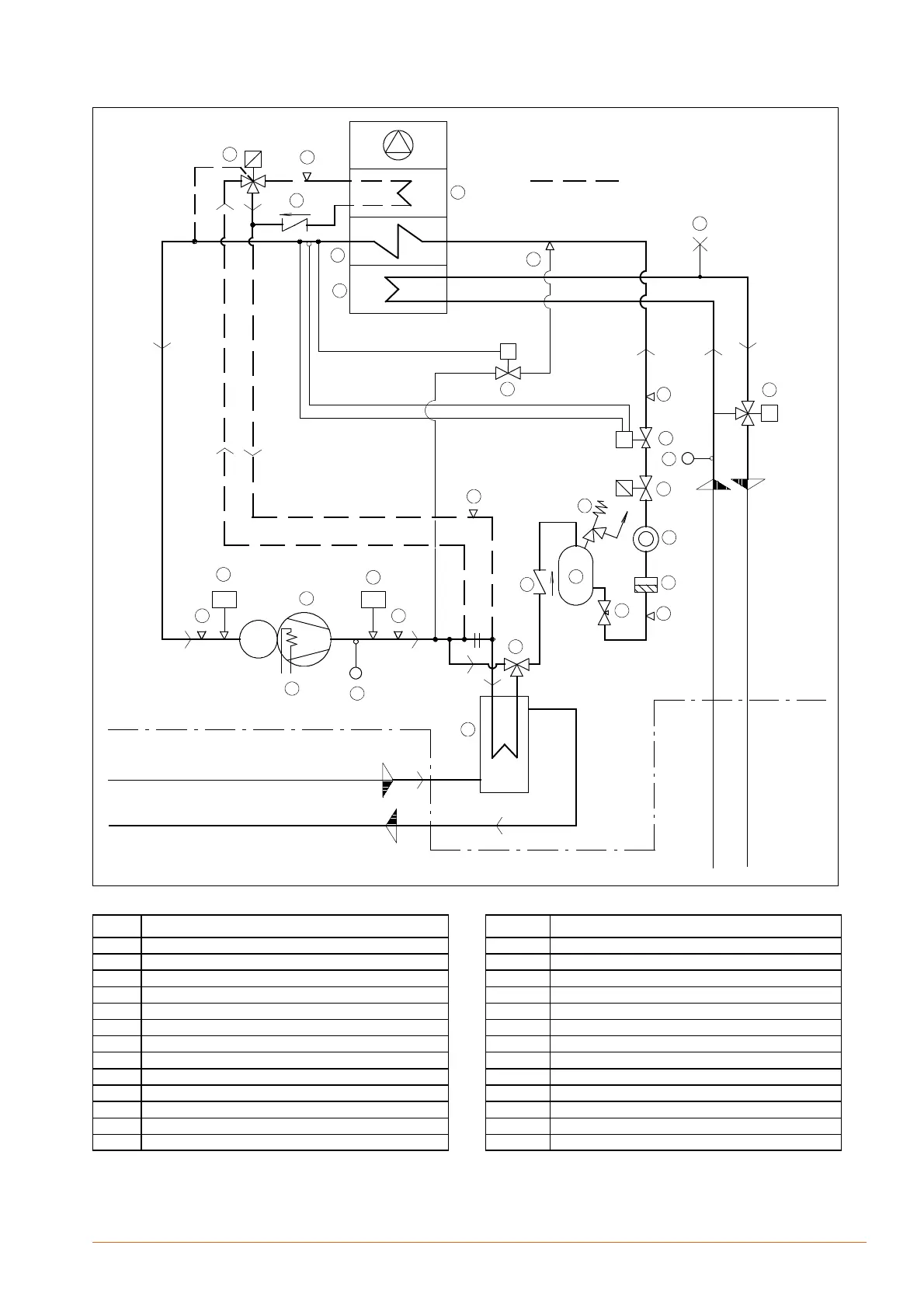

Fig. 5 --- Refrigerant diagram Liebert HPM S1G---S2 G H (R410A)
2
44
23
MC
16
1
12
3
19
18
15
20
12
11
6
14
5
13
FG
8
9
7
10
17
6
P
22
21
6
6
T
24
COOLING WATER INLET
COOLING WATER OUTLET
CHILLED WATER INLET
CHILLED WATER OUTLET
SUPPLY LIMIT
SUPPLY LIMIT
25
66
ONLY WITH REHEATING COIL OPTION
POS. DESCRIPTION
1 Compressor
2 Crankcase h eater
3 High pressure switch (HP)
4 Water cooled condenser
5 Liquid receiver
6 Access valve
7 Safety valve
8 Filter dryer
9 Sight glass
10 Thermostatic expansion valve
11 Hot gas solenoid valve (optional)
12 Check valve
13 Shut---off valve
POS. DESCRIPTION
14 Reheating coil (optional)
15 Evaporator
16 Low pressure switch (LP)
17 Shut---off solenoid valve
18 Head pressure control valve
19 C hilled water 3--- way valve
20 Chilled water coil
21 Hot gas valve injection
22 Hot gas injector
23 Inlet water sensor
24 Safety thermostat
25 Manual bleed valve
