CENTER OF
GRAVITY
HEAVY SIDE!
Unit weight is unbalanced.
Improper lifting can cause
personal injury, death, or
damage to unit. Lift unit
fromthis side only.
WARNING
1
English
Liebert HPM --- A/W/F/D/H

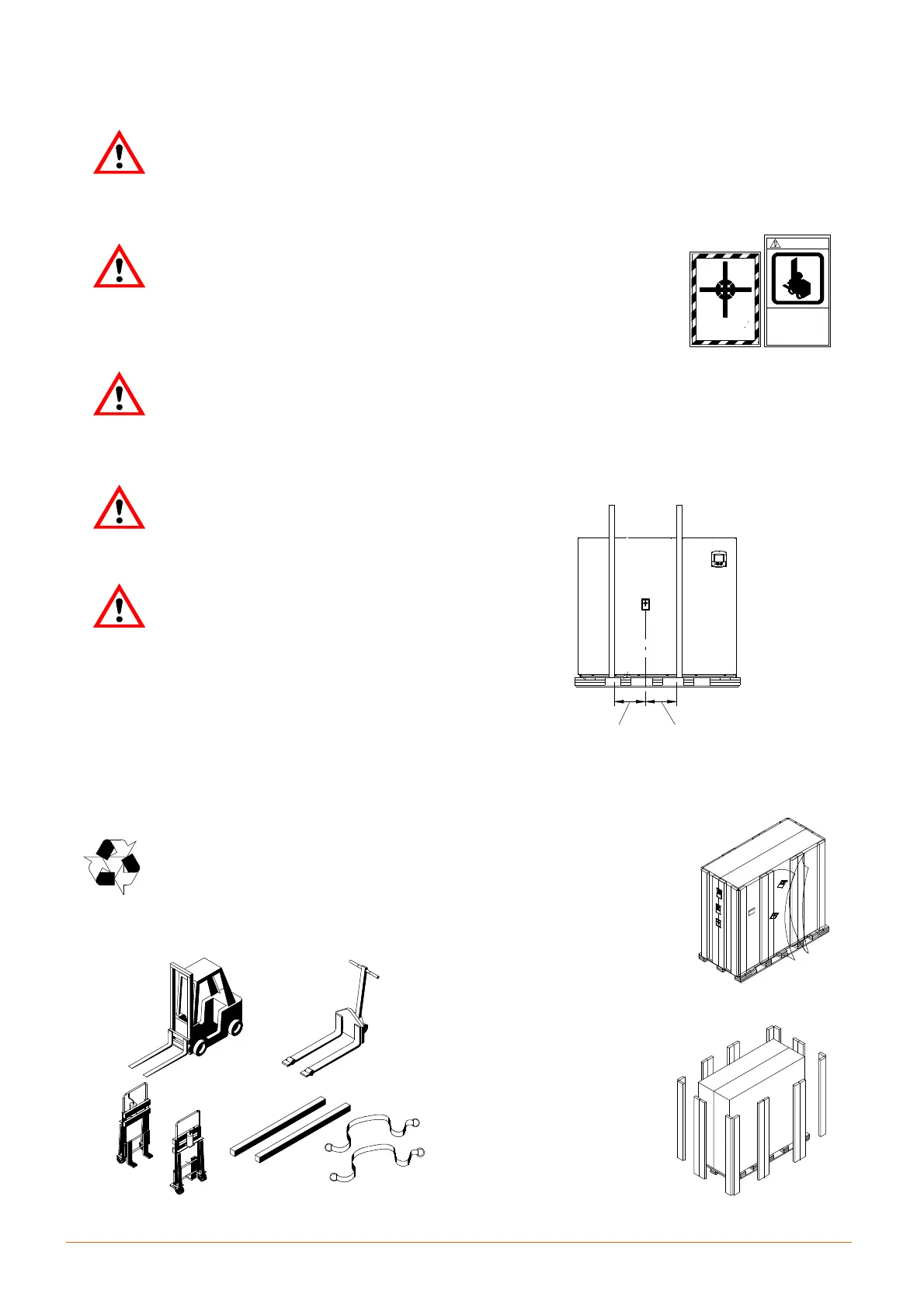

1 --- Preliminary operations
1.1 -- Safety Information
WARNING!
Risk of top---heavy unit falling over! Improper
handling can c ause equipment damage, inju-
ry, or death ! Read all of the f ollowin g instruc-
tions before attempting to move, lift, remove packaging
from, or preparing unit for installation.
CAUTION!
Risk of sharp edges, splinters and exposed fa-
steners! Can cause personal injury! Only pro-
perly trained personnel wearing appropriate
safety headgear, gloves, shoes and glasses should attempt
to move, lift, remove packaging from the unit or prepare the
unit for installation.
CAUTION!
Risk of overhead interference! Can cause unit
and/or structure damage! The unit may be too
tall to fit through a doorw ay while on the skid.
Measure the unit and doorway heights and refer to the instal-
lation plans prior to moving the unit to verify clearances.
CAUTION!
Risk of unit damage if improperly stored! Keep
the unit vertically upright, indoors, and protec-
ted from dampness, freezing temperatures,
and contact damage.
ATTENTION!
The conditi oner must never be installed o ut of
doors.
See drawi ngs in Enclosures C.
1.2 -- Equipment Inspection
Upon arrival of the unit, and before unpacking, verify that the
labeled equipment matches t he B il l of Lading. Carefully in-
spect all items for either visible or concealed damage. Dam-
age should be immediately reported to the carrier and a
damage claim f
illed in with a copy sent to your sales repres-
entative.
1.3 -- Packing material
Allmaterialusedtopackagethisunitisrecycla-
ble. Please save for future use, or dispose of
the material appropriately.
1.4 -- Recommended Unit Handling Equipment
Fork Lift
Piano
Jacks
Pallet Jack
Spreader
Bars and
Slings
1.5 -- Handling the Unit While Packaged
S If possible transport unit using a fork lift or pallet
jack;
otherwise use a crane with slings and spreader bars.
S If using a fork lift or pallet jack, make sure the fork (if ad-
justable) are spread to the widest allowable distance to
still fit under the skid. Also, ensure the fork length is suit-
able for the unit length.
S When moving the packaged unit with a fork lift, lift the unit
from the designated side of the unit no higher than
152mm off the ground. If circumstances require the unit
to be lifted higher than 152mm great care shall be exer-
cised and all by ---standing
personnel are to be no closer
than 5m to the lift point of the
unit.
S Always refer to the location of
the Center of Gravity indicat-
ors when lifting the unit from
any other side.
S Use the center of gravity indicators on the unit panels to
determine the position of the slings.
S Center of gravity varies per unit size and selected op-
tions.
S Slings shall be equall y spaced on either side of the cen-
ter of gravity indicator.
S Place the slings between the unit bottom rails and the
skid.
Equal
Distance
Equal
Distance
1.6 -- Unpacking the Unit
1) Remove the exterior
stretch wrap packaging
material from around the
unit, exposing the pro-
tect ive corner and side
packaging planks.
2) Remove the corner and
side packaging planks
from the unit, exposing
the bag over the unit. The
bag may remain in place
for dust and panel prot ec-
tion, or be removed for im-
mediate unit installation.
To Next Page
