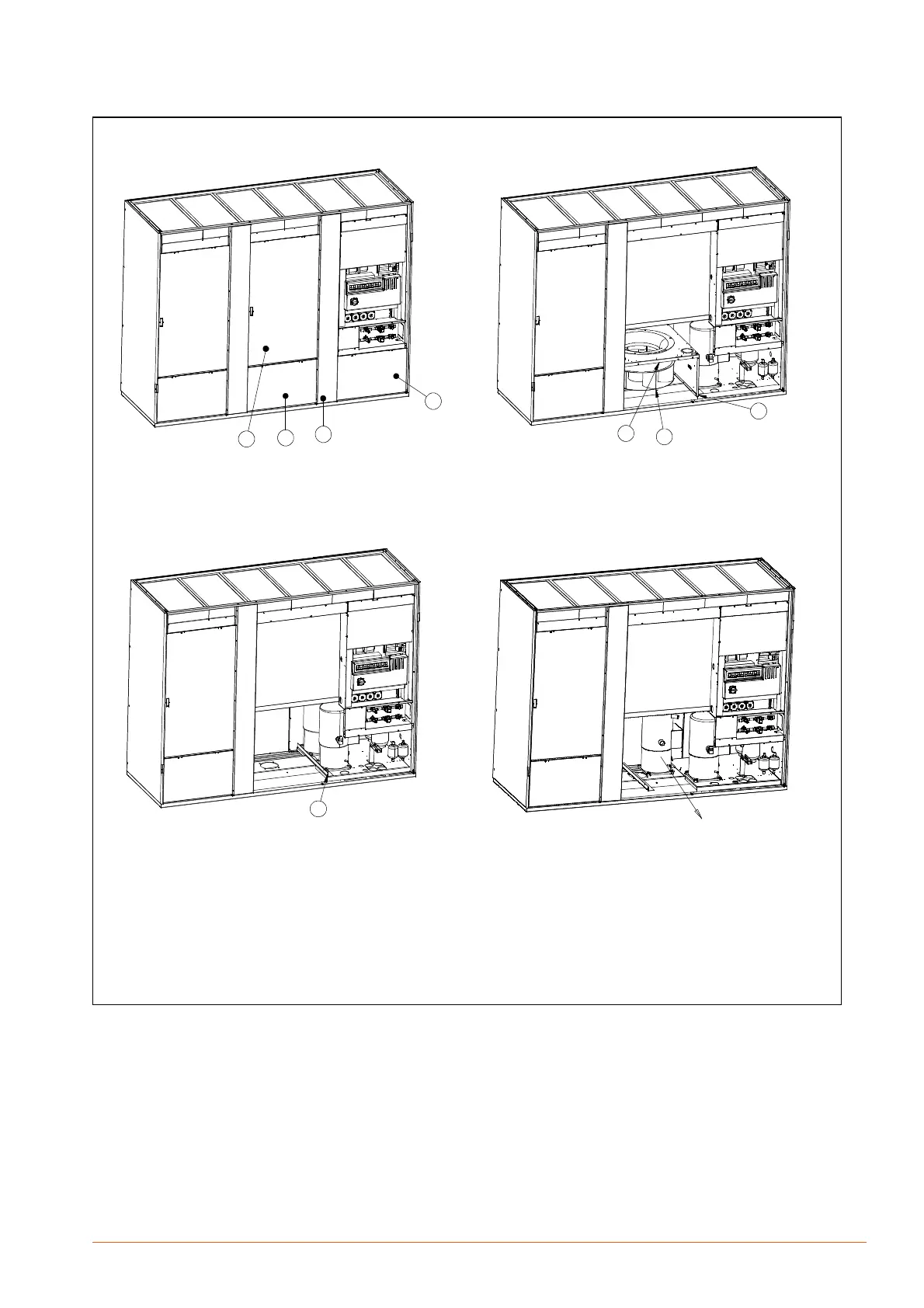

Fig. 1 Compressor removal (Liebert HPM L8F --- 9H only)
1
2
3
4
STEP 1
5
6
7
STEP 2
8
STEP 3 STEP 4
STEP 1: remove 1, 2, 3 and 4
STEP 2: remove 5, 6 and 7
STEP 3: remove 8, remove screws from compressor
STEP 4: remove compressor
