Refrigeration circuits
E --- 8 Liebert HPM --- A/W/F/D/H
English

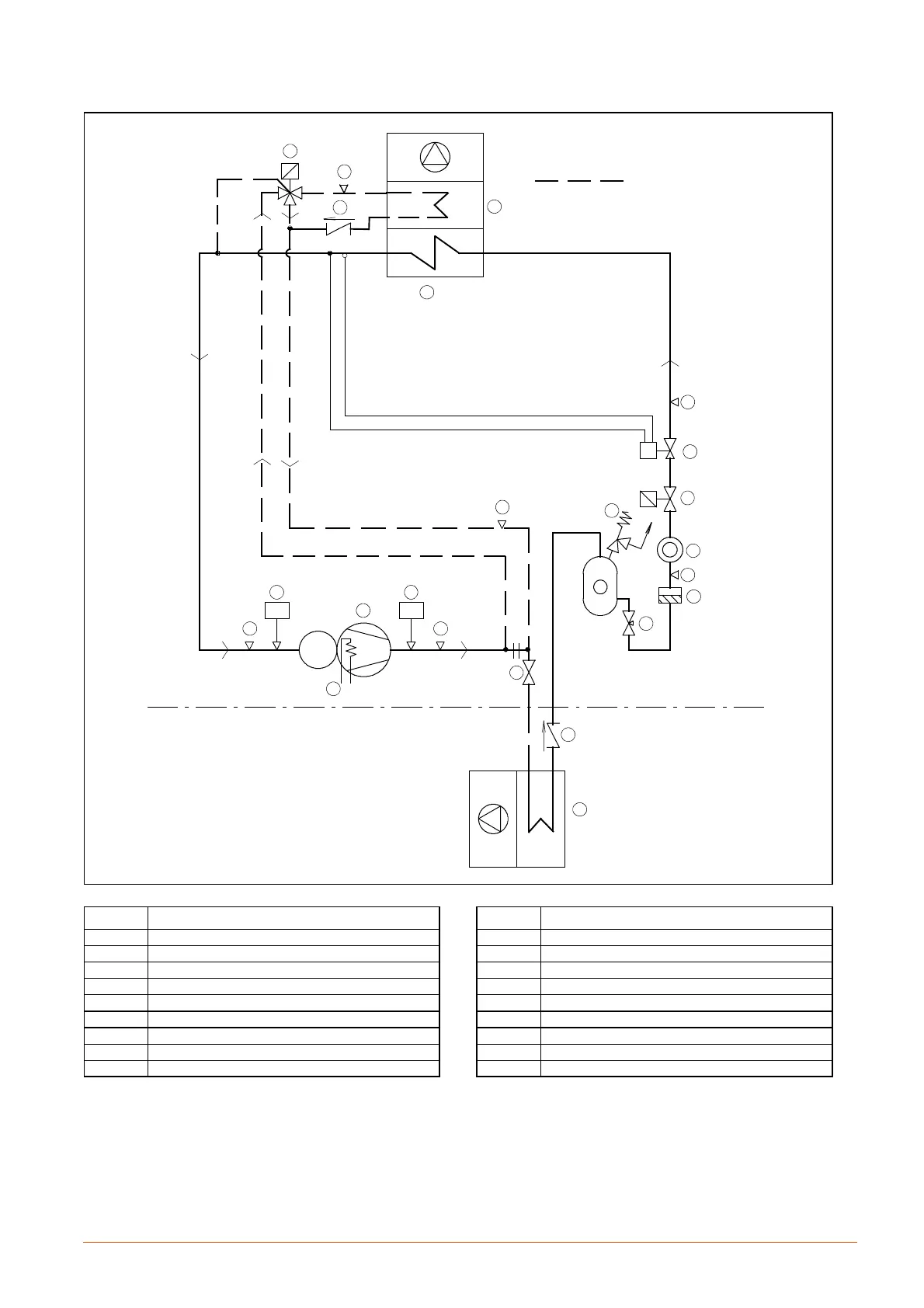

Fig. 8 --- Refrigerant diagram Liebert HPM M2H---M5B A (R410A)
2
MC
1
3
15
12
6
14
5
13
FG
8
9
7
10
17
11
44
12
13
6
6
SUPPLY LIMIT SUPPLY LIMIT
CONDENSING UNIT
6
6
16
6
ONLY WITH REHEATING COIL OPTION
POS. DESCRIPTION
1 Compressor
2 Crankcase heater
3 High pressure switch (HP)
4 Air cooled condenser
5 Liquid receiver
6 Access valve
7 Safety valve
8 Filter dryer
9 Sight glass
POS. DESCRIPTION
10 Thermostatic expansion valve
11 Hot gas solenoid valve (optional)
12 Check valve
13 Shut---off valve
14 Reheating coil (optional)
15 Evaporator
16 Low pressure switch (LP)
17 Shut---off solenoid valve
18 ---
