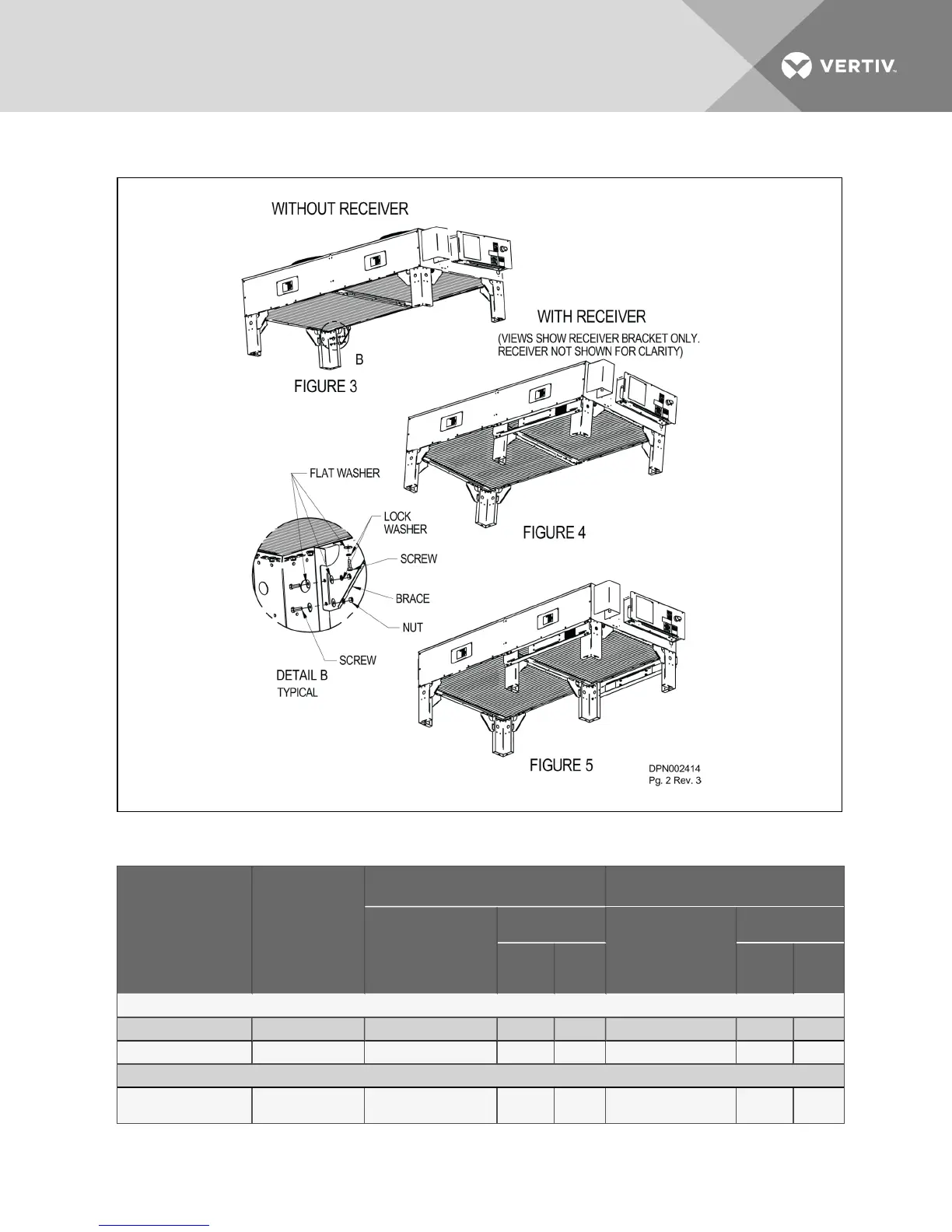

Figure 10.2 Seismic anchoring for a two-fan Liebert MC
Model #
Figure # in Figure
10.2 above
Importance Factor Iρ= 1.0 Importance Factor Iρ= 1.5
Maximum
Compressive
Reaction lb
Maximum Anchor
Maximum
Compressive
Reaction lb
Maximum Anchor
Tensile
lb
Shear
lb
Tensile
lb
Shear
lb
MCS056
Without Receiver Figure 3 63 20 23 78 35 34
With Receiver Figure 5 69 15 30 75 30 45
MCM080
Single or Dual Circuit
without Receivers
Figure 3 94 30 34 116 53 50
Table 10.2 Seismic anchoring loads for a two-fan Liebert MC
