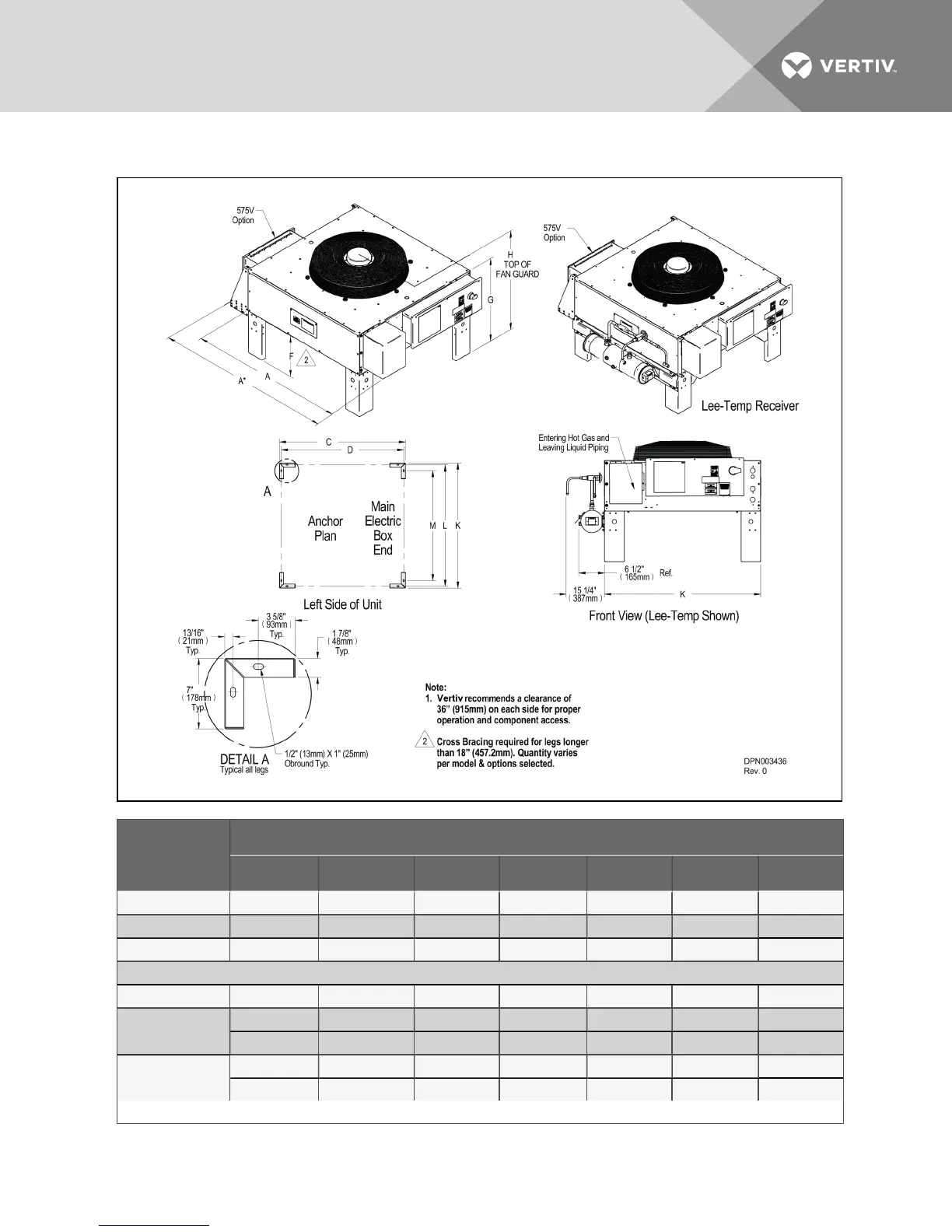

Figure 2.1 Condenser planning dimensional data—MCS028, MCM040 and MCL055
LiebertModel No.
Cabinet Dimensions in. (mm)
A A* (575Vonly) C D K L M
MCS028 50-5/8 (1287) 58-7/8 (1495) 44-1/8 (1120) 42-1/2 (1080) 42-1/2 (1080) 40-7/8 (1038) 35-7/8 (910)
MCM040 57-3/16 (1453) 65-3/8 (1661) 48 (1219) 46-5/16 (1177) 46 (1168) 44-3/8 (1127) 39-5/16 (999)
MCL055 68 (1727) 77 (1956) 56 (1422) 54-3/8 (1381) 55-1/2 (1410) 53-78 (1368) 48-3/4 (1238)
Leg-height Dimensions in. (mm)
All Models F 18 (457) 36 (914) 48 (1219) 60 (1524) -- --
MCS028
MCM040
G 31-5/8 (803) 49-5/8 (1260) 61-5/8 (1565) 73-5/8 (1870) -- --
H 39-5/8 (1006) 57-5/8 (1464) 69-5/8 (1768) 81-5/8 (2073) -- --
MCL055
G 35-7/8 (911) 53-7/8 (1368) 65-7/8 (1673) 77-7/8 (1978) -- --
H 43-5/8 (1108) 61-5/8 (1565) 73-5/8 (1870) 85-5/8 (2175) -- --
Source: DPN003436, Rev. 0
