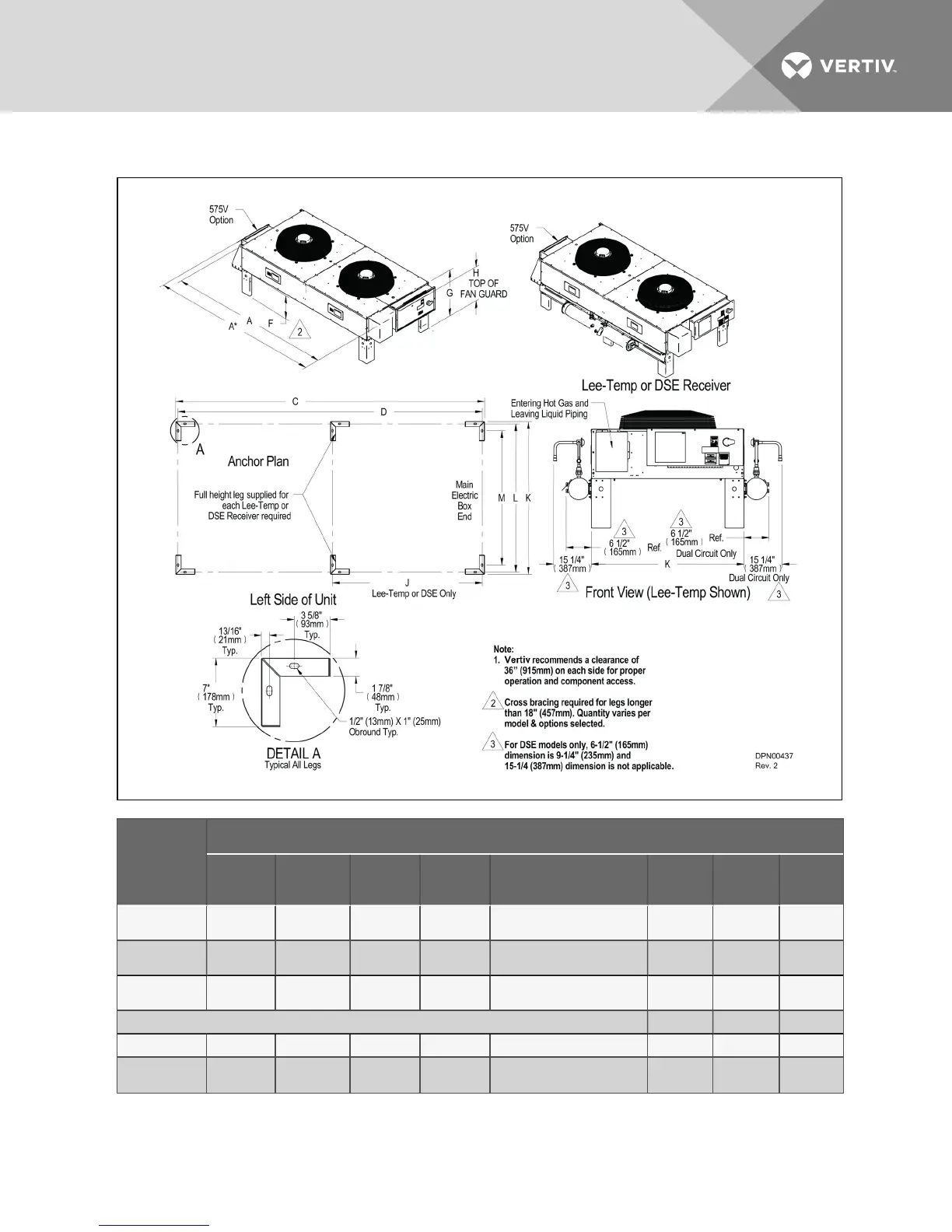

Figure 2.2 Condenser planning dimensional data—MCS056, MCM080, MCL110
LiebertModel
No.
Cabinet Dimensions in. (mm)
A
A* (575V
only)
C D
J Lee-Temp or DSE
Receivers Only
K L M
MCS056
94-7/8
(2411)
103-1/8
(2619)
88-3/8
(2245)
86-3/4
(2203)
42-1/2 (1079)
42-1/2
(1080)
40-7/8
(1038)
35-7/8
(910)
MCM080
105-1/4
2674)
113-7/16
(2882)
96-1/16
(2440)
94-7/16
(2398)
45-5/19 (1177) 46 (1168)
44-3/8
(1127)
39-5/16
(999)
MCL110
124-1/8
(3152)
133-1/8
(3381)
112-1/8
(2848)
110-1/2
(2806)
54-3/8 (1381)
55-1/2
(1410)
53-7/8
(1368)
48-34
(1238)
Leg-height Dimensions in. (mm)
All Models F 18 (457) 36 (914) 48 (1219) 60 (1524) -- -- --
MCS056
MCM080
G 31-5/8 (803)
49-5/8
(1260)
61-5/8
(1565)
73-5/8 (1870) -- -- --
