LiebertModel
No.
Dimensions in. (mm)
A
A*
(57Vonly)
B C D E
J
Lee-Temp or DSE
Receivers Only
K L M
MCL165
180-1/4
(4578)
189-1/4
(4807)
73-7/16
(1866)
168-1/4
(4274)
110-1/2
(2806)
56-1/8
(1425)
54-3/8 (1381)
55-1/2
(1410)
53-7/8
(1368)
48-3/4
(1238)
Leg-height Dimensions in. (mm)
MCL165
F 18 (457) 36 (914) 48 (1219) 60 (1524) --
G 35-7/8 (911) 53-7/8 (1368) 65-7/8 (1673) 77-7/8 (1978) --
H 43-5/8 (1108) 61-5/8 (1565) 73-5/8 (1870) 85-5/8 (2175) --
Source: DPN003438, Rev. 2

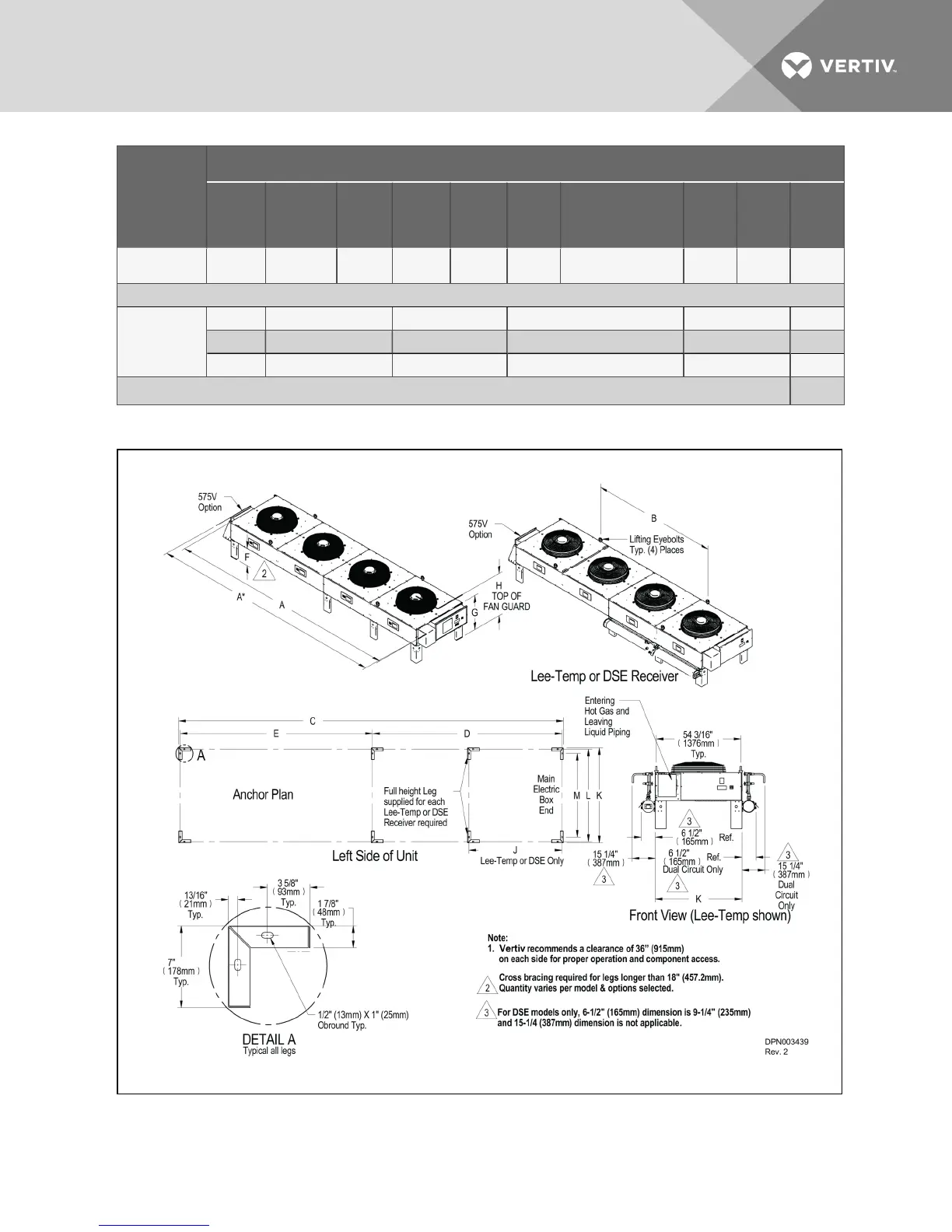

Figure 2.4 Condenser planning dimensional data—MCM160 and MCL220
