See Low-voltage Control Wiring—CANbus Communication andInterlock Connections on page43 for
cable and wire requirements.

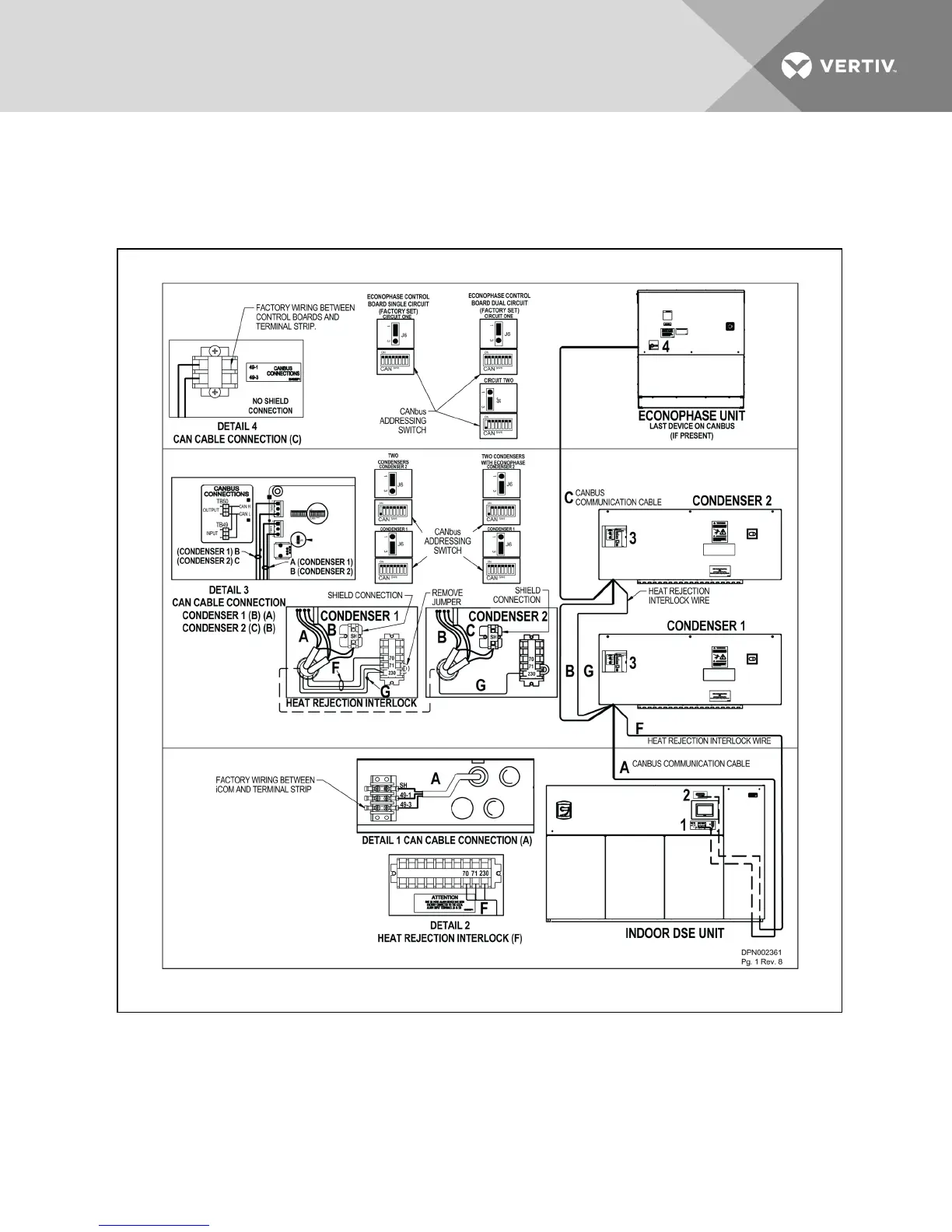

Figure 4.3 CANbus communications and interlock connections
betweenaLiebertDSE,twoLiebertMCcondensers and a Liebert EconoPhase
CANbus Cable: A, B, C
Interlock Wire: F, G
See Low-voltage Control Wiring—CANbus Communication andInterlock Connections on page43 for
cable and wire requirements.
