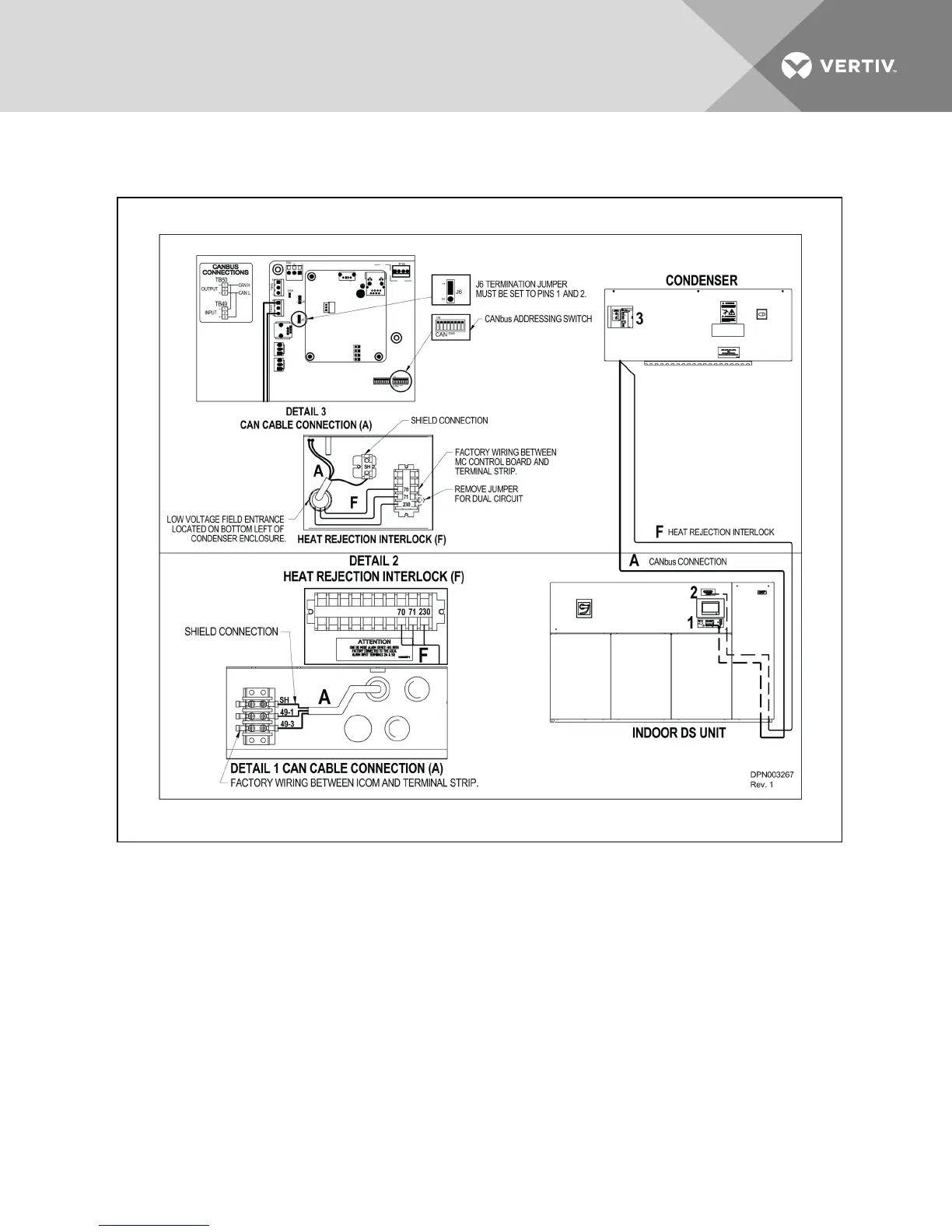

Figure 4.4 CANbus communications and interlock connections between a Liebert DS
andLiebertMCcondenser
CANbus Cable: A
Interlock Wire: F
See Low-voltage Control Wiring—CANbus Communication andInterlock Connections on page43 for
cable and wire requirements.
Vertiv | Liebert® MC™ Installer/User Guide | 46
