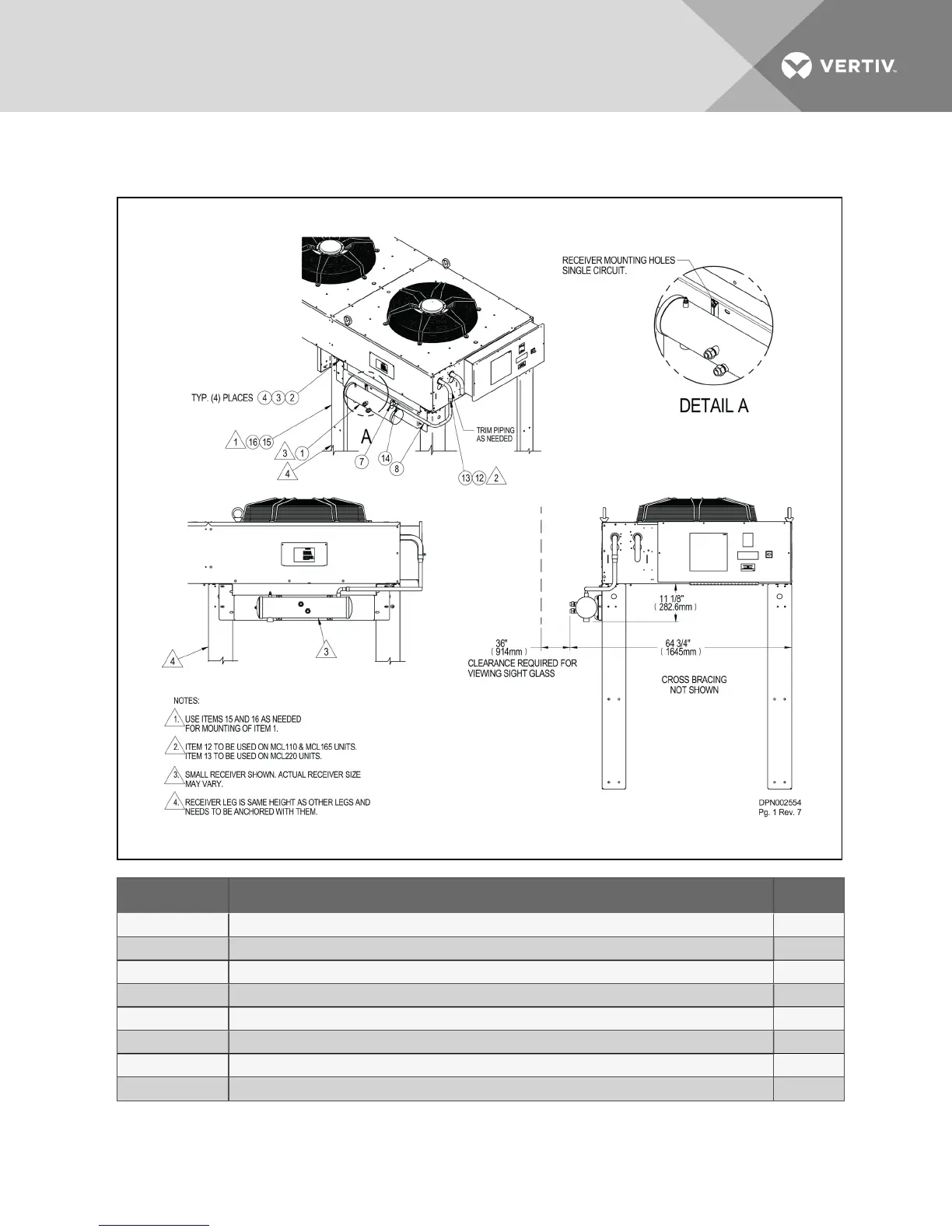

Figure 5.13 Typical receiver Liebert DSE mounting, MCL110, MCL165 and MCL220 single-circuit
condenser, left-sidecondenser outlet receiver
Item No. Description Qty
1 Receiver and Bracket Assembly 1
2 Cap Screw HXDIN933M8-1.25X25A2 8
3 Fender Washer DIN9021 M8X24 A2 12
4 Lock Nut Hex NYL INSR M8 8
7 90° Elbow FTGXFTG 7/8” Copper 1
8 Copper Formed Tube 1-1/8” 1
12 Coupling Copper 1-1/8” 1
13 Reducer Copper CXC 1-3/8”x1-1/8” 1
Vertiv | Liebert® MC™ Installer/User Guide | 70
