Item No. Description Qty
14 Reducer Copper CXC 1-1/8”x7/8” 1
15 Support Leg 1
16 Fastener Assembly: Cap Screw, Lock Washer, Fender Washer 4

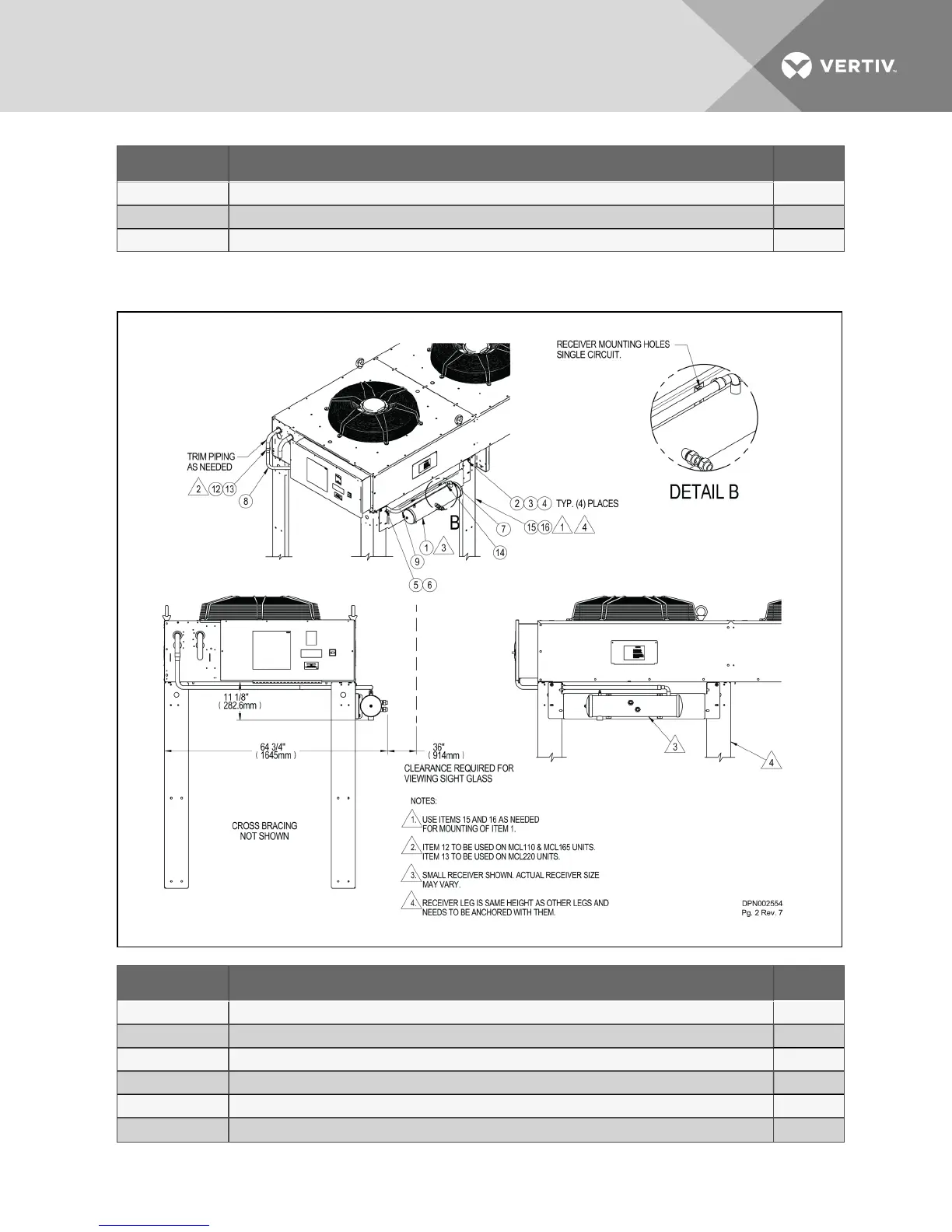

Figure 5.14 Typical receiver Liebert DSE mounting, MCL110, MCL165 and MCL220 single-circuit
condenser, right-side condenser outlet receiver
Item No. Description Qty
1 Receiver and Bracket Assembly 1
2 Cap Screw HXDIN933M8-1.25X25A2 8
3 Fender Washer DIN9021 M8X24 A2 12
4 Lock Nut Hex NYL INSR M8 8
5 Clamp Omega 7/8” 7
6 Screw SD HWH YZ 10-16 x 5/8 2
Vertiv | Liebert® MC™ Installer/User Guide | 71
