Item No. Description Qty
7 90° Elbow FTGXFTG 7/8” CU 1
8 Copper Formed Tube 1-1/8” 1
9 Copper Formed Tube 1-1/8” 2
12 Coupling Copper 1-1/8” 1
13 Reducer Copper CXC 1-3/8”x1-1/8” 1
14 Reducer Copper CXC 1-1/8”x7/8” 2
15 Support Leg 1
16 Fastener Assembly: Cap Screw, Lock Washer, Fender Washer 4

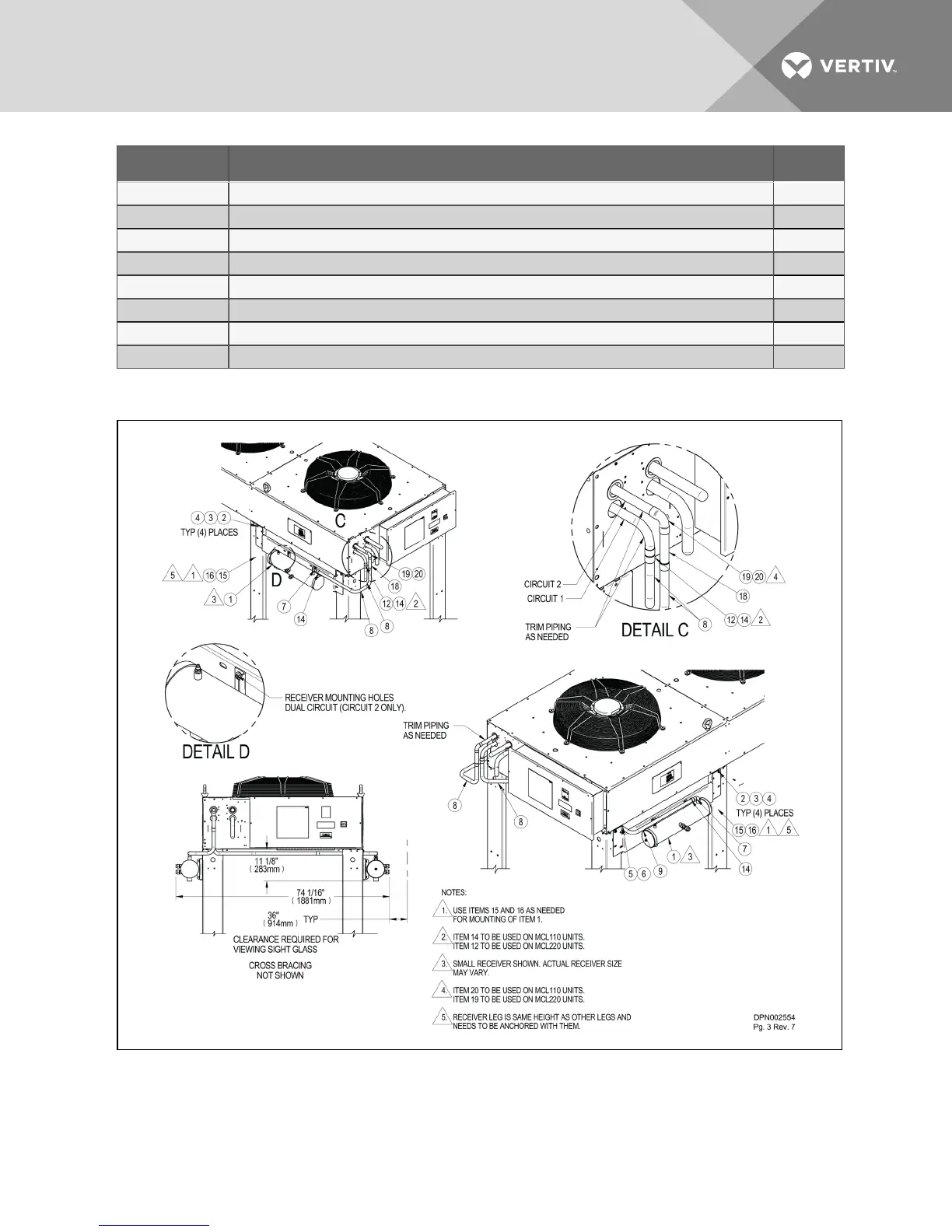

Figure 5.15 Typical receiver Liebert DSE mounting, MCL110 and MCL220 dual-circuit condenser,
twooutlet receivers
Vertiv | Liebert® MC™ Installer/User Guide | 72
