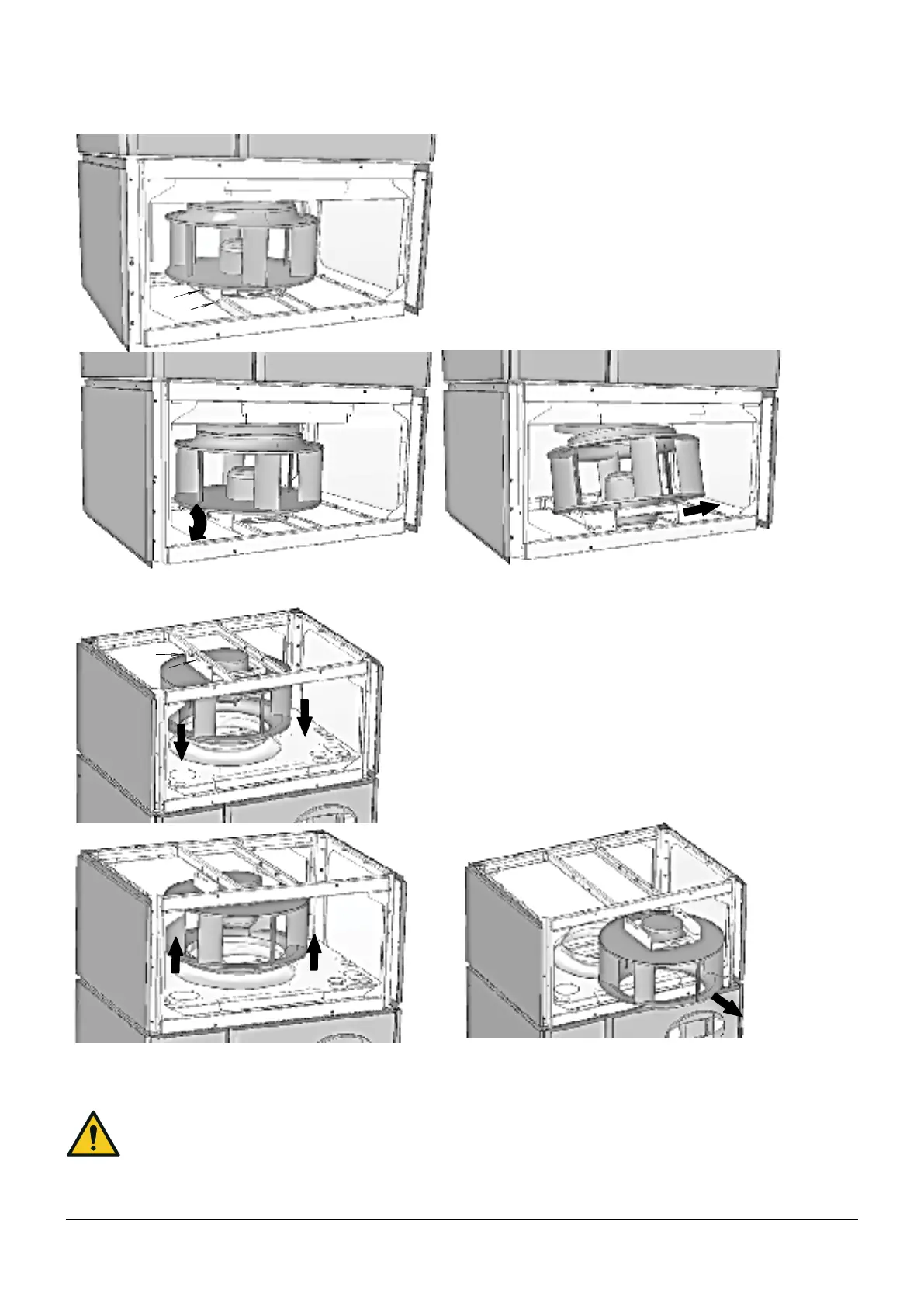

Downow Up and Downow Frontal v ersions
1) Disconnect the fan electrical cable f rom the
connector.
2) Remove the 2 front screws “a” from the fan
support (one screw on each side of the slid-
ing bars)
3) Loosen the 2 rear screws “b” of the fan sup -
port (one screw on each side of the sliding
bars)
4) Slide down the fan by pulling the handle.
5) Remove completely the 2 screws “b” on the
back of the fan.
6) Pull the handle to slide the fan out of the bay
a
b
Upow versions
1) Disconnect the fan electrical cable f rom the
connector.
2) Remove the 2 front screws “a” from the fan
support (one screw on each side of the slid-
ing bars)
3) Remove the 2 rear screws “b” of the fan sup-
port (one screw on each side of the sliding
bars) and slowly put down the fan on the Fan
nozzle.
4) Lift the fan to move away it from the nozzle
and then pull it out from the fan bay.
a
b
10.6 - Dismantling the unit
The machine has been designed and built to ensure continuous operation.
The working life of some of the main components, such as the fan, depends on the maintenance that they receive.
The unit contains substances and components potentially hazardous for the environment, such as certain electronic and
electric components.
At the end of the useful life,when the unit is dismantled, the operation must be carried out by specialized refrigerating tech-
nicians.
The unit shall be delivered to suitable centers specialized for the collection and disposal of equipment containing hazardous substances
according to the national and European regulations.
