Enclosure D - Hydraulic and electrical connections
Liebert PCW - UM - 273895 - 04.10.2018 D - 4
Tab. 2 - Downow units, dimensions for Bottom, Top & Piping left Option
Unit Connection
PH025
PH030
PH035
PH040
PH046
PH045
PH060
PH066
PH070
PH080
PH081
PH091
PH095
PH100
PH110
PH111
PH136
PH145
PH161
PH170
PH201
Dimensions for Piping Bottom Option (Fig. 1.)
A 844 1200 1750 2050 2550 2950 3350
B 95 235 910 1060 1565 1855 2385
C 125 160 160 160 150 150 150
D 140 105 105 105 150 150 150
E 100 120 120 120 115 115 115
F 76 112 112 112 112 112 112
Dimensions for Piping Top & Piping left Option (Fig. 2.)
G 115 115 190 185 170 170 170
H NA 135 135 135 120 120 120
NA = Not Available

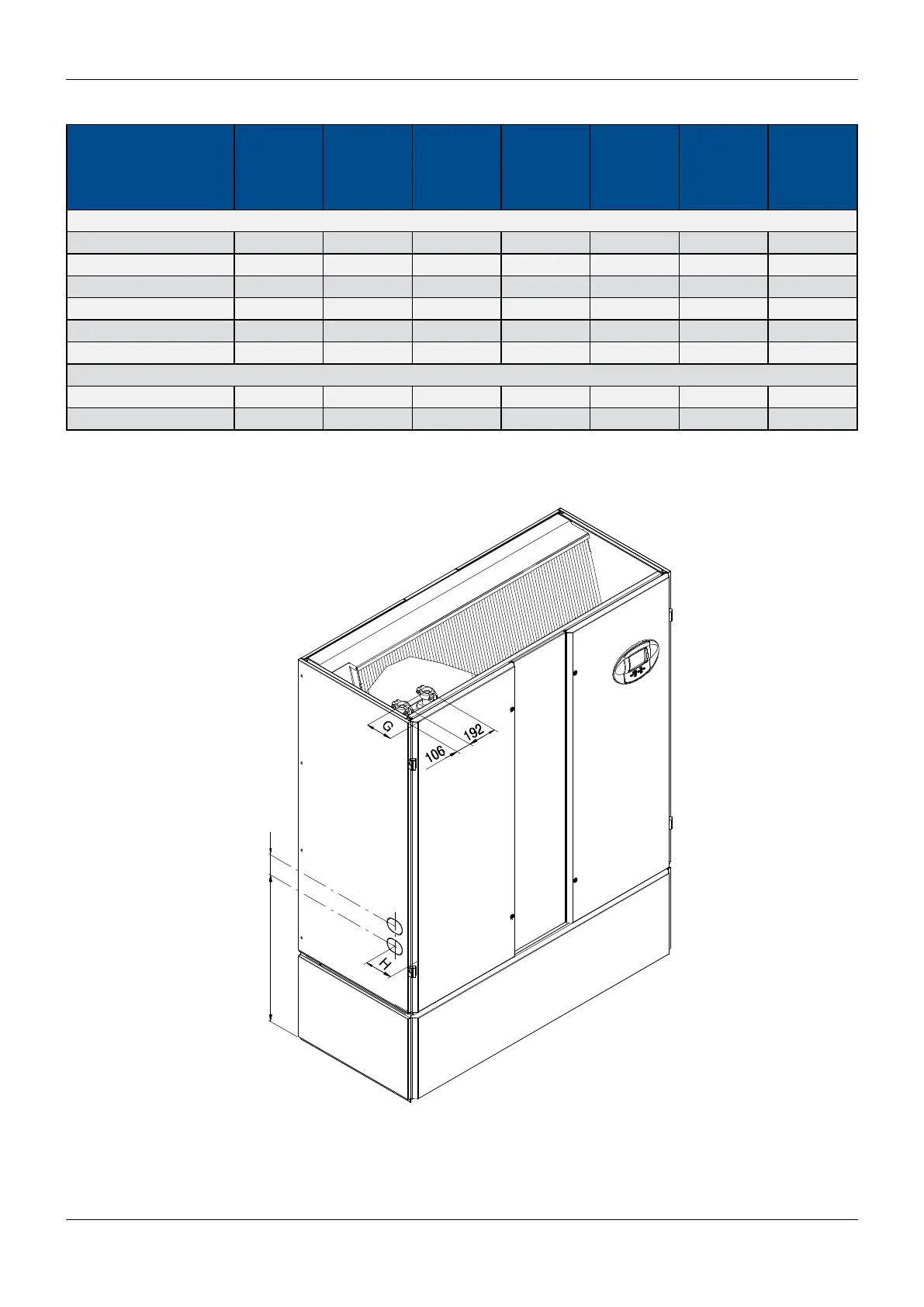

Fig. 2. Downow units, dimensions for Top & Piping left Option
ICW
OCW
1361010
ICW
OCW
