Enclosure D - Hydraulic and electrical connections
Liebert PCW - UM - 273895 - 04.10.2018 D - 6
Tab. 4 - Upow unit, Dimensions for Piping Bottom, Top & Piping left Option
Unit Connection PH025 PH030
PH035 PH040
PH046
PH045 PH060
PH066
PH070 PH080
PH081 PH091
PH095 PH100
PH110
Dimensions for Piping Bottom Option (Fig. 3.)
A 844 1200 1750 2050 2550
B 130 135 135 135 135
C 90 190 190 190 190
Dimensions for Piping Top & Piping left Option (Fig. 4.)
D NA 135 135 120 120
NA = Not Available

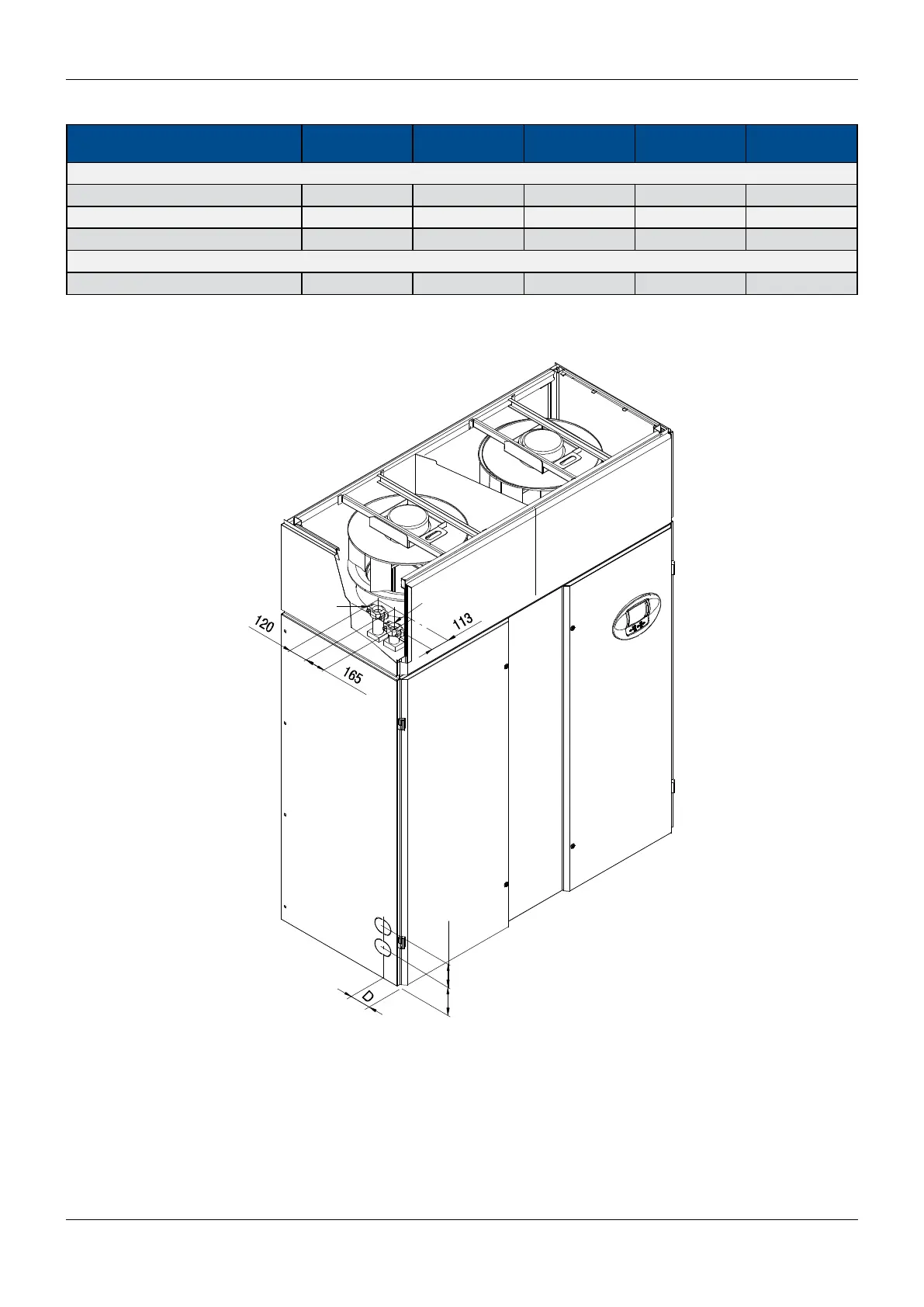

Fig. 4. Upow unit, Dimensions for Piping Top & Piping left Option
OCW
ICW
OCW
ICW
124
136
