Enclosure D - Hydraulic and electrical connections
Liebert PCW - UM - 273895 - 04.10.2018 D - 7

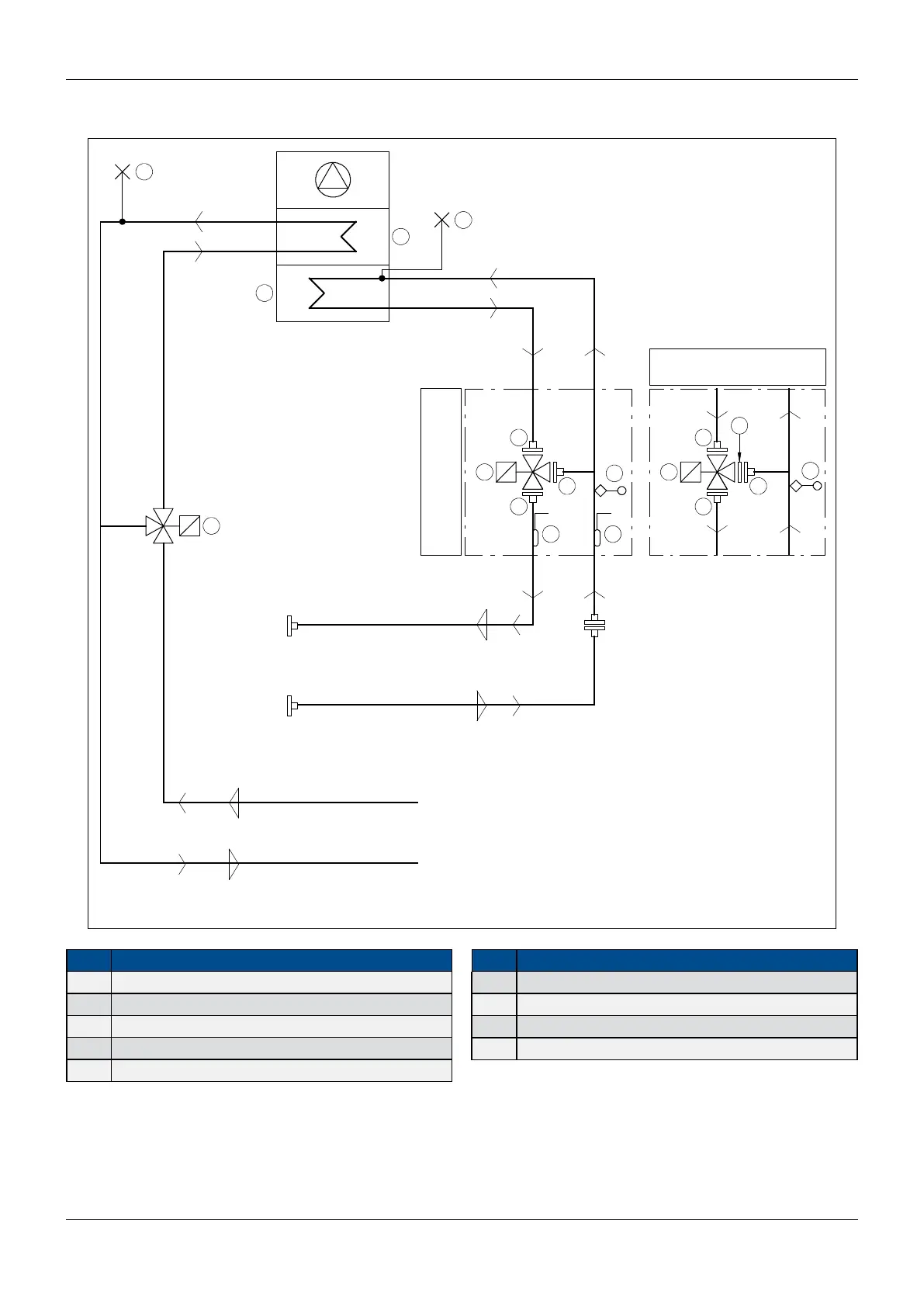

Fig. 5. Chilled water circuit (and hot water reheating coil - opt.) PH025...PH170 (single chilled water circuit)
B
A
1
3
2
AB
6
7
8
3
B
A
2
AB
5
4
4
4
4
4 4
B
A
AB
6
9
9
CHILLED WATER INLET
CHILLED WATER OUTLET
HOT WATER OUTLET
HOT WATER INLET
OPTION 3- WAY VALVE
OPTION 2- WAY VALVE
POS. Components
1 Chilled water coil
2 Chilled water 3- way valve
3 Manual bleed valve
4 Valve ttings
5 Blind disk - only with optional 2- way valve
POS. Components
6 Water temperature sensor (optional)
7 Reheating coil (optional)
8 On/o 3- way valve (optional)
9 Flow transmitter (optional)
