E - 5
Enclosure E - Accessories
Liebert PCW - UM - 273895 - 04.10.2018

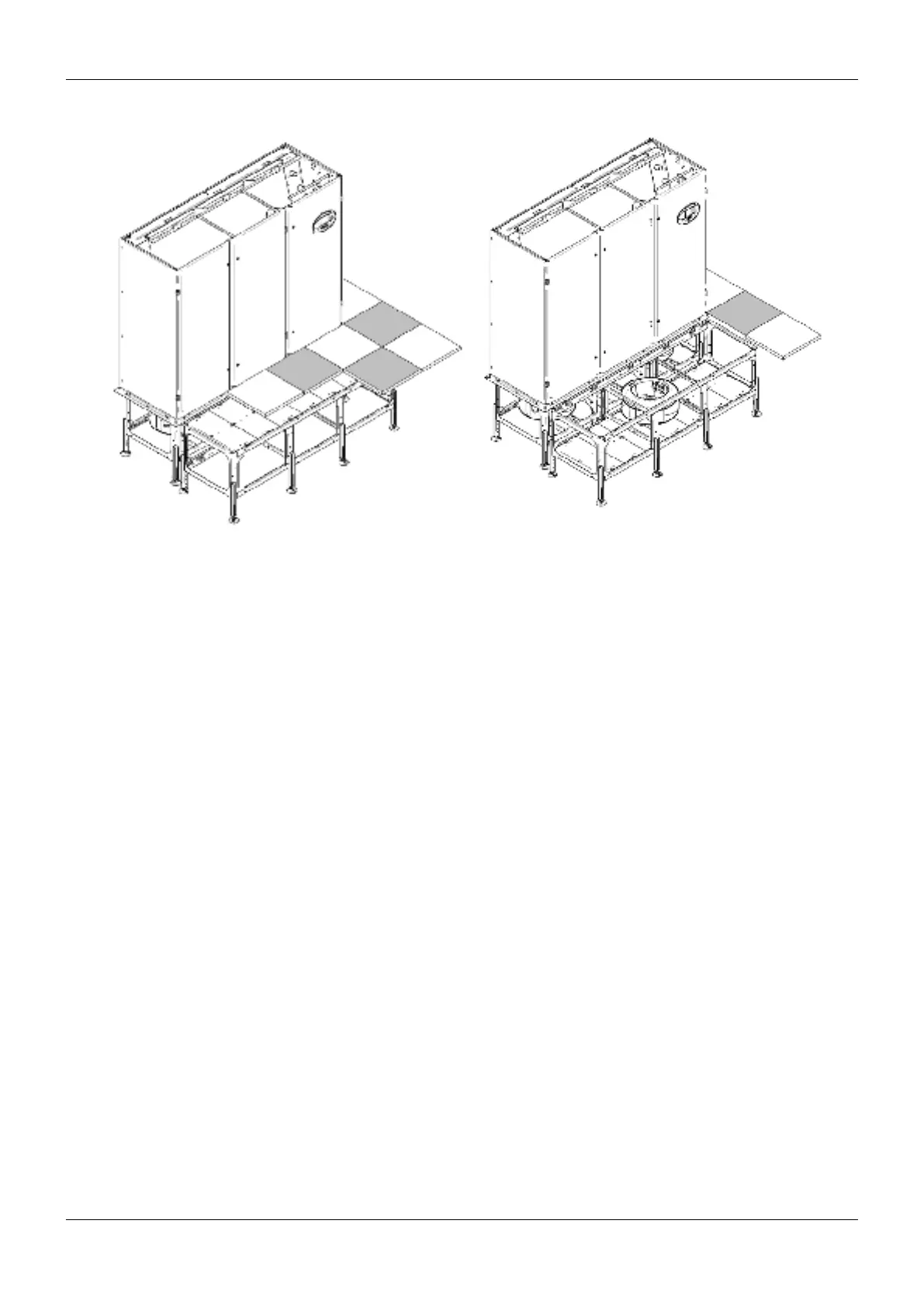

E.12. Fans maintenance kit (Not Available for PH 025 - 030)
Fans maintenance kit can be supplied on request to support tiles
on Liebert PCW Downow Down when installed with a raised oor.
Fans maintenance kit allows maintenance operations, in particular
fans replacement, when the fans are installed below the oor level.
Removing tiles on the frontal area, it is possible to lift some foot-
boards, moving them on the lower level, creating a service volume
in the raised oor.
With a correct installation, the maximum admitted vertical distribut-
ed load is 600 kg/m
2
.
Footboards are designed to support distributed load as indicated
above, and the maximum concentrated load is 150 kg (on the area
50x50 mm).
Fans maintenance kit must be earthed following the local rules.
