Rack-Mount Installation
CAUTION: Do not use the mounting brackets to lift the unit. Use the mounting brackets only to
secure the UPS to the rack.
See Figure 2-3 to install the unit in a rack. If you have an external battery, see Figure 2-4.

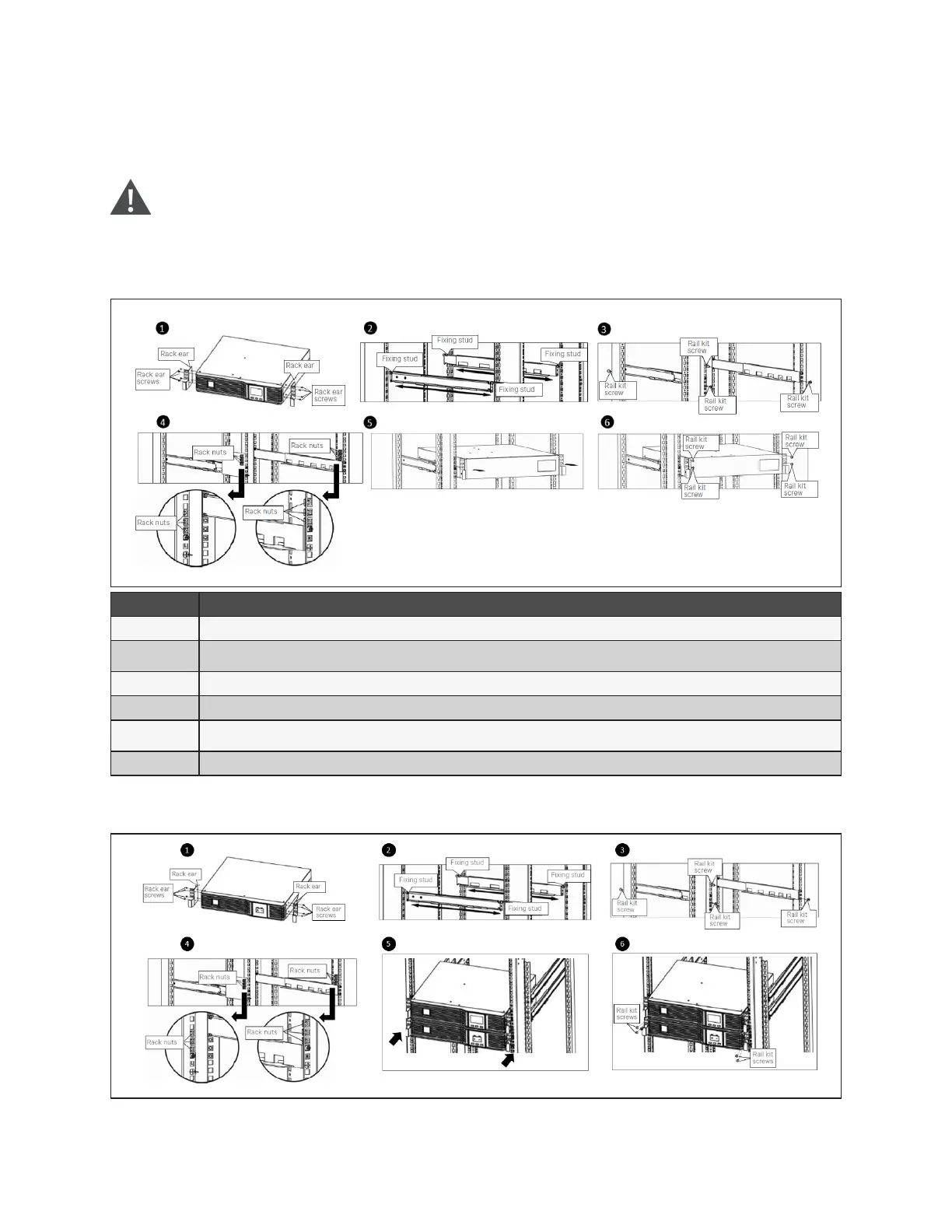

Figure 2-3 Installing the UPS in a rack
ITEM DESCRIPTION
1 Attach the rack ears with four rack ear screws to the front right and left sides of the UPS
2
Attach two xing studs to each rail. Select the desired U position and position the rails onto the rack using the xing
studs.
3 Attach two rail kit screws to each rail to secure the rails to the rack.
4 Attach three rack nuts on each side of the rack
5
Place the UPS with attached rack ears onto the rail supports. The batteries may be temporarily removed for easier
installation.
6 Attach two rail kit screws to each UPS rack ear and corresponding rack nut to secure the UPS to the rack.
Figure 2-4 Installing the external battery in a rack
