Protective Devices For Short Circuit Withstand Current
This kit contains three bypass fuses (one fuse for each phase) designed to guarantee the UPS withstand short
circuit at 30kVA. If this kit is installed, please refer to Figure 8-21 for the fuse blow-out curve when choosing the UPS
downstream switch and transformer load.
Manufacturer: Bussmann, model: 100FE Manufacturer: Vicfuse, model: VBS1749-100A

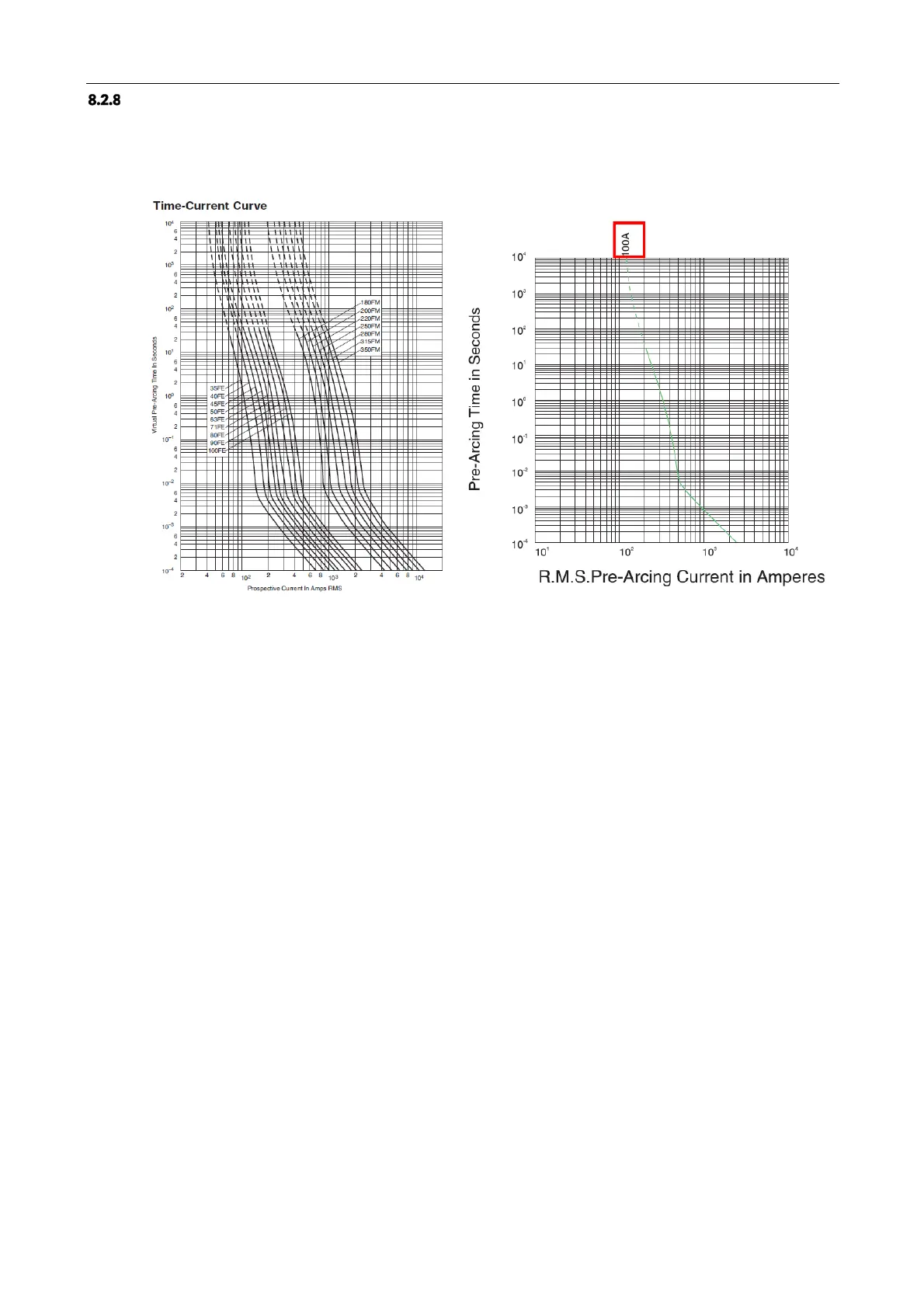

Figure 8-21 Schematic diagram of fuse blow-out
