NetSure
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[94]

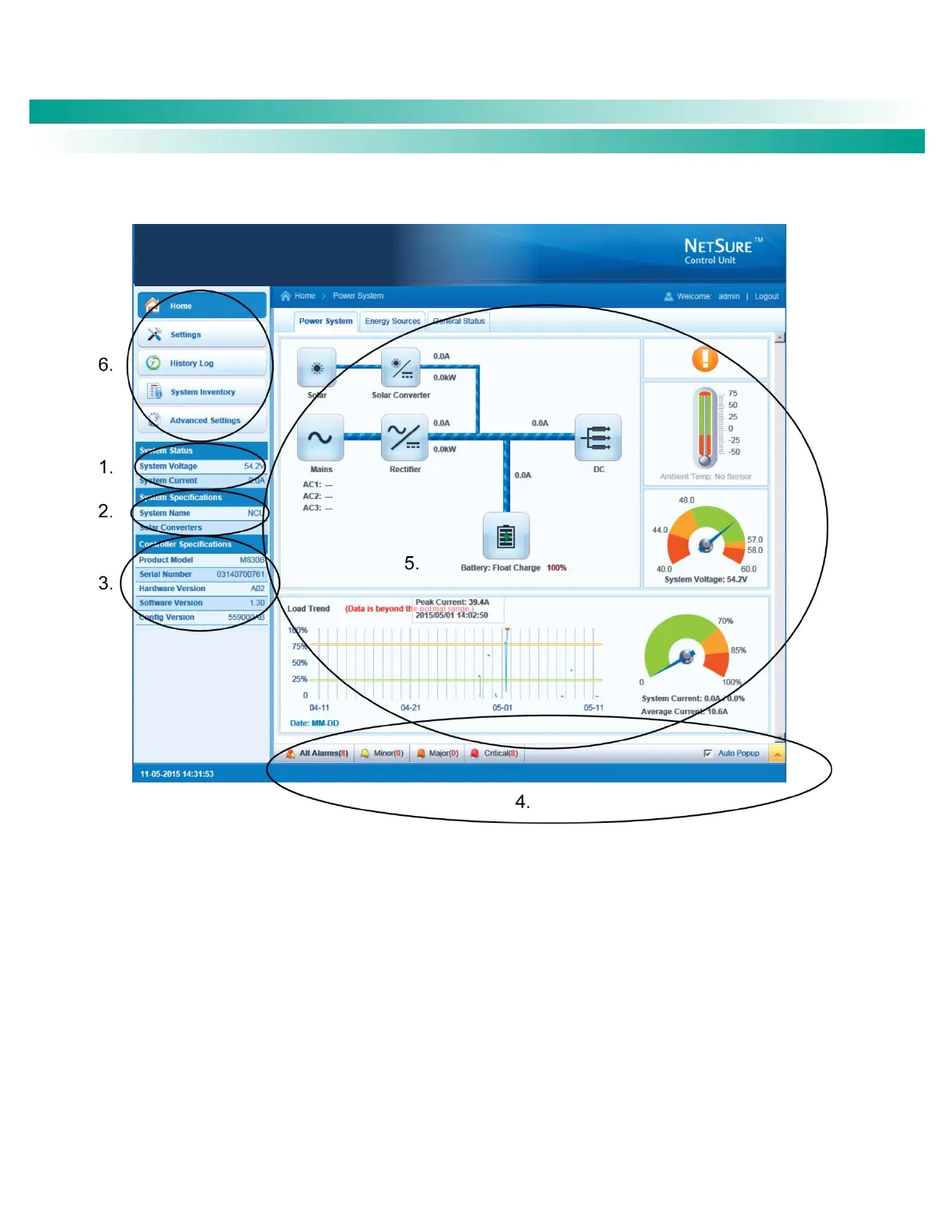

Figure 22. NCU Homepage with Solar Converters
The homepage window is divided into six areas:
1. System Status Information Area
2. System Specifications Information Area
3. Controller Specifications Information Area
4. Alarms Area
5. System Status Area
6. Menu Navigation Area
