Vertiv M830D User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[93]
Web Interface Screens
Overview of Web Function
This section provides descriptions of the Web Interface Screens. Refer also to “Passwords and Privilege Levels” on page 13 and “Using the
Web Interface” on page 15. For Local Display Menus, refer to “Local Display Menus” on page 70.
NOTE: Best viewed at 1024 x 768 resolution.
Homepage
In the Web Interface, after entering a valid User Name and Password and clicking LOGIN, the "Homepage" window opens. See also
“Logging into the Controller” on page 19.

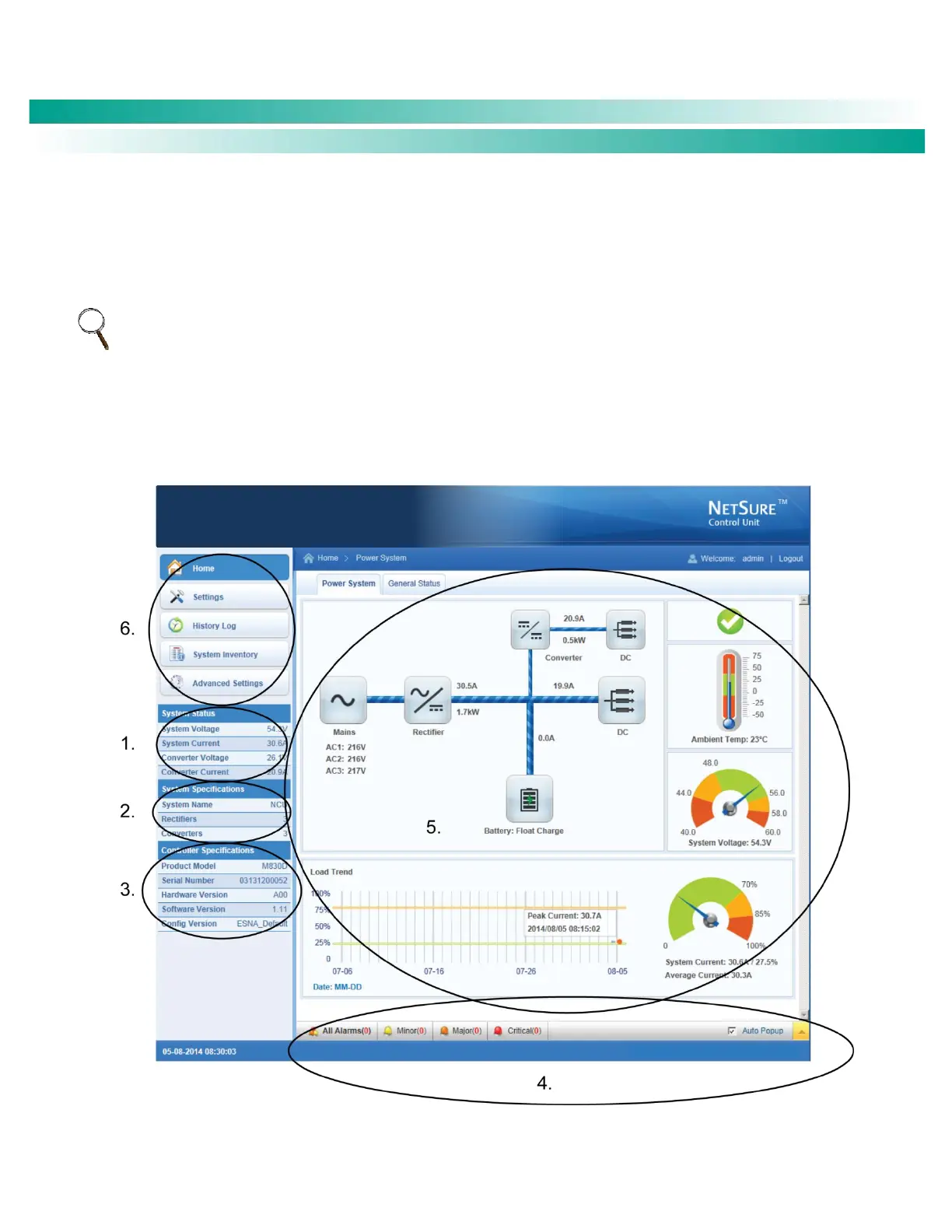

Figure 21. NCU Homepage
