Vertiv M830D User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[1]
Introduction
Preface
These instructions describe the complete functionality of the
NetSure™ Control Unit (NCU). Some functionality is dependent on
hardware connected to the NCU. Your system may not utilize all
the functionality described.
Refer also to the NCU Configuration Drawing (C-drawing)
furnished with your system for a list of factory default settings.
Overview
The NCU performs the following functions:
 Rectifier Control, including an Energy Optimization Mode
 Solar Converter and Converter Control
 System Components Monitoring and System Alarms
Generation (including recording alarms in logs)
 Operating Data Acquisition and Data Logs
 Battery Management
 Energy Management via Energy Optimization Mode
 Power Split Feature
 Diesel Management Feature
 Supervisory Module (SM Modules) Monitoring
 Hybrid Control Function (Supporting Generator, Solar
and Wind Energy Input, and Optimization).
 Maximum Current Limit Function
 Communications Function
 FIAMM SoNick (Sodium Nickel) Battery Interface
The NCU controls the system automatically via configured
parameters.
A User can interface with the NCU locally using the local keypad
and display or locally/remotely using the Web Interface.
The NCU can also be accessed via SNMP (v2 and v3) or TL1 (over
Ethernet). A machine-to-machine HTTP interface is also available.

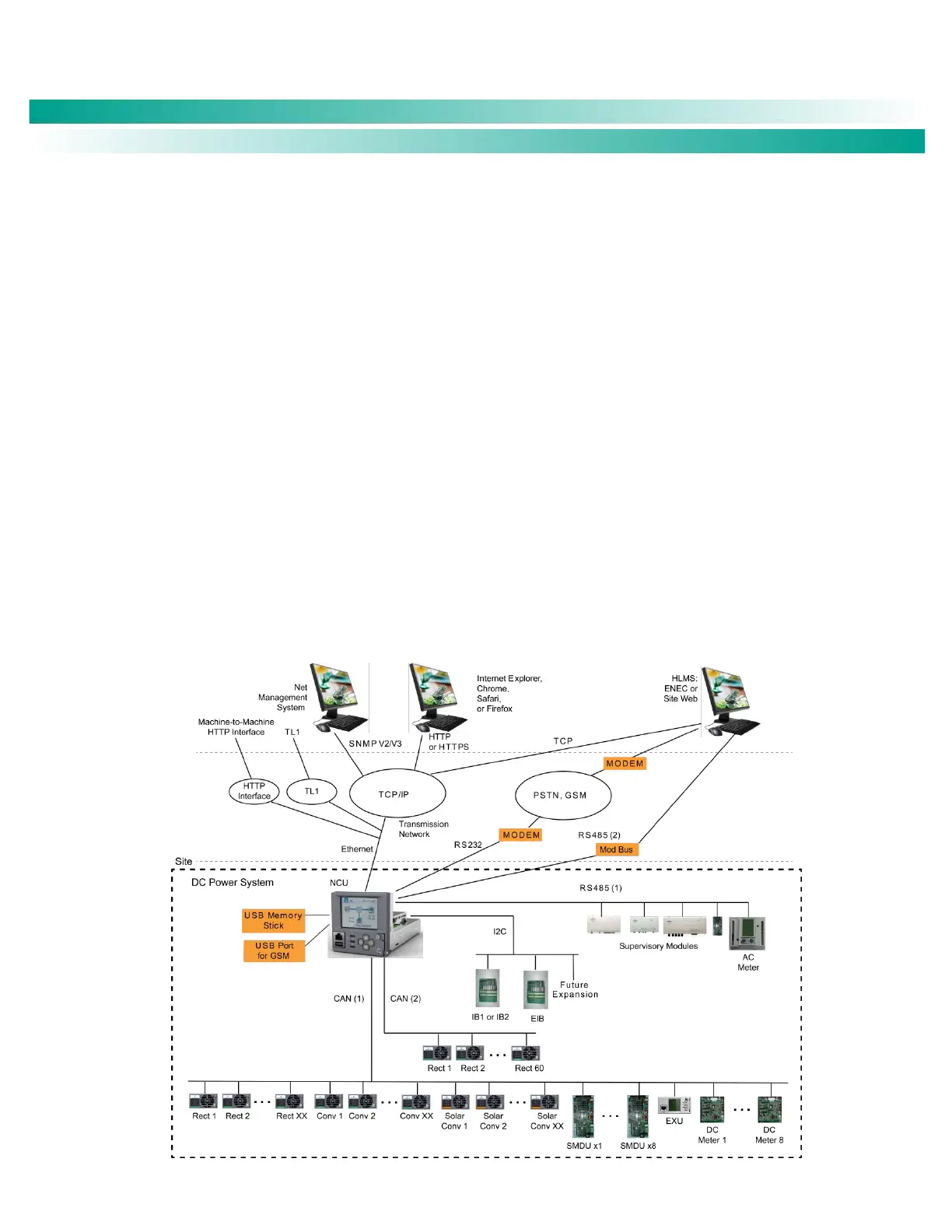

Figure 1 illustrates the various applications that can be used to
interface with the NCU.
Figure 1. Interfacing with the NCU
