Spec. No: 1M830BNA, 1M830DNA
Code: UM1M830BNA
Model No: M830B, M830D
Revision M, May 12, 2017
[
80
]

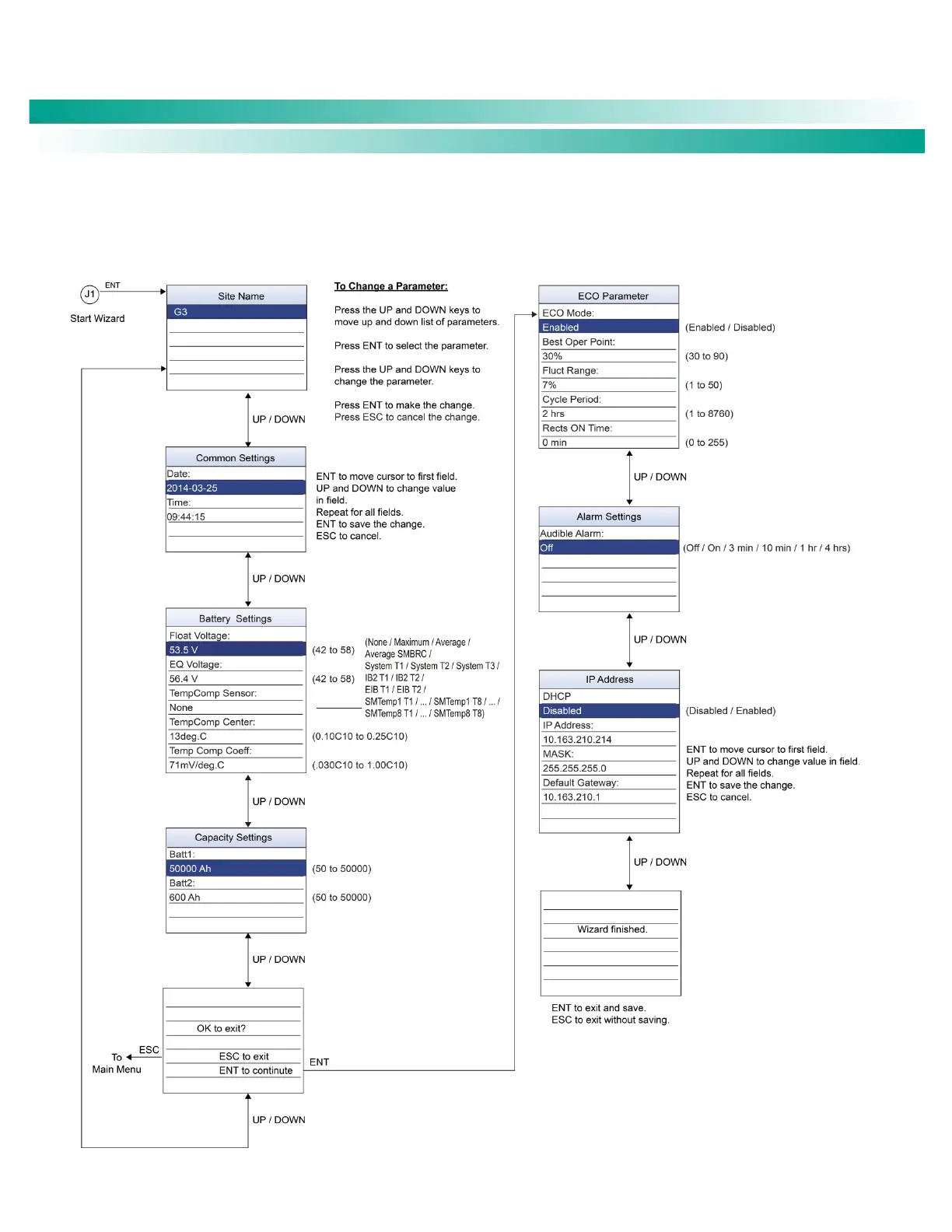

Start Wizard Sub-Menu (accessed from Settings Menu
)
The Start Wizard menu can be accessed from the Settings Menu
(in “Other Settings” sub
-
me
nu). See
Figure
15
for Start Wizard menu.
Figure
15
.
Start Wiz
ard Sub-Menu (accesse
d
from Setting's Menu)
89
91
