Operation
Local Indicators
Location and Identification: Refer to Figure 8.
Description: There are three (3) indicators located on the NCU’s front panel. Refer to Table 2 for the function of the indicators.

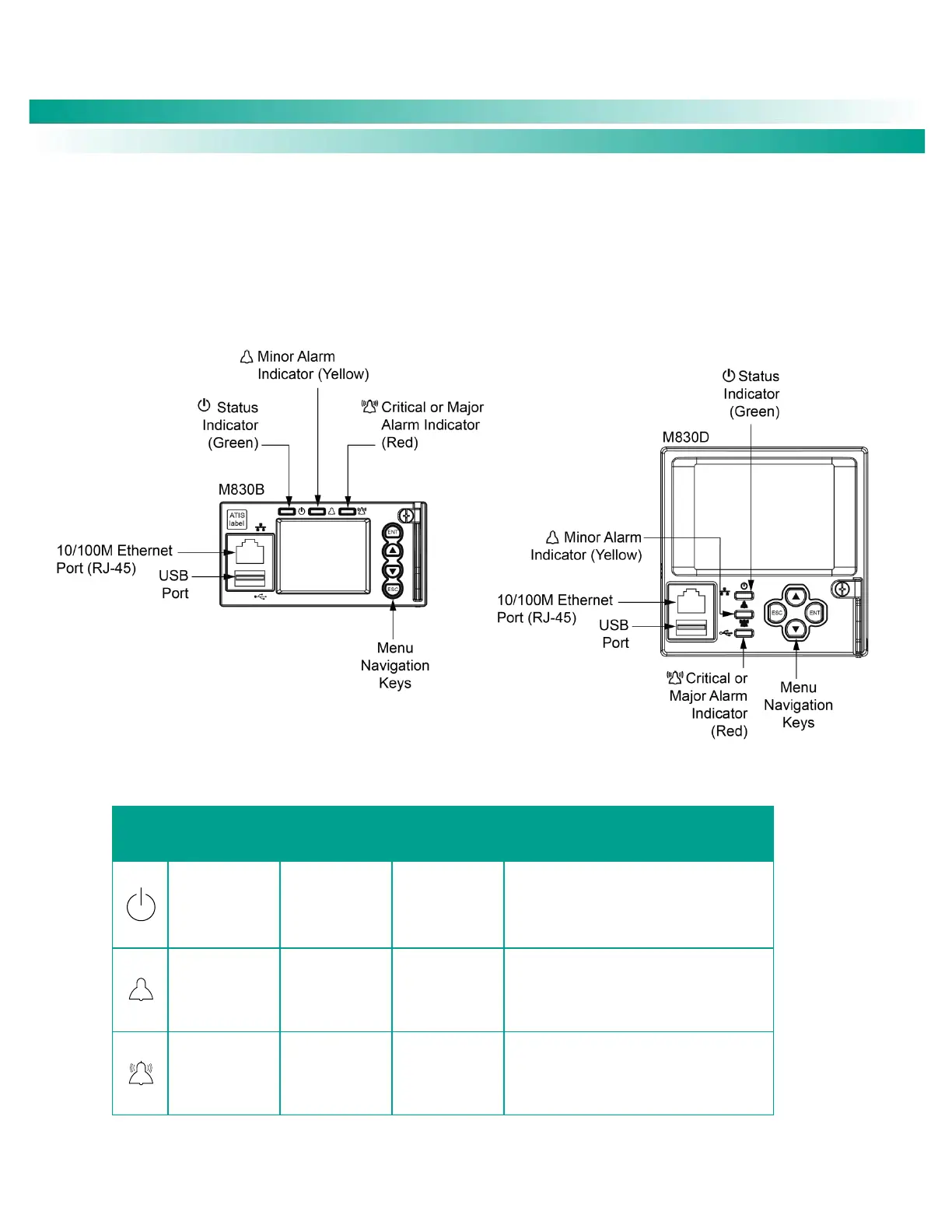

Figure 8. Local Indicators and Menu Navigation Keys Locations
Table 2. Local Indicators
Indicator
Normal State
Fault State
Fault Cause
Status
(Green)
On
Off
No input power to the NCU.
Minor Alarm
(Yellow)
Off
On
The system has one or more active Minor
alarms. Alarm conditions are
programmable.
Major or Critical
Alarm (Red)
Off
On
The system has one or more active Major or
Critical alarms. Alarm conditions are
programmable.
