NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
Module (Rectifier, Converter, Solar Converter) Device Group Status Page
Clicking on a rectifier, converter, or solar converter icon on the power system status block diagram opens up the status page for the
module’s Device Group. The Module Device Group status page contains multiple tabs (depending on the modules installed in your
power system). This includes Rectifier, Converter, and Solar Converter tabs.
Rectifier Device Group Status Page Tab
This tab displays status values such as “Total Current”, “Number of Rectifiers”, etc.

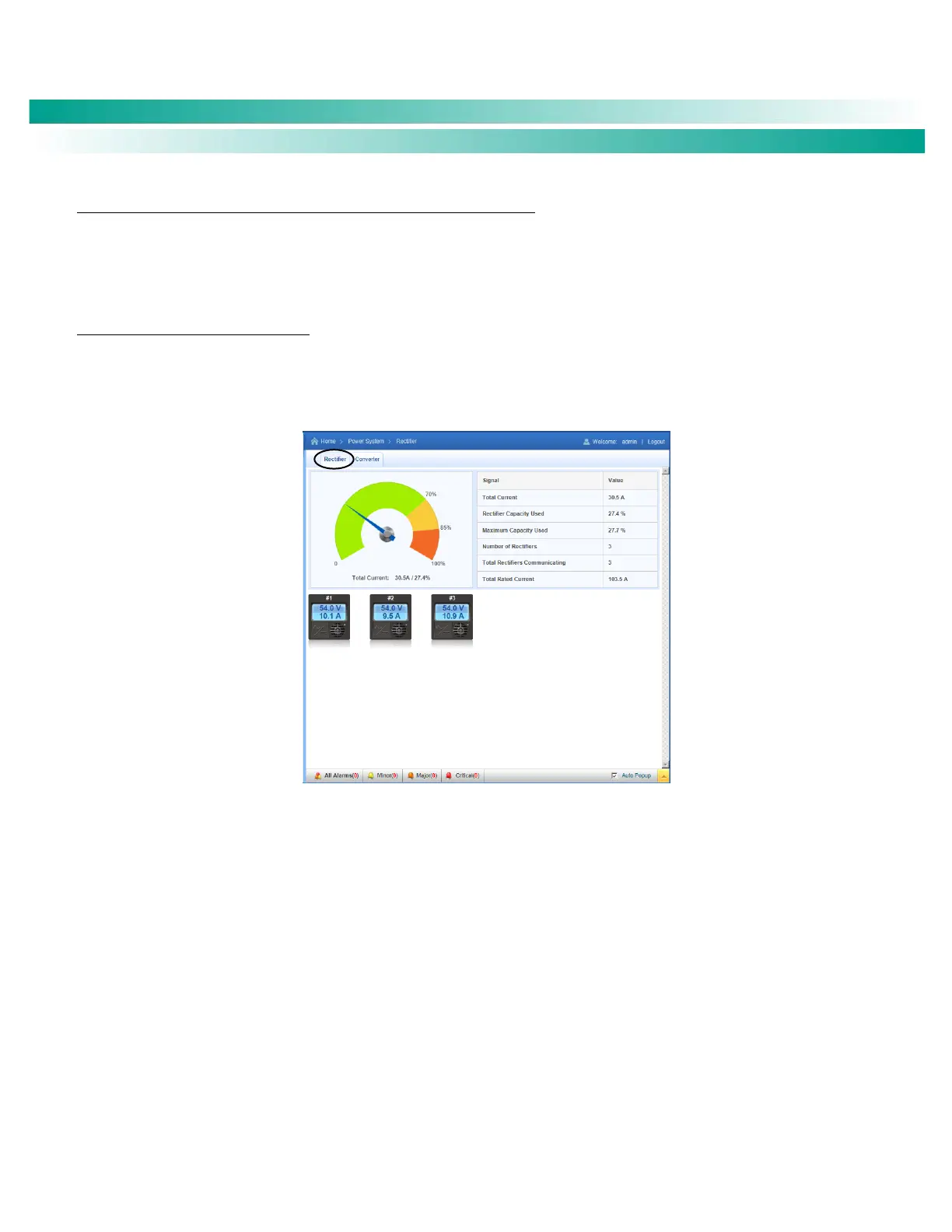

Figure 29. Rectifier Device Group Status Page Tab
