NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017

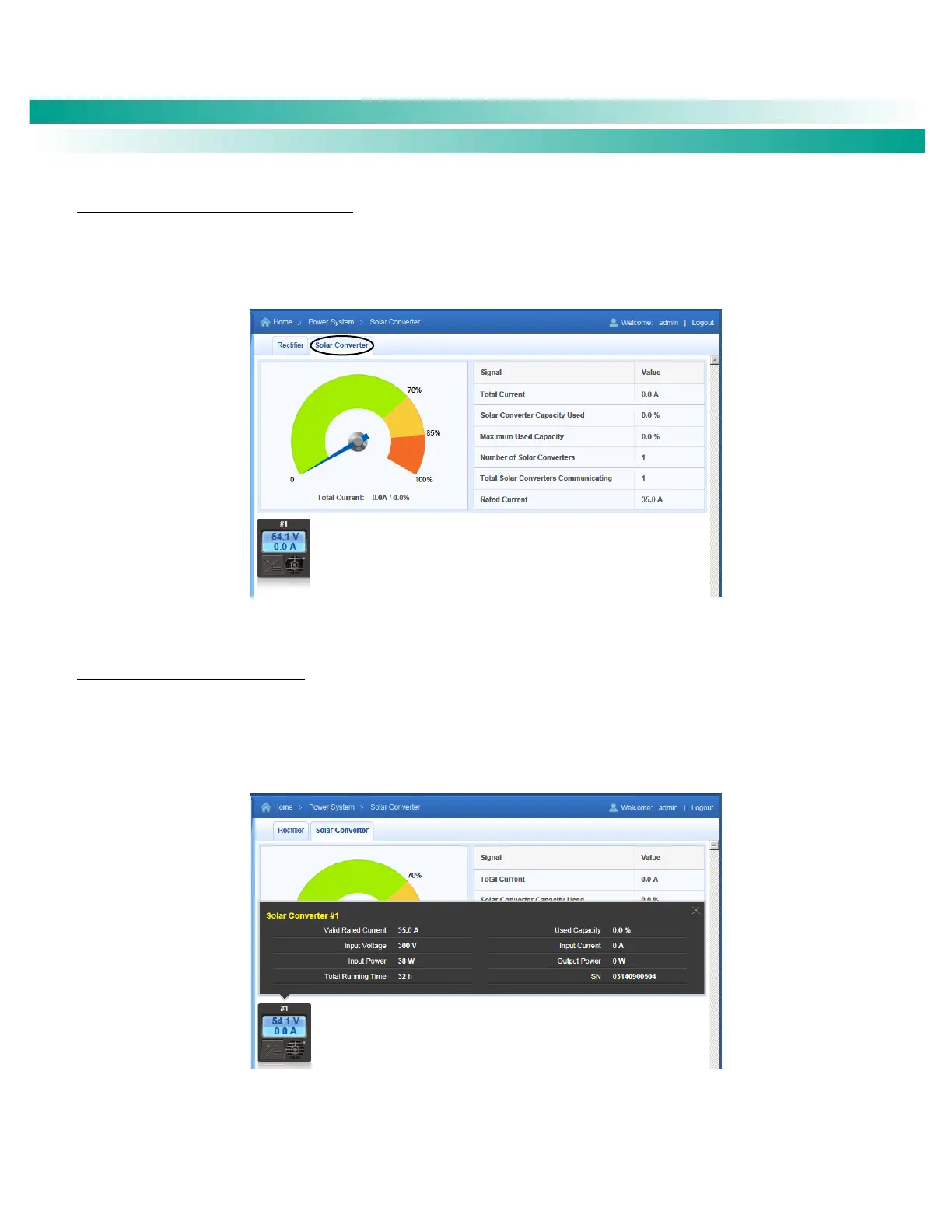

Solar Converter Device Group Status Page Tab
This tab displays status values such as “Total Current”, “Number of Solar Converters”, etc.
Figure 33. Solar Converter Device Group Status Page Tab
Individual Solar Converter Status Page
Displayed on the Solar Converter Device Group status page are the individual solar converters installed in the system. Click on an
individual solar converter icon to display its status such as "Input Current", "Output Power", etc.
Figure 34. Individual Solar Converter Status Page
