Vertiv M830D User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[158]
Procedure
1. To modify the digital input alarm parameters, click on the “Modify” button for that digital input alarm signal.
2. The following window opens.

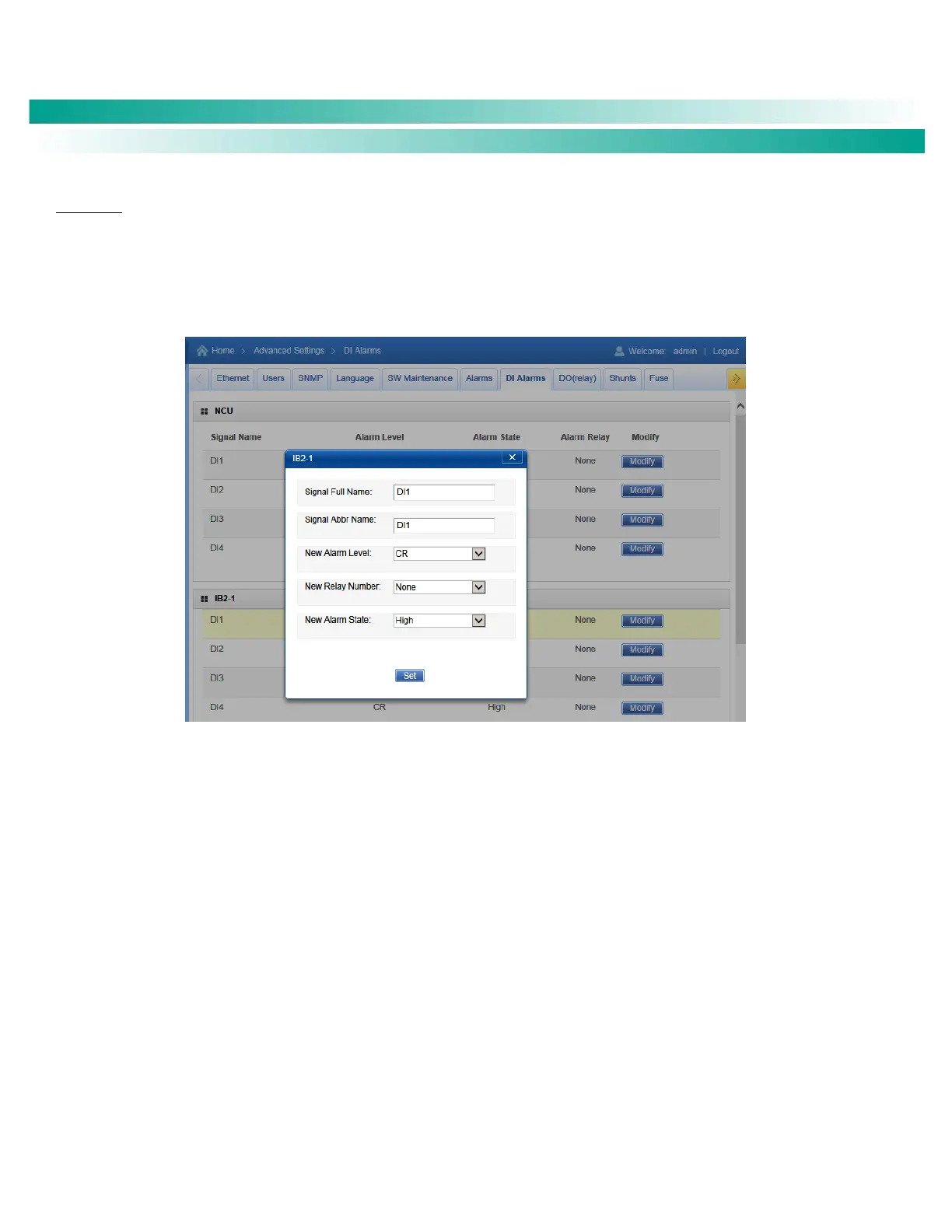

Figure 92. Setting DI Alarm
3. Change the following parameters as desired and click on “Set”.
 Signal Full Name: Name displayed in the Web Interface menus.
 Signal Abbr Name: Name displayed in the local display menus.
 New Alarm Level: Alarm level for this digital input alarm. (See also Table 1 on page 2.)
 New Relay Number: Select a relay number to map to this digital input alarm.
“None” means there is no related relay number.
 New Alarm State: Select high or low to set the alarm state for the digital input.
