4 Operation
4.1 Local Indicators
Four indicators are located on the front panel of each rectifier in the V200 Retrofit. The functions of these indicators are as shown in
Table 4.1. Refer to Figure 4.1 for the location and identification of the local indicators.
NOTE! DC voltage must be present at the V200 Retrofit output terminals, (from battery or an operating rectifier) for local
indicators to illuminate.

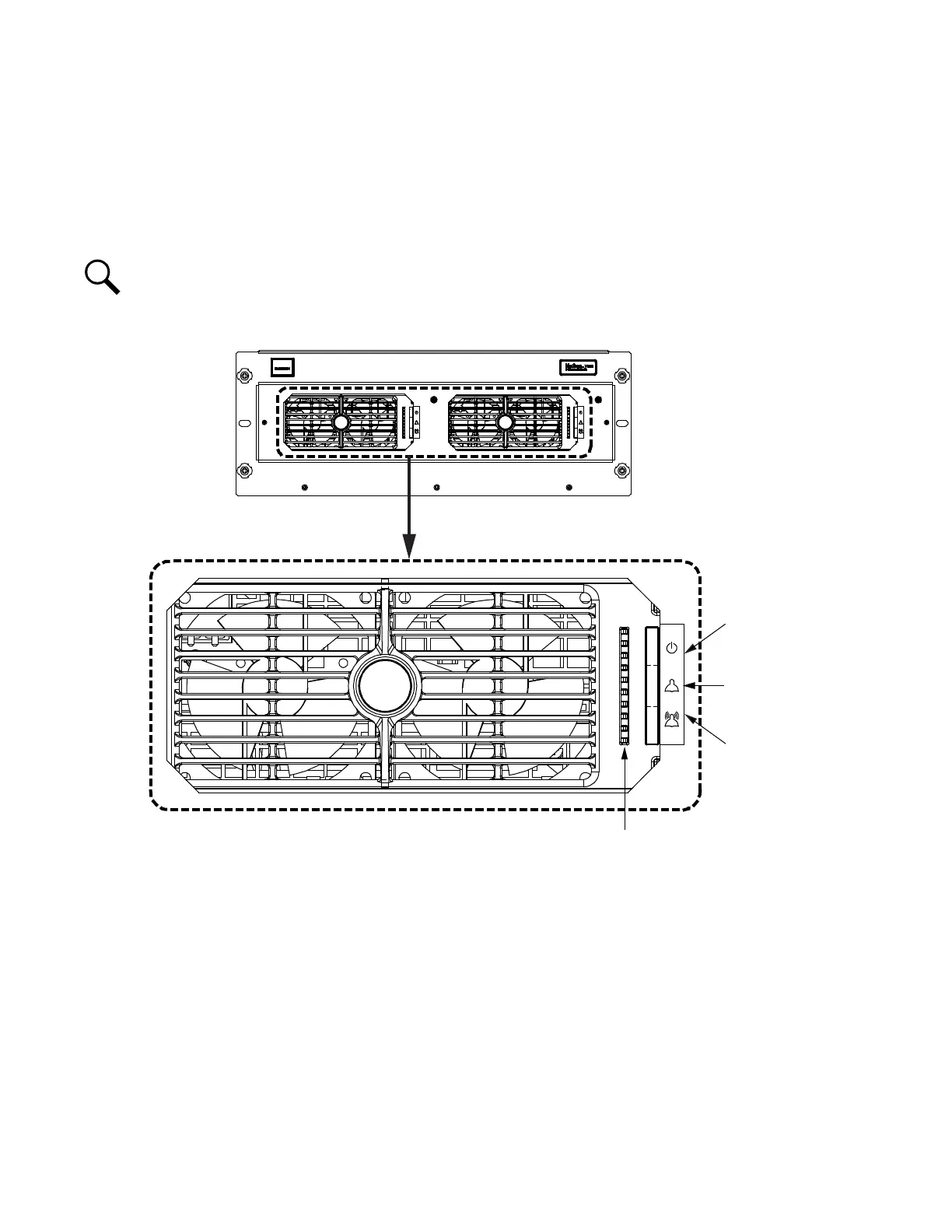

Figure 4.1 Status Indicators
Power
Indicator
(Green)
Protection
Indicator
(Yellow)
Fault
Indicator
(Red)
Output Current
Indicator
