2. Dismantle the C-pillar and D-pillar from the rear side.
NOTES:
• The direction of the pillar is correct as Figure 3-6 depicted.
• The distance between A-pillar and C-pillar (or between B-pillar and D-pillar) is 737 mm (29’’).
• The distance between C-pillar and D-pillar is 460 mm (18.1’’).

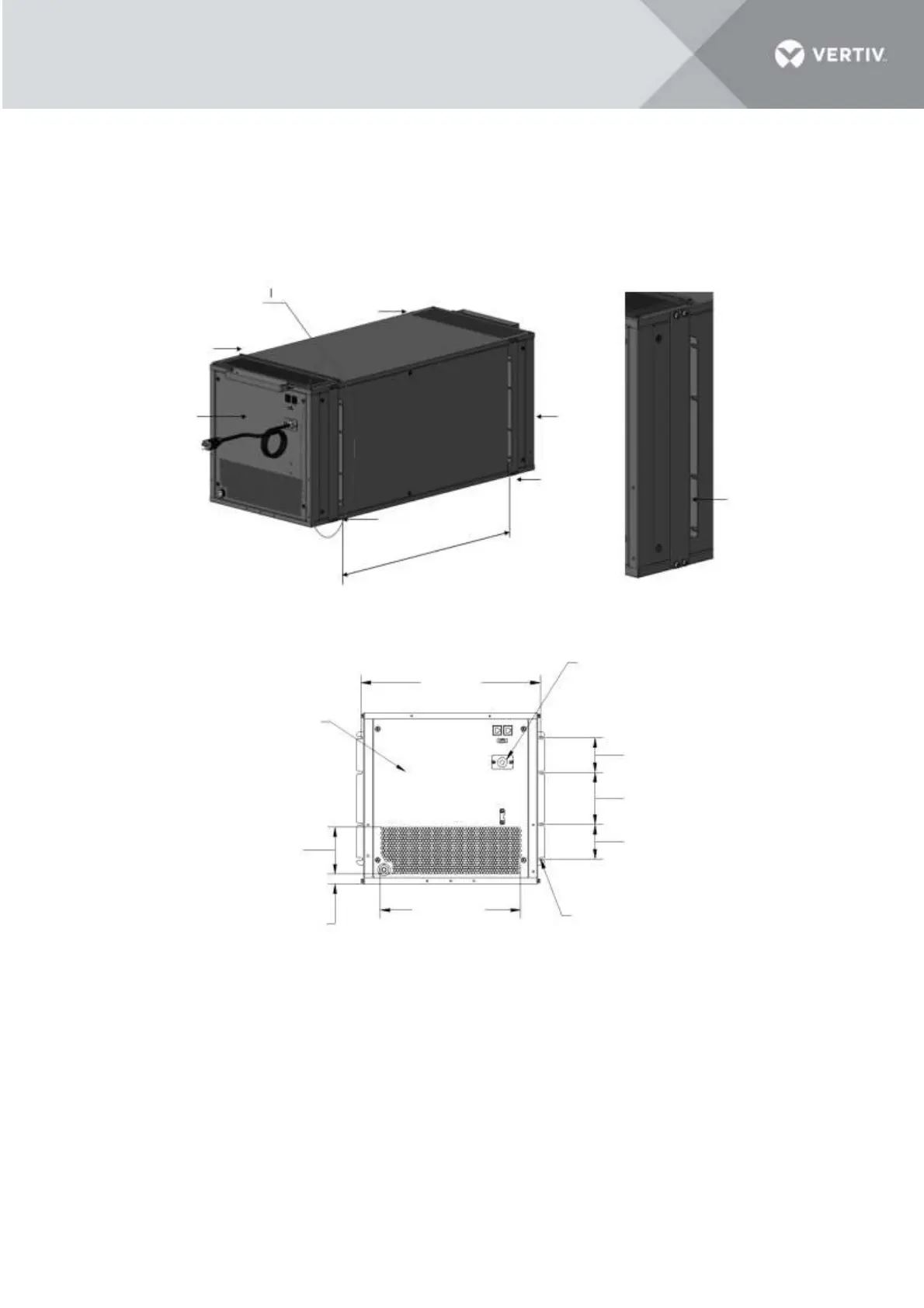

Figure 3-6 Right-side view
Figure 3-7 Back view
3. Use 2 lifting straps and VRC handles to slide in the unit inside the cabinet from the front side till the
B-pillar and the A-pillar are completely flushed against the cabinet 19’’ profiles. The distance from
front rails to front door is 121 mm (4.76’’).
