3.4.5 Installing the pump
1. The pump bracket is comprised of two parts, pump bracket 1 and pump bracket 2.

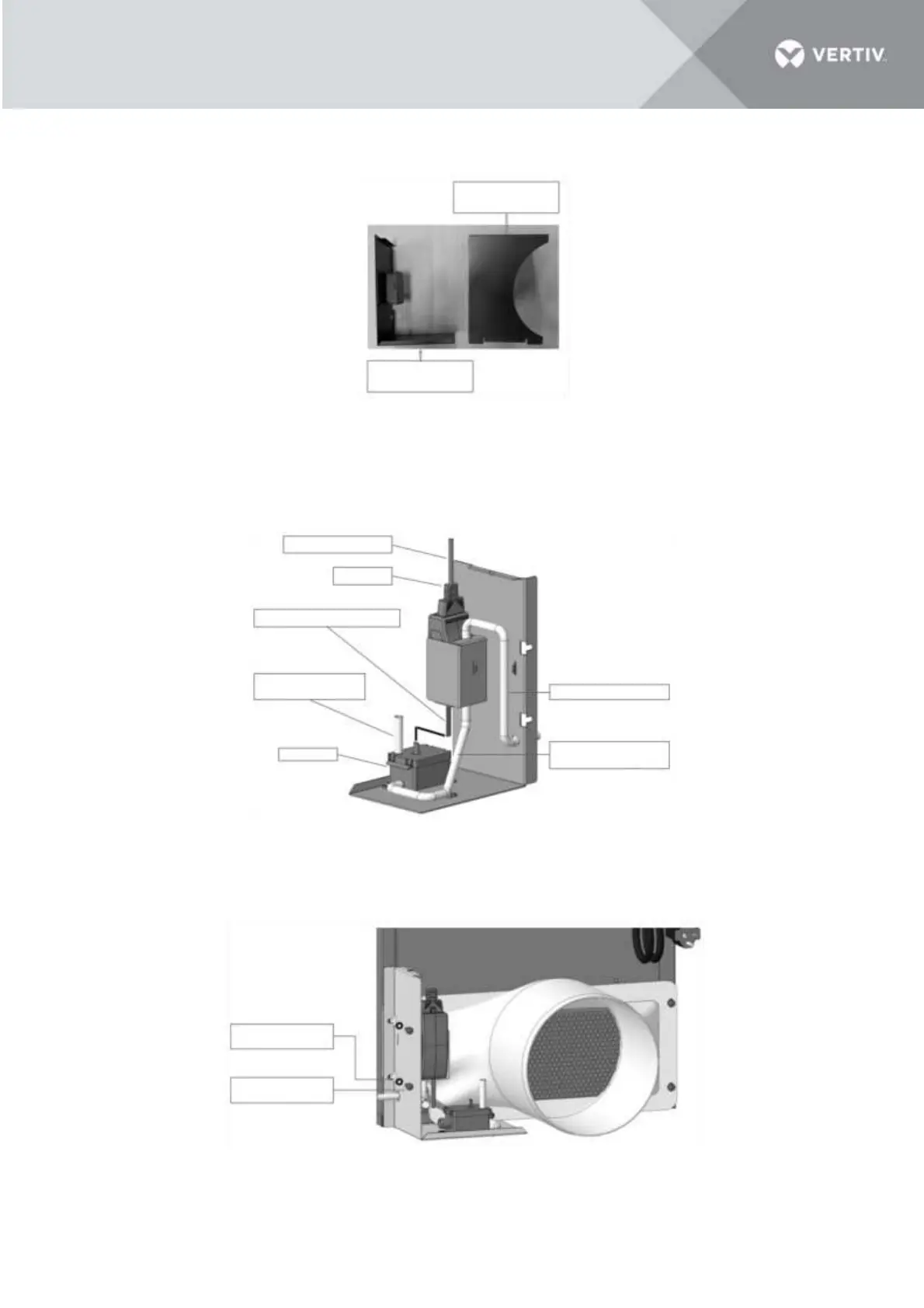

Figure 3-15 Pump bracket
2. Loose the screw and remove the pump bracket part 2 from the pump bracket part 1. The pump is
pre-installed on the pump bracket part 1 in factory.
Figure 3-16 Pump is pre-installed on the bracket 1
3. Install the pump bracket part 1 on the condensing air discharge side of the VRC1, tightened by two
pan-head screws with contact washer (M5 x 12). Torque=4.0 Nm (2.95 lb-ft).
Figure 3-17 Install the pump bracket part 1 on the unit
