6. Remove the Aspirator Manifold Assembly (A) (Figure 8-39):
l Disconnect the tube (B) as shown in 8.4.5. Press the collar around the tube inwards and gently pull
the tube outwards. The tube cannot be disconnected if the collar is not pushed inward evenly.

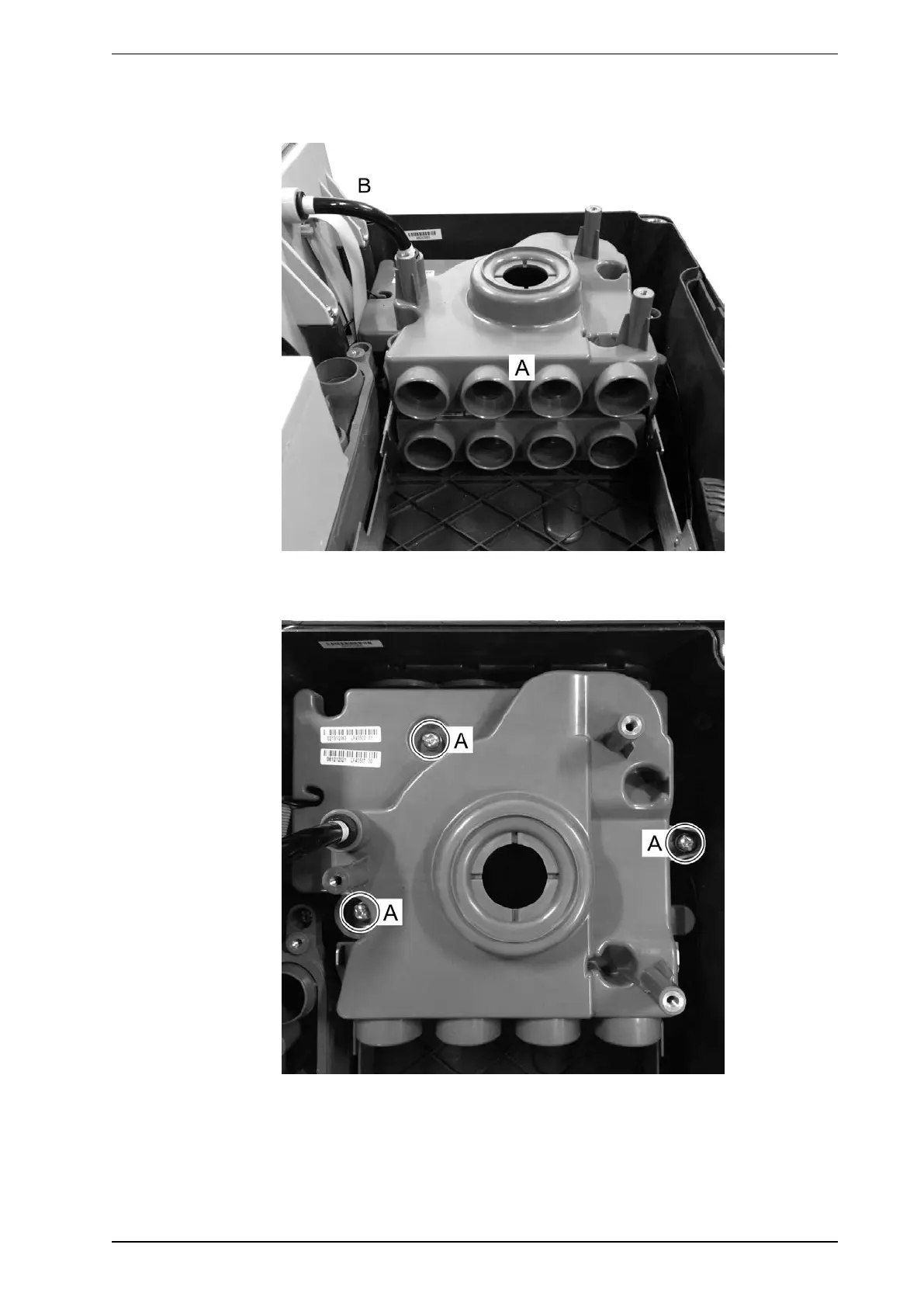

Figure 8-39: Ultrasonics Manifold Removal
l Remove 3 screws (A) as shown in Figure 8-40.
Figure 8-40: Remove Screws
