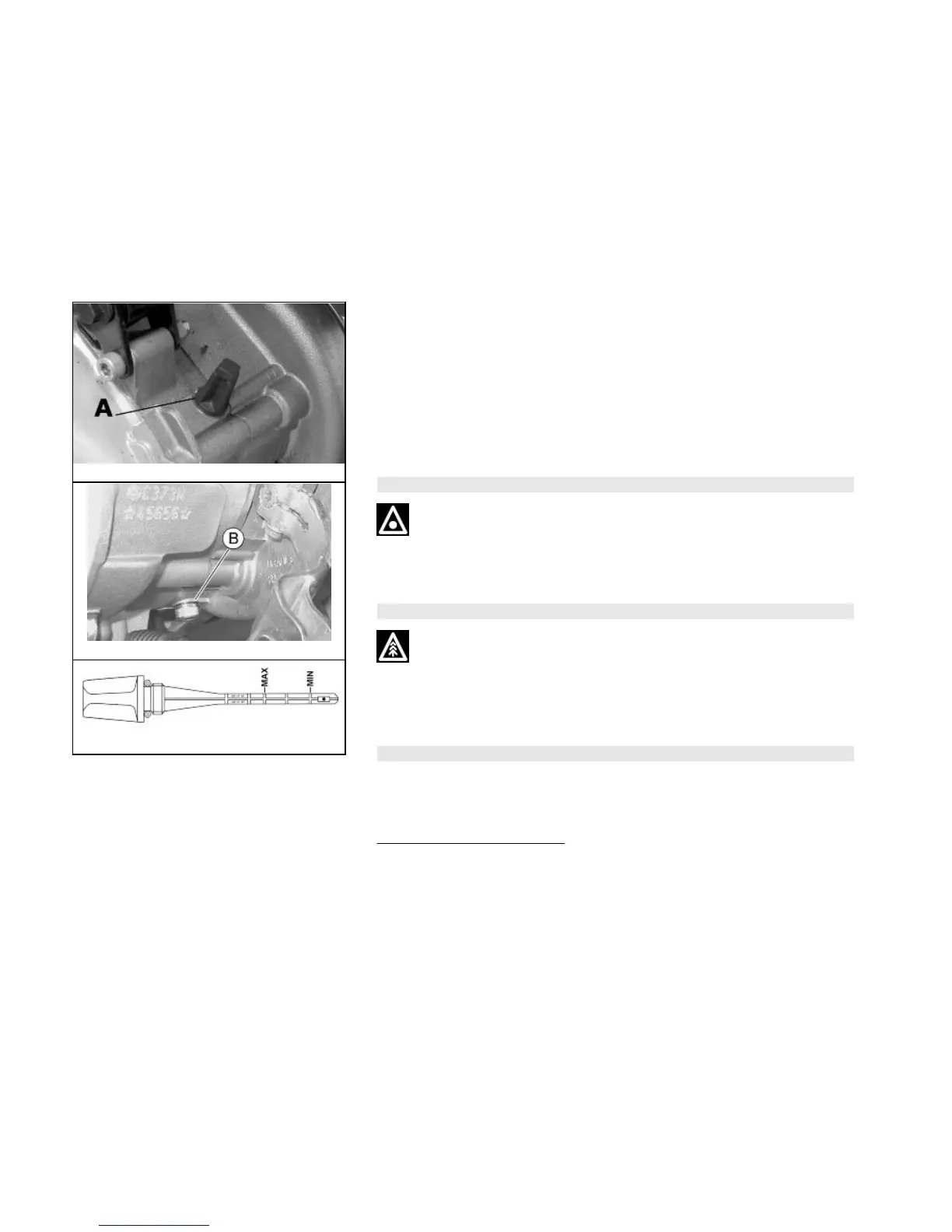

Hub oil level (03_04, 03_05, 03_06)
To check the hub oil level, proceed as follows:
1. Place the scooter on its stand on a level surface;
2. Unscrew the dipstick «A», dry it with a clean rag and then reinsert it, screw-
ing it tightly into place;
3. Unscrew the dipstick again and check that the oil level barely reaches the
2nd notch from the bottom;
4. Screw the dipstick back into place completely.
The screw «B» is the hub oil drainage tap.
CAUTION
USING THE ENGINE WITH INSUFFICIENT LUBRICATION OR WITH THE WRONG
LUBRICANTS MAY INCREASE WEAR AND TEAR ON THE MOVING PARTS AND
MAY CAUSE SERIOUS DAMAGE.
CAUTION
USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR
OIL REPLACEMENT, CONTACT AN AUTHORISED SERVICE CENTRE, WHICH
IS EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIEND-
LY AND LEGAL WAY.
N.B.
THE NOTCHES ON THE HUB OIL LEVEL DIPSTICK, EXCEPT THOSE INDICAT-
ING THE MAXIMUM AND MINIMUM LEVELS, REFER TO OTHER MODELS BY
THE MANUFACTURER, AND HAVE NO SPECIFIC FUNCTION FOR THIS MODEL.
Recommended products
AGIP ROTRA 80W-90
Rear hub oil
